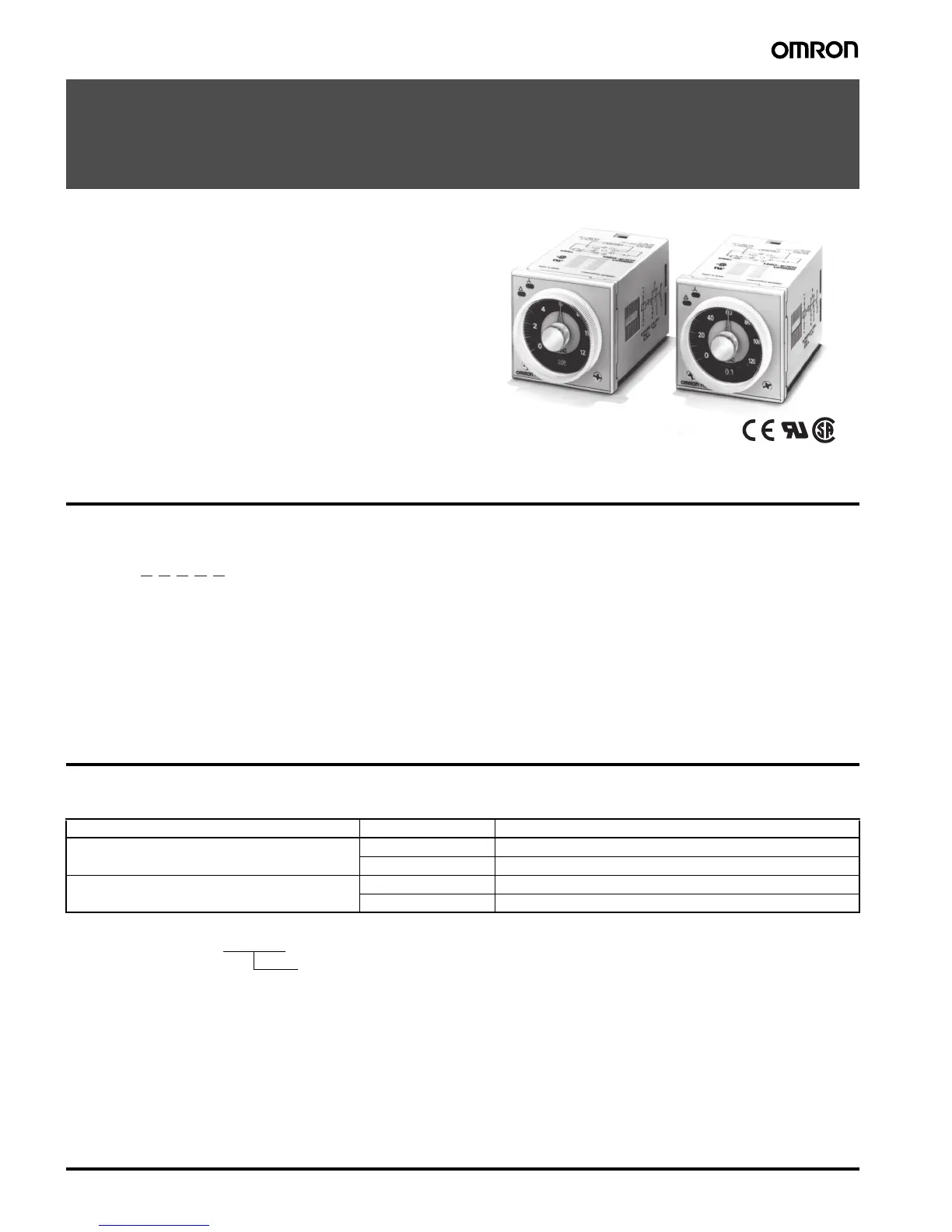

30 Solid-state Star-delta Timer H3CR-G
Solid-state Star-delta Timer
H3CR-G
DIN 48 × 48-mm Star-delta Timer
• A wide star-time range (up to 120 seconds) and star-delta trans-
fer time range (up to 0.5 seconds).
Model Number Structure
■ Model Number Legend
Ordering Information
■ List of Models
Outputs Supply voltage 8-pin models
Time-limit contact 100 to 120 VAC H3CR-G8L 100-120AC
200 to 240 VAC H3CR-G8L 200-240AC
Time-limit contact and instantaneous contact 100 to 120 VAC H3CR-G8EL 100-120AC
200 to 240 VAC H3CR-G8EL 200-240AC
H3CR - G 8 @ L @
1 2 3 4 5
1. Classification
G: Star-delta timer
2. Configuration
8: 8-pin socket
3. Outputs
4. Dimensions
L: Long-body model
5. Supply Voltage
100-120AC: 100 to 120 VA
C
200-240AC: 200 to 240 VA
C
None: Star-delta operation contact
E: Star-delta operation contact
and instantaneous contact
Note: Specify both the model number and supply voltage when ordering.
Example: H3CR-G8L 100-120AC
Supply voltage

Omron H3CR Specifications

General

Output Type	Relay
Time Range	0.05 seconds to 300 hours
Contact Form	SPDT
Number of Pins	8
Operating Temperature	-10°C to 55°C
Storage Temperature	-25°C to 65°C
Operating Voltage	12-240V AC/DC
