36 Solid-state Star-delta Timer H3CR-G

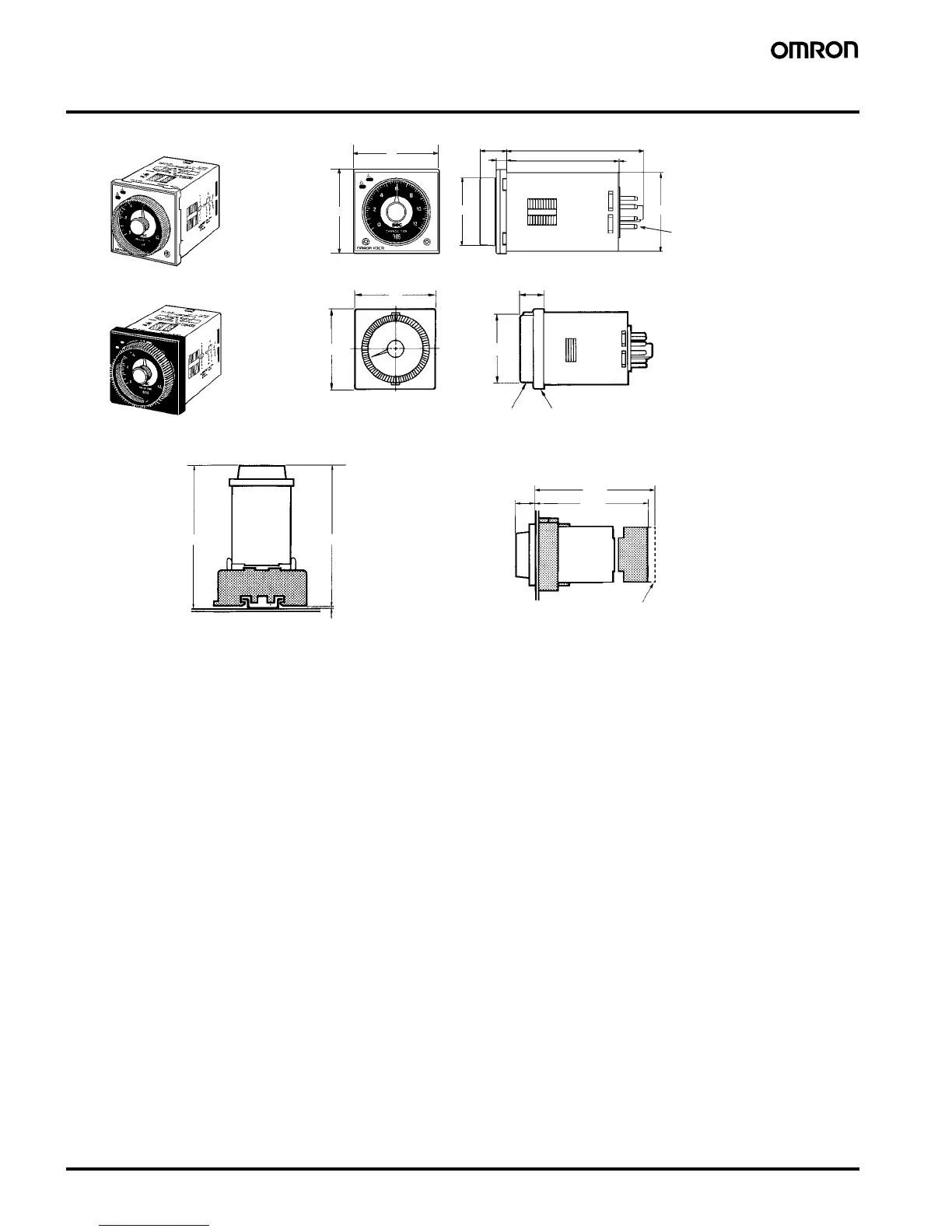

Dimensions
Note: All units are in millimeters unless otherwise indicated.
15
6
(78.0)
63.7
44.8 × 44.8
0.7
48
48
39 dia.
8 pins
50
16.5
50
Dimensions with Set Ring
Time settin
g
rin
g
Panel cover
42 dia.
101.3*
99
2.3
*
15
86.4
92.9
Y92F-30
P3G-08
H3CR-G8@L
*These dimensions vary with the kind of DIN track (reference value).
Dimensions with Front Connecting Socket
P2CF-08-@
P2CF-08
P2CF-08-E
Dimensions with Back Connecting Socket
P3G-08
H3CR-
G8@L
(When
Y92A-48G
mounted)

Omron H3CR Specifications

General

Output Type	Relay
Time Range	0.05 seconds to 300 hours
Contact Form	SPDT
Number of Pins	8
Operating Temperature	-10°C to 55°C
Storage Temperature	-25°C to 65°C
Operating Voltage	12-240V AC/DC
