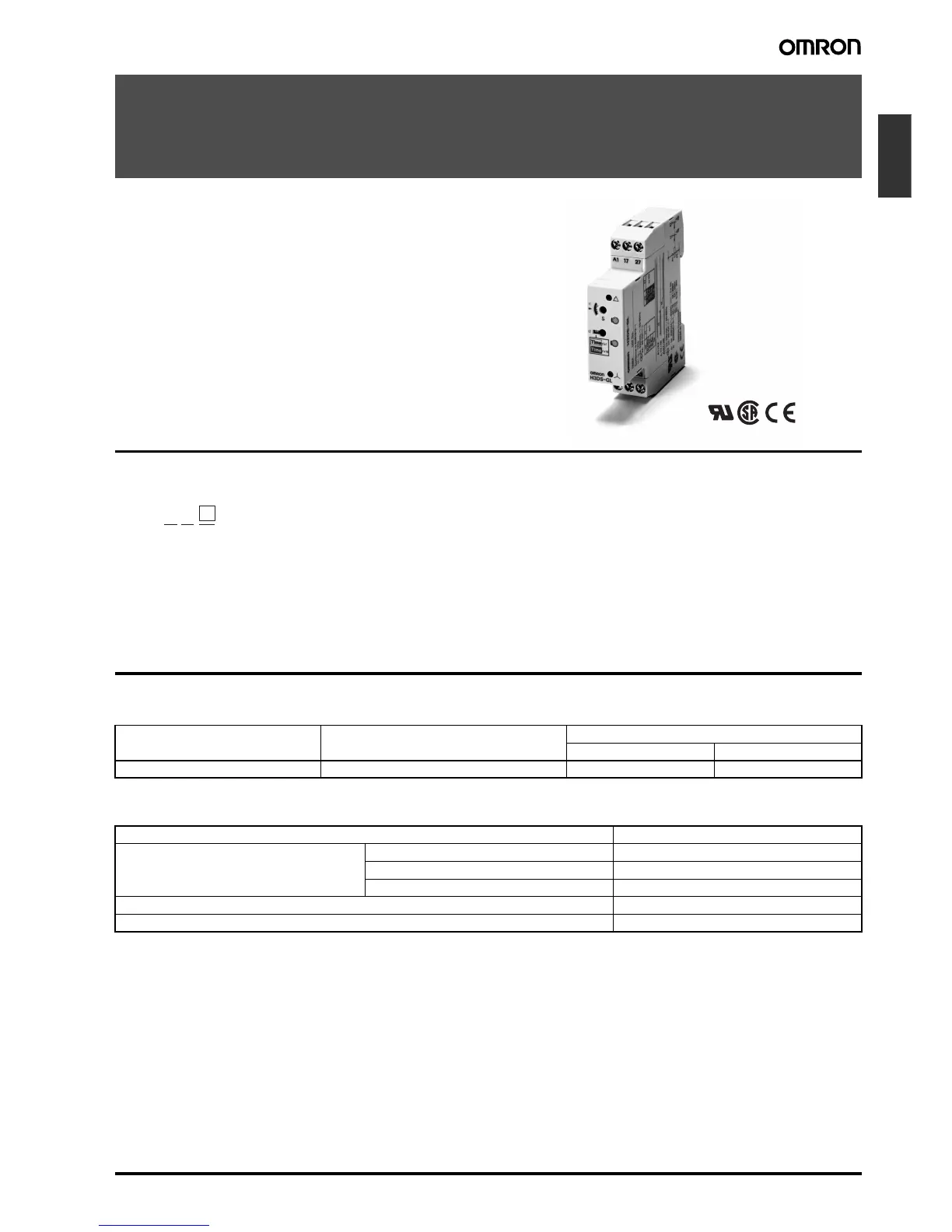

Omron H3DS - Solid-state Star-delta Timer H3 DS-G; Model Number Structure; Ordering Information

Solid-state Star-delta Timer H3DS-G B-31
Timers
Solid-state Star-delta Timer
H3DS-G
• A wide star-time range (up to 120 seconds) and star-delta trans-
fer time range (up to 1 second)
Model Number Structure
■ Model Number Legend
Ordering Information
■ List of Models
■ Accessories (Order Separately)
1 2 3
H3DS -G L
1. G: Star-delta timer
2. L: Smart lock mechanism
3. None: Screw terminal type
C: Screw-Less Clamp type
Operating mode Supply voltage Model
Screw terminal type Screw-Less Clamp type
Star-delta operation 24 to 230 VAC (50/60 Hz)/24 to 48 VDC H3DS-GL H3DS-GLC
Lock Key Y92S-38
Mounting Track 50 cm (l) x 7.3 mm (t) PFP-50N
1 m (l) x 7.3 mm (t) PFP-100N
1 m (l) x 16 mm (t) PFP-100N2
End Plate PFP-M
Spacer PEP-S
