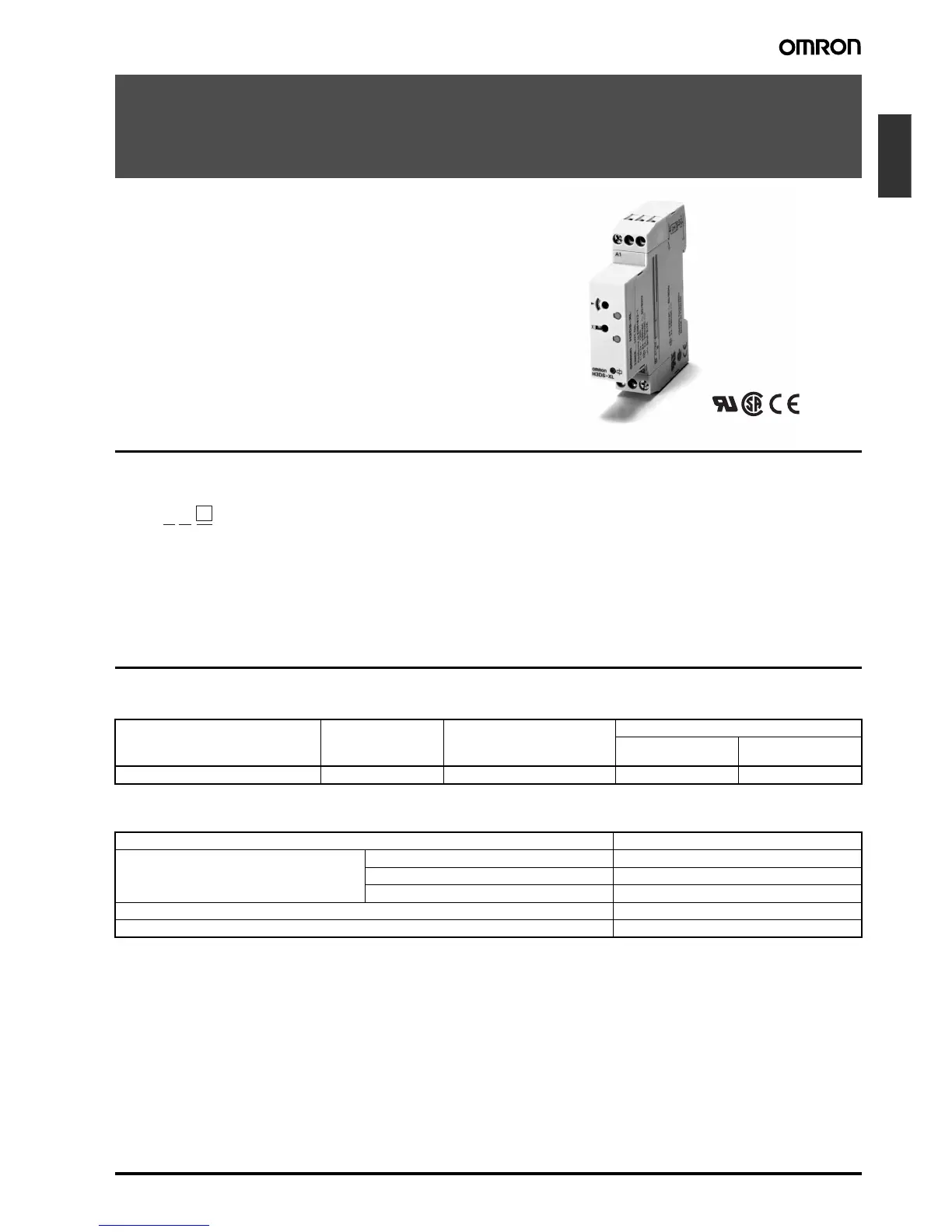

Solid-state Two-wired Timer H3DS-X B-39
Timers
Solid-state Two-wired Timer
H3DS-X
• Covers wide range of supply voltage
(24 to 230 VAC/VDC).
Model Number Structure
■ Model Number Legend
Ordering Information
■ List of Models
■ Accessories (Order Separately)
1 2 3
H3DS -X L
1. X: Two-wired timer
2. L: Smart lock mechanism
3. None: Screw terminal type
C: Screw-Less Clamp type
Supply voltage Input type Operating mode Model
Screw terminal type Screw-Less Clamp
type
24 to 230 VAC/VDC (50/60 Hz) No-input available ON-delay H3DS-XL H3DS-XLC
Lock Key Y92S-38
Mounting Track 50 cm (l) x 7.3 mm (t) PFP-50N
1 m (l) x 7.3 mm (t) PFP-100N
1 m (l) x 16 mm (t) PFP-100N2
End Plate PFP-M
Spacer PEP-S
