Omron H5CR series User Manual

H5CR H5CR
4

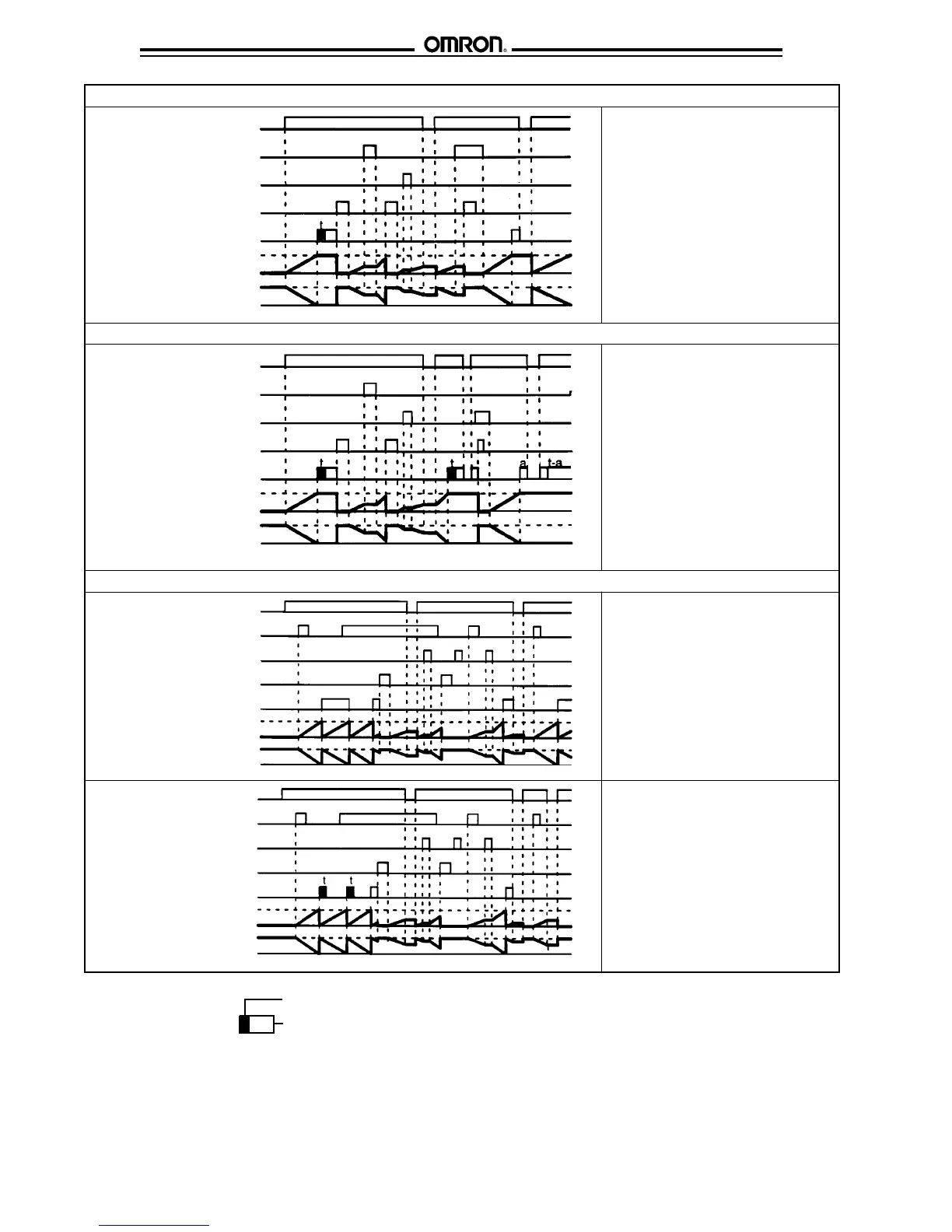

Output mode A-2: Power ON delay 1 (Timer resets when power comes on.)
Timing begins when power is applied.
Start signals act as a gate input,
causing the present value to hold. The
control output will be energized when
the present value equals the preset
time. The output will be sustained until
a reset signal is applied, until power is
interrupted, or for a programmable
one-shot time period.
Output mode B: Repeat cycle 1 (Timer resets when power comes on.)
The OFF/ON cycle is initiated at the
leading edge of the start signal. The
control output will be OFF for the first
cycle. In subsequent cycles the output
will be ON for the programmable one-
shot time period, then OFF for the
remainder of the preset time. The cycle
will be repeated until a reset input is
applied or power is interrupted.
The OFF/ON cycle is initiated at the
leading edge of the start signal. The
output relay will be OFF for the preset
time, then ON for the preset time. The
cycle will be repeated until a reset input
is applied or power is interrupted.
Timing begins when power is applied.
Start signals act as a gate input, causing
the present value to hold. The control
output will be energized when the
present value equals the preset time.
The output will be sustained until a reset
signal is applied or for a programmable
one-shot time period. If power to the unit
is interrupted, the control output will be
de-energized. The output will re-
energize once power is restored.
Power
Start signal
Gate
Reset
Control output
Set value
UP 0
Set value
DOWN 0
Timing
diagram
Power
Start signal
Gate
Reset
Control output
Set value
UP 0
Set value
DOWN 0
Timing
diagram
Power
Start signal
Gate
Reset
Control output
Set value
UP 0
Set value
DOWN 0
Timing
diagram
Power
Start signal
Gate
Reset
Control output
Set value
UP 0
Set value
Timing
diagram
Sustained output
One-shot
One-shot outputs can be set to 0.1 s, 0.5 s, 1 s, 5 s, 10 s,
and 20 s.
a = one-shot time before power interruption
t-a = remaining one-shot time after power interruption
Output mode A-3: Power ON delay 2 (Timer does not reset when power comes on.)
DOWN 0
