H5CR H5CR
5

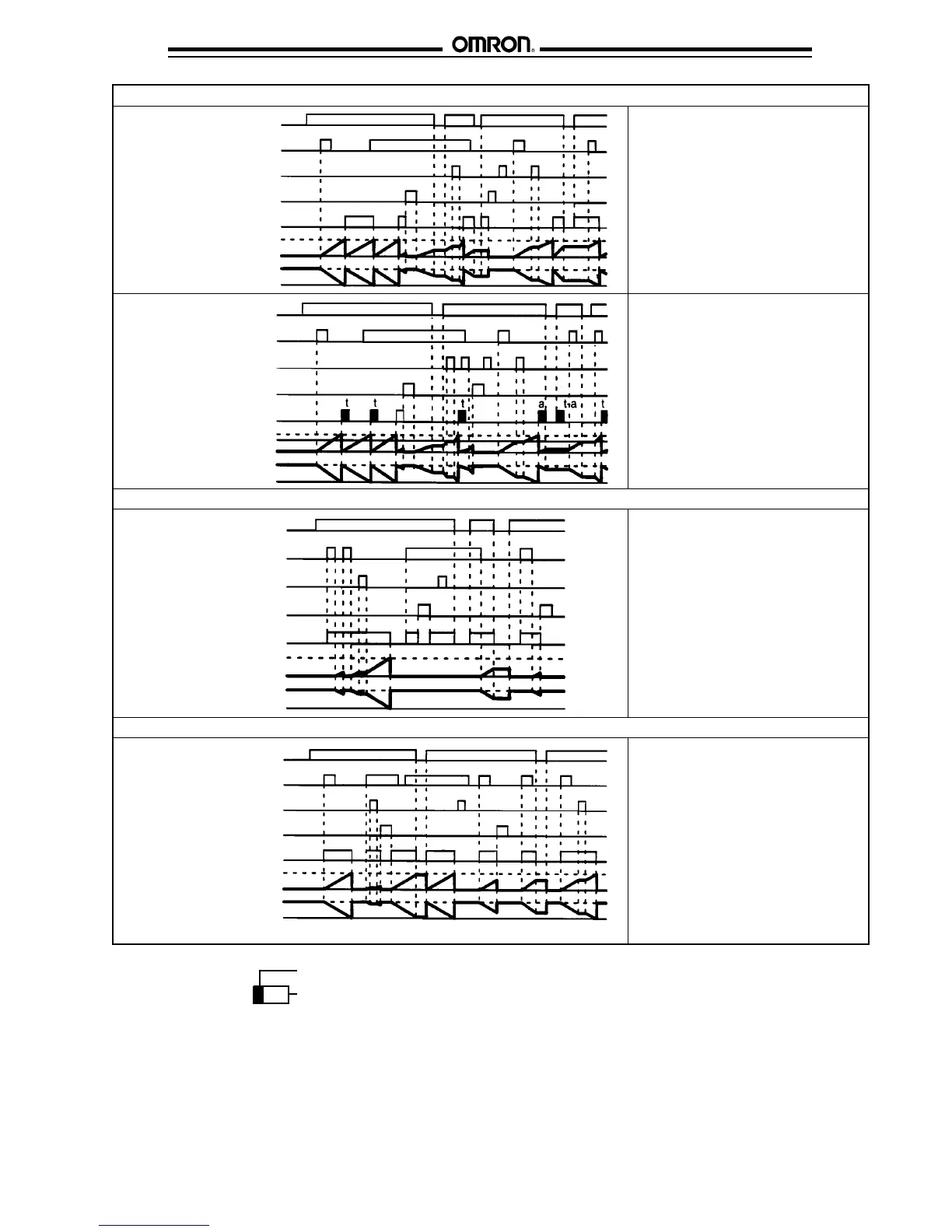

Output mode E: Interval (Timer resets when power comes on.)
Timing begins on the leading edge of the
start signal. The control output is only
energized during timing. The timer is
reset when power is interrupted or a
reset signal is applied.
The OFF/ON cycle is initiated at the
leading edge of the start signal. The
output relay will be OFF for the preset
time, then ON for the preset time. The
cycle will be repeated until a reset input
is applied. If power to the unit is
interrupted, the present value will hold.
The cycle will continue from that point
once power is restored.
The OFF/ON cycle is initiated at the
leading edge of the start signal. The
control output will be OFF for the first
cycle. In subsequent cycles the output
will be ON for the programmable one-
shot time period, then OFF for the
remainder of the preset time. The cycle
will be repeated until a reset input is
applied. If power to the unit is
interrupted, the present value will hold.
The cycle will continue from that point
once power is restored.
Output mode D: Signal OFF delay (Timer resets when power comes on.)
The control output is energized at the
leading edge of the start signal. Timing
begins at the trailing edge of the start
signal. The control output is de-
energized when the present value equals
the preset time.
Start signal
Gate
Reset
Control output
Set value
UP 0
DOWN 0
Set value
Timing
diagram
Start signal
Gate
Power
Reset
DOWN 0
Set value
UP 0
Control output
Set value
Timing
diagram
Power
Start signal
Gate
Reset
DOWN 0
Set value
UP 0Timing
diagram
Set value
Control output
Power
Start signal
Gate
Reset
Control output
Set value
UP 0
Set value
DOWN 0
Timing
diagram
Sustained output
One-shot
One-shot outputs can be set to 0.1 s, 0.5 s, 1 s, 5 s, 10 s,
and 20 s.
a = one-shot time before power interruption
t-a = remaining one-shot time after power interruption
Output mode B-1: Repeat cycle 2 (Timer does not reset when power comes on.)
