Omron H5CX-L User Manual

10 Multifunction Digital Timer H5CX-A/-L

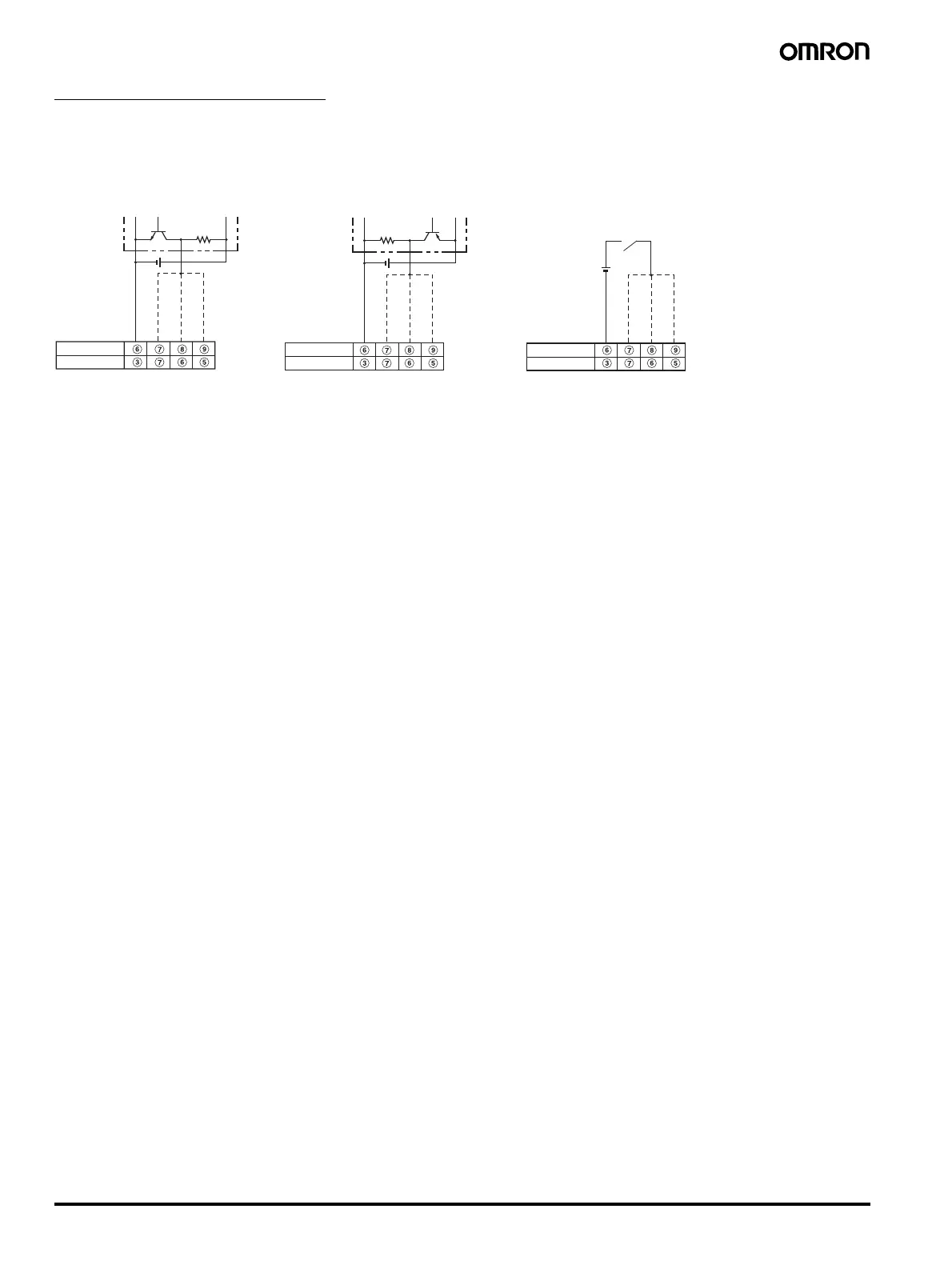

Voltage Inputs (PNP Inputs)
Voltage Input Signal Levels
High level (Input ON): 4.5 to 30 VDC
Low level (Input OFF): 0 to 2 VDC
Input resistance: Approx. 4.7 k
W
Note: The DC voltage must be 30 VDC max.
0 V
0 V 0 V
Contact Input
No-contact Input
(NPN Transistor)
Operate with transistor OFF
Operate with transistor ON
Operate with relay ON
No-contact Input
(PNP Transistor)
Signal input
Gate input
Reset input
Input
H5CX-A
@
H5CX-A11
@
Sensor
Sensor
Signal input
Gate input
Reset input
Input
H5CX-A
@
H5CX-A11
@
Signal input
Gate input
Reset input
Input
H5CX-A
@
H5CX-A11
@
(Connection to NPN open
collector output sensor)
(Connection to PNP open
collector output sensor)
