Operating Procedures
Setting Procedure Guide
Settings for Timer Operation
*
Use the following settings.
Settings for Twin Timer Operation
*
Refer to page 22.
* At the time of delivery, the H5CZ is set to the Timer configuration. Refer to page 25 for information on switching models.

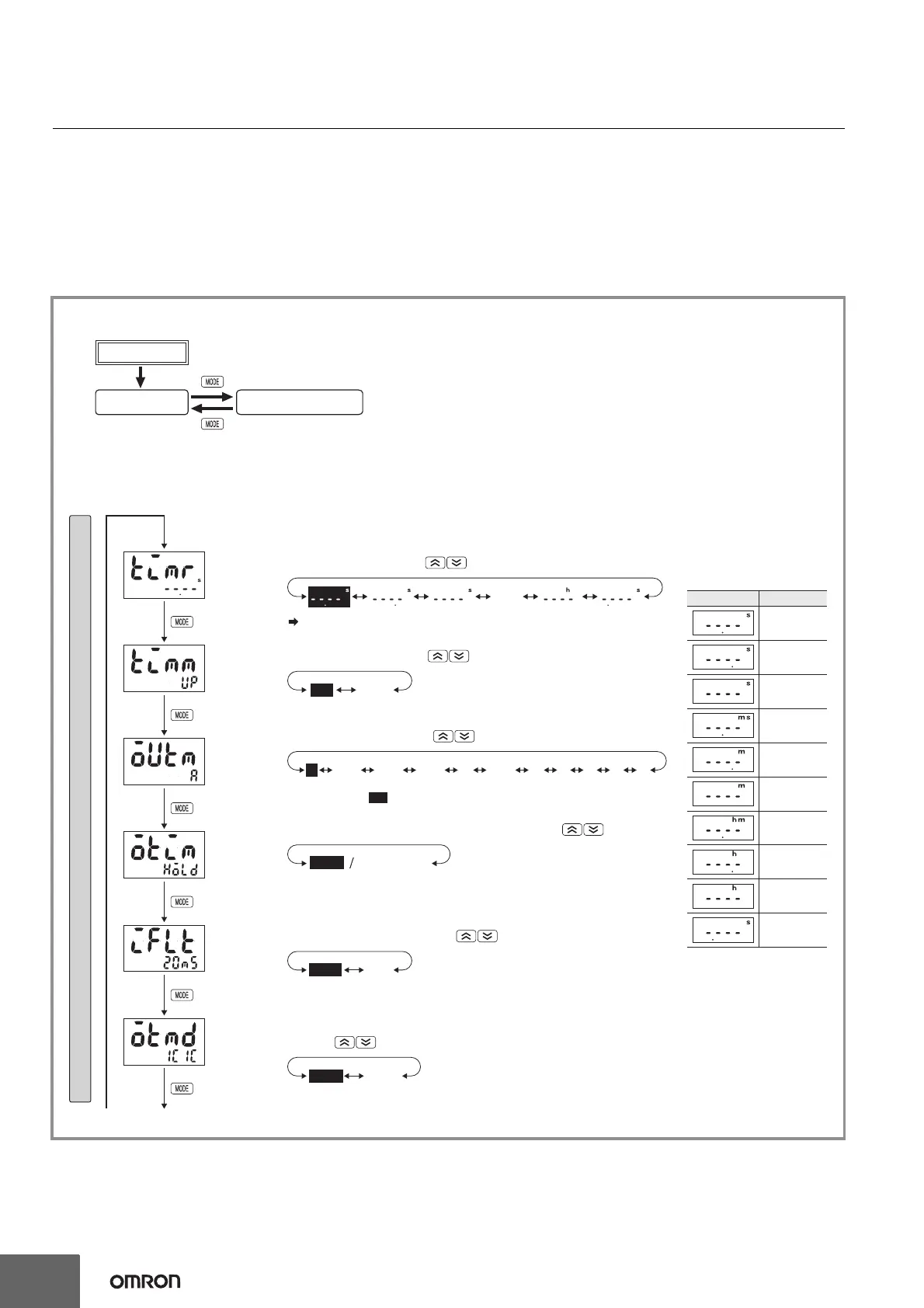

Operating Procedures for Timer Function
Run mode
Power ON
Function setting mode
 Set the time range using the keys.
 Set the timer mode using the keys.
 Set the output mode using the keys.
 Set the input signal width using the keys.
 Set the function (instantaneous or time-limit operation) for the instantaneous output (output 1)
using the Keys.
 Set each digit for the output time using the corresponding keys.
For details, refer to the Time Range List.
(If the output time is set to 0.00, is displayed.)
*1. If the mode is switched to the function setting mode during operation, operation will continue.
*2. Changes made to settings in function setting mode are enabled for the first time when the mode is changed to run mode.
Also, when settings are changed, the timer is reset (time initialized and output turned OFF).
Display Set Value
Time Range List
0.01 s to 99.99 s
(default setting)
0.1 s to 999.9 s
1 s to 9999 s
0 min 01 s to
99 min 59 s
0.1 min to
999.9 min
1 min to
9999 min
0 h 01 min to
99 h 59 min
0.1 h to 999.9 h
1 h to 9999 h
0.001 s to
9.999 s
~
Time range
Timer mode
Output modes
Output time
Input signal
width
Instantaneous/
time-limit
To next pageFrom next page
(DOWN)(UP)
(1ms)(20ms)
(A-1) (A-2) (A-3) (b-1)(b) (d) (E) (F) (S)(Z)(A)
(0.01s) (99.99s)(Output hold)
Note: Displayed for modes A, A-1, A-2, A-3, b, b-1 and S only.
Note: Only modes A-2, b, E, and Z can be selected for models with instantaneous
contact outputs.
Note: Displayed only for models with instantaneous contact outputs.
3 s min.
*2
3 s min.
*1
The characters displayed in reverse video are the default settings.
(Instantaneous) (Time-limit)
• Change to Function Setting Mode.
Note: Not displayed for models with instantaneous contact outputs.
Function setting mode
……
20ms 1ms
2c1c1c
downup
za-1a a-2
99.990.01hold
hold
a-3 b b-1 d e f s
For details on operations in run mode, refer to page 15.
