Twin Timer
Setting Procedure Guide

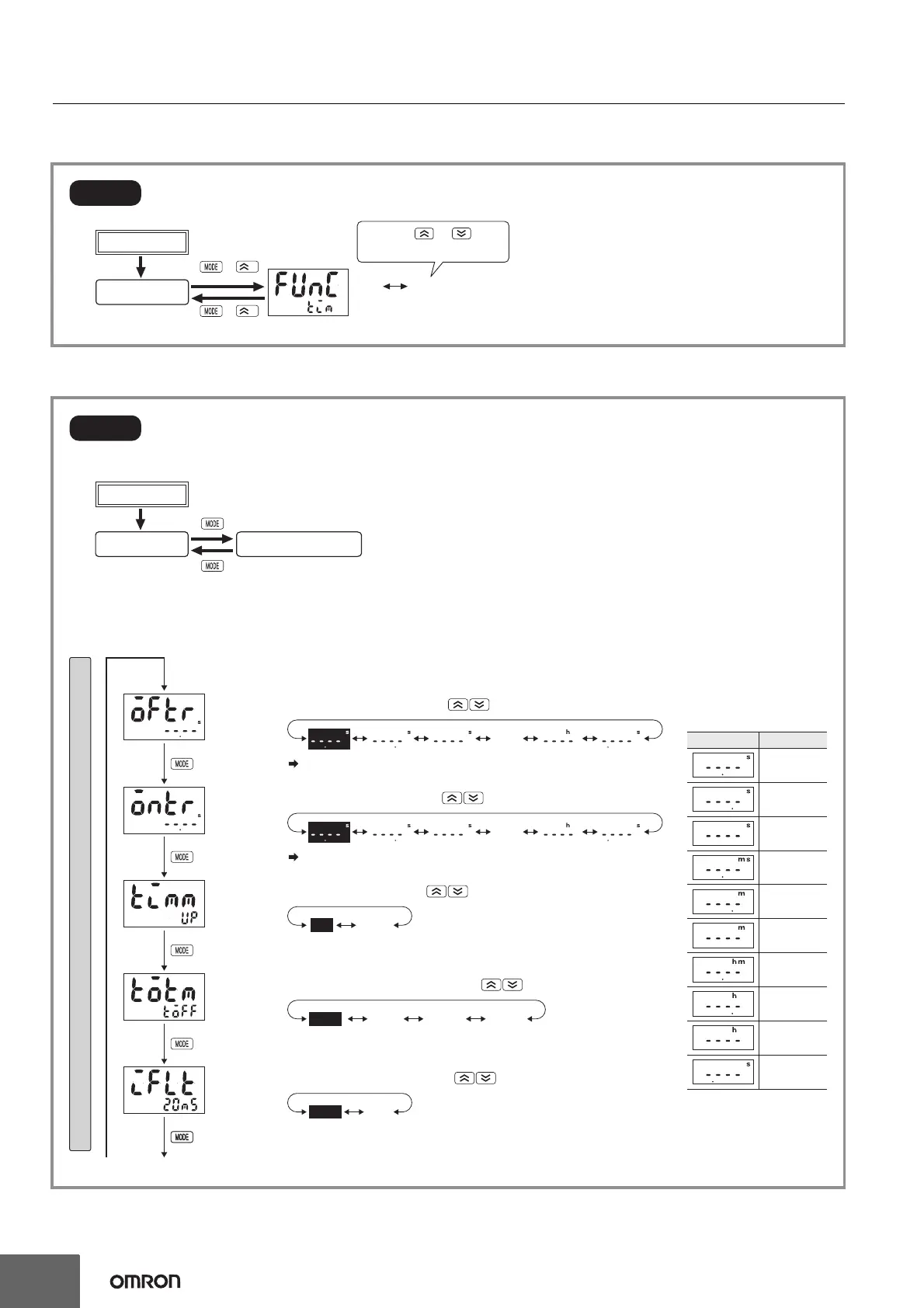

Operating Procedures for Twin Timer Function
To switch to twin timer operation, use the procedure given below. For details, refer to page 27.
Hold down for 1 s min.
Hold down for 1 s min.
Timer
Press the or Key to
switch to a Twin Timer.
Twin timer
Run mode
Power ON
Timer/twin timer
selection mode
1
+
1
+
tim
Step1
Switching to a Twin Timer
twn
Run mode
Power ON
Function setting mode
From next pageTo next page
(1 ms)(20 ms)
3 s min.
*2
3 s min.
*1
Step2
(DOWN)(UP)
OFF time
range
ON time
range
Timer mode
Twin timer
output mode
Input signal
width
( ) ( ) ( ) ( )
Flicker
OFF start 1
Flicker
On Start 1
Flicker
OFF start 2
Flicker
On Start 2
Note: Not displayed for models with instantaneous contact outputs.
Note: Only Flicker OFF Start 1 or Flicker ON Start 1 can be selected for the H5CZ-L8E@.
20ms
up down
1ms
toff ton tof1 ton1
……
……
For details, refer to Time Range List.
For details, refer to Time Range List.
The characters displayed in reverse video are the default settings.
• Change to Function Setting Mode.
Function setting mode
 Set the OFF time range using the keys.
 Set the ON time range using the keys.
 Set the timer mode using the keys.
 Set the twin timer output mode using the keys.
 Set the input signal width using the keys.
*1. If the mode is switched to the function setting mode during operation, operation will continue.
*2. Changes made to settings in function setting mode are enabled for the first time when the mode is changed to run mode.
Also, when settings are changed, the timer is reset (time initialized and output turned OFF).
Display Set Value
Time Range List
0.01 s to 99.99 s
(default setting)
0.1 s to 999.9 s
1 s to 9999 s
0 min 01 s to
99 min 59 s
0.1 min to
999.9 min
1 min to
9999 min
0 h 01 min to
99 h 59 min
0.1 h to 999.9 h
1 h to 9999 h
0.001 s to
9.999 s
For details on operations in run mode, refer to page 24.
