Timer/Twin Timer Selection Mode (Configuration Selection)
Select whether the H5CZ is used as a timer or a twin timer in timer/twin timer selection mode.
1
+
1
twn
1
1
tim
KeyKey
1 s min.
*1. When the mode is changed to timer/twin timer selection mode, the present value is reset and output turns OFF.
Timing operation is not performed in timer/twin timer selection mode.
*2. Setting changes made in timer/twin timer selection mode are enabled when the mode is changed to run mode.
If settings are changed, the HC5Z is automatically reset (present value initialized, output turned OFF).
Power ON
Timer/Twin
timer selection
Caution
Run mode
Timer/Twin Timer
Selection Mode
*2 *1

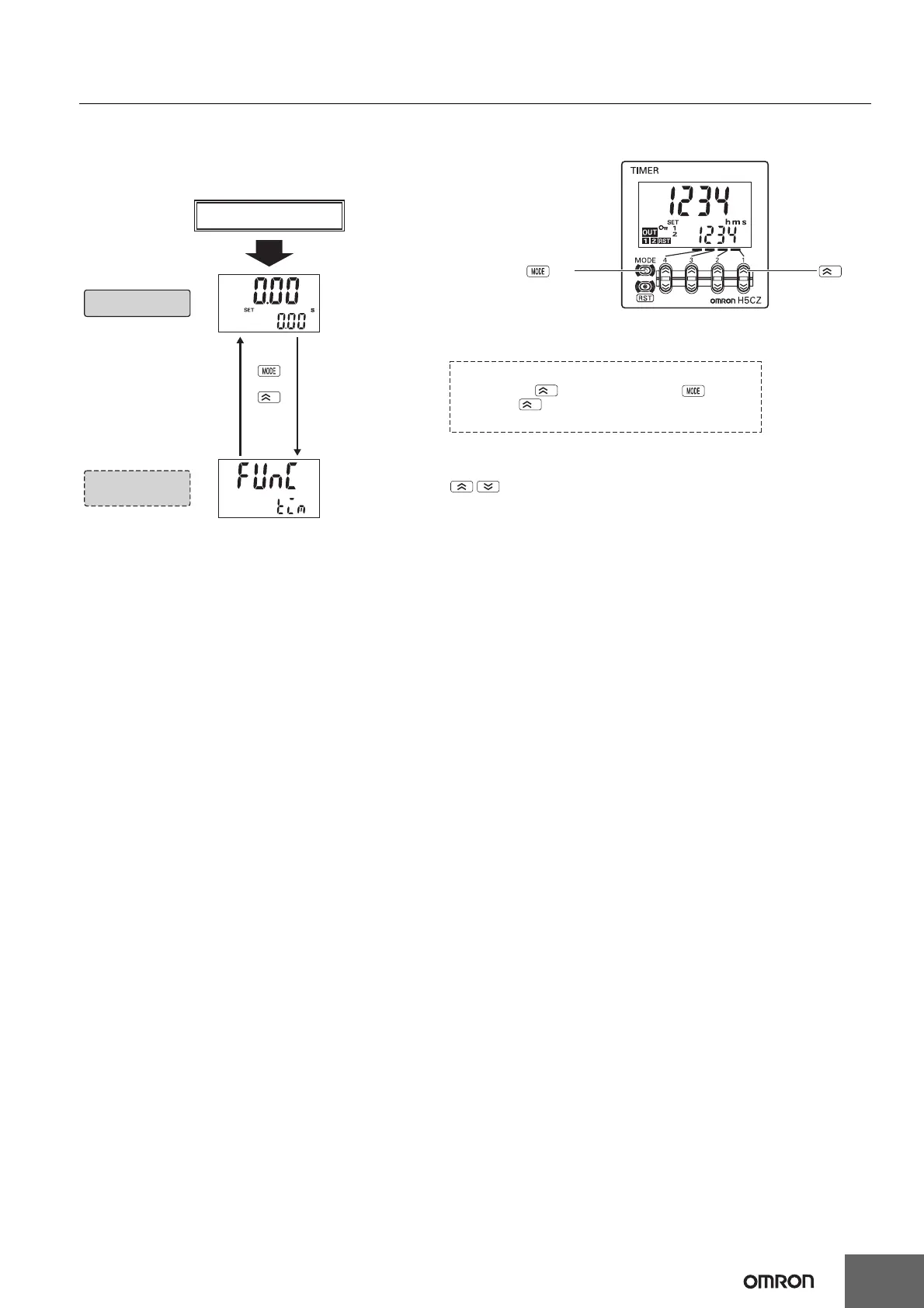

To change the mode to timer/twin timer selection mode,
hold down the key for 1 s min. with the key held
down. The key must be pressed before the key. If the
key is pressed first, the mode will not change.
Select either timer operation or twin timer operation using the
keys.
Note: The H5CZ is factory-set for timer operation.
