Timing Charts
■
Count Output Modes
In the timing charts below, “A” is the minimum signal width. “B” must be at least 1/2 of minimum signal width, otherwise, signals may not be
counted if the minimums for “A” and “B” are not met.

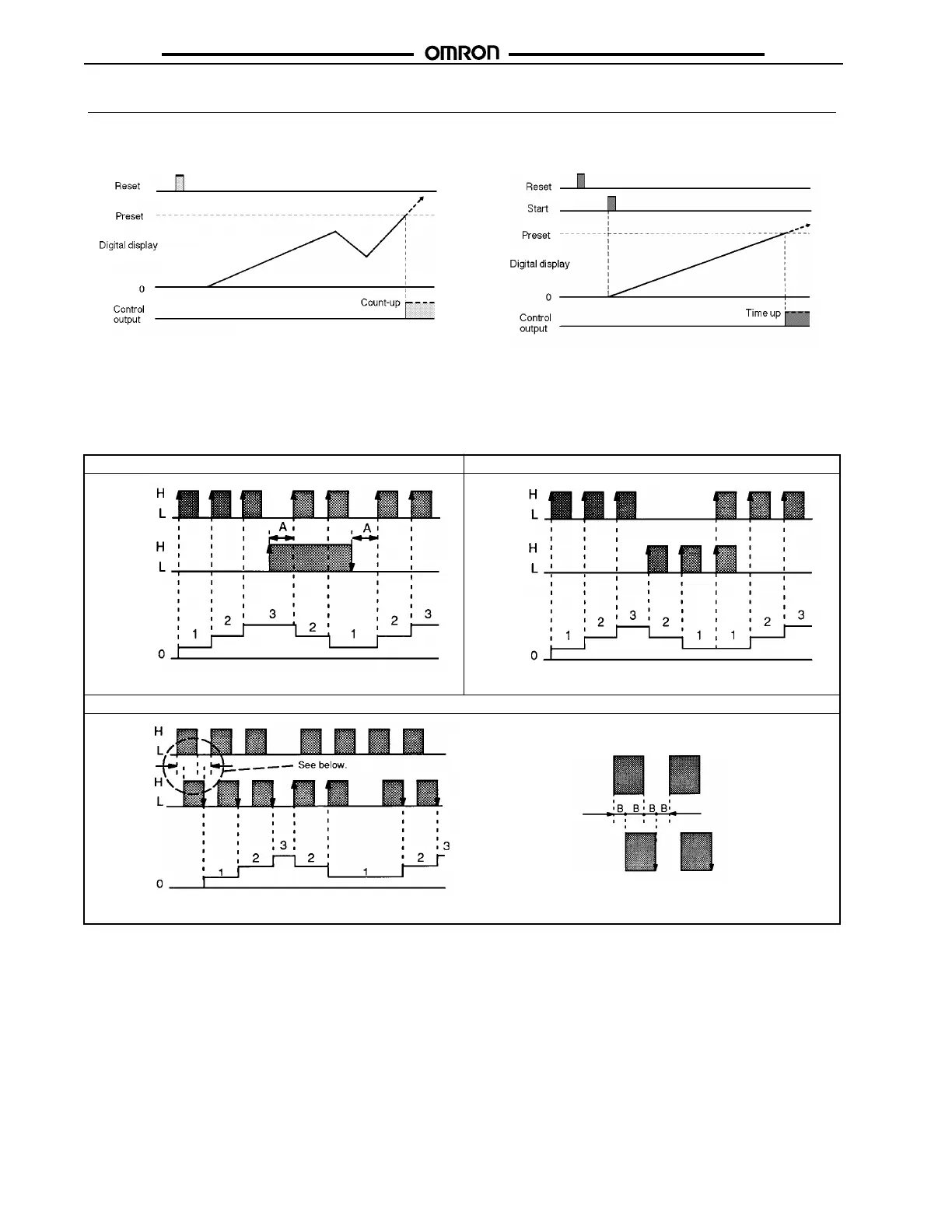

■ In Counter Function Mode ■ In Timer Function Mode
Command Input Mode A Individual Input Mode B
Phase Difference Input Mode C
Count
input 1
Count
input 2
Digitaldis
play
Count
input 1
Count
input 2
Digital
display
Count
input 1
Count
input 2
Digital
display
Enlargement from left.
Counting speeds of CP1 and CP2 must
be the same for Reversible C.
