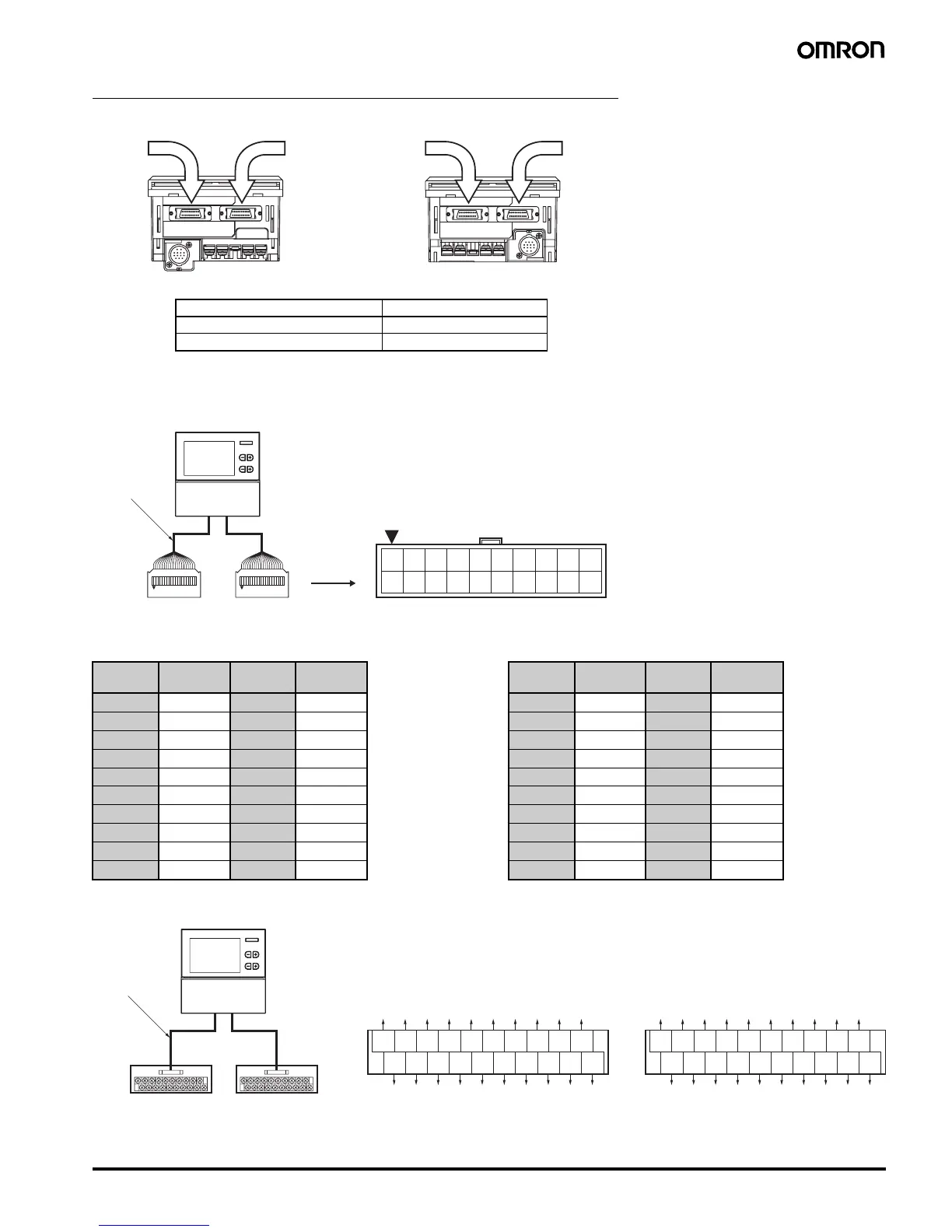

Cam Positioner H8PS 7
Output Cable Connections (16-/32-output Models Only)
1. E5ZE-CBL200 Connector-type Output Cable (Order Separately) Connections
Output Cable 1 Wiring Table Output Cable 2 Wiring Table
Using Connector-Terminal Block Conversion Units
Output Connector 1 (CN1)
Output Connector 2 (CN2) (See note.)
Output Connector 1 (CN1)
Output Connector 2 (CN2) (See note.)
(Bottom view) (Bottom view)
Note: The 16-output Models do not have CN2 Connectors.
Output Connector Output signals
Output Connector 1 (CN1) Cam 1 to Cam 16, COM, Vs
Output Connector 2 (CN2) (See note.) Cam 17 to Cam 32, COM, Vs
Flush Mounting Models Surface Mounting Models
(CN1)
E5ZE-CBL200
Connector-type
Output Cable
(Order Separately)
H8PS-16@/-32@
(CN2)
XG4M-2030
MIL Connector
(made by OMRON)
1 3 5 7 9 1113151719
2 4 6 8 10 12 14 16 18 20
Pin Arrangement of XG4M-2030 Connectors
Output
Cable 1
Output
Cable 2
Outputs Connector
pin No.
Outputs Connector
pin No.
Cam 1 20 Cam 9 19
Cam 2 18 Cam 10 17
Cam 3 16 Cam 11 15
Cam 4 14 Cam 12 13
Cam 5 12 Cam 13 11
Cam 6 10 Cam 14 9
Cam 7 8 Cam 15 7
Cam 8 6 Cam 16 5
COM 4 COM 3
Vs 2 Vs 1
Outputs Connector
pin No.
Outputs Connector
pin No.
Cam 17 20 Cam 25 19
Cam 18 18 Cam 26 17
Cam 19 16 Cam 27 15
Cam 20 14 Cam 28 13
Cam 21 12 Cam 29 11
Cam 22 10 Cam 30 9
Cam 23 8 Cam 31 7
Cam 24 6 Cam 32 5
COM 4 COM 3
Vs 2 Vs 1
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10
XW2D-20G6
Connector-Terminal Block
Conversion Unit (Order Separately)
H8PS-16@/-32@
(CN1)
E5ZE-CBL200
Connector-type
Output Cable
(Order Separately)
Output Cable 1
Terminal Arrangement of the XW2D-20G6 Connector-Terminal Block Conversion Unit
Output Cable 2
Output Cable 2Output Cable 1
(CN2)
Vs
Vs
COM
COM
Cam 1
Cam 2
Cam 3
Cam 4
Cam 5
Cam 6
Cam 7
Cam 8
Cam 9
Cam 10
Cam 11
Cam 12
Cam 13
Cam 14
Cam 15
Cam 16
Vs
COM
Cam 17
Cam 18
Cam 19
Cam 20
Cam 21
Cam 22
Cam 23
Cam 24
Vs
COM
Cam 25
Cam 26
Cam 27
Cam 28
Cam 29
Cam 30
Cam 31
Cam 32
To Next Page
