Omron HEM-711 User Manual

TITLE
9

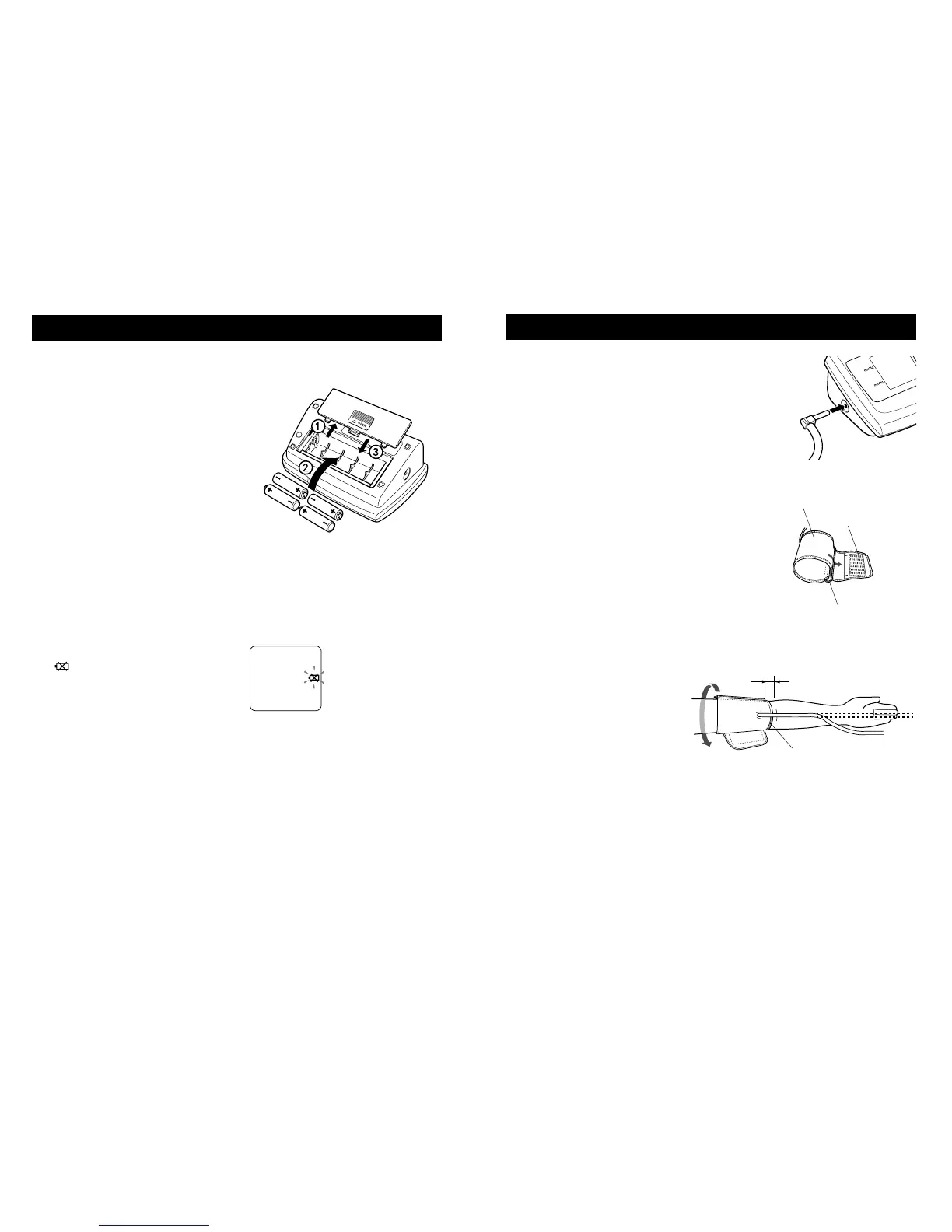

HOW TO APPLY THE ARM CUFF
1. If the cuff is assembled correctly,
the hook material will be on the
outside of the cuff loop and the
metal D-ring will not touch your
skin.
2. If the cuff is not assembled, pass
the end of the cuff furthest from
the tubing through the metal D-
ring to form a loop. The smooth
cloth should be on the inside of
the cuff loop.
3. Sit in a chair with your feet flat
on the floor and place your arm
on a table so that the cuff is at
the same level as your heart.
4. Put your arm through the
cuff loop. The bottom of
the cuff should be
approximately 1/2"
above the elbow. The
Green Marker on the cuff
should lie over the
brachial artery on the
inside of the arm. Tube
should run down center of arm
approximately even with middle
finger.
S
Y
S
T
O
L
IC
D
IAS
TO
LIC
P
U
LSE
/
A
U
M
O
D
E
L
H
Pile Side Material
Sewn Hook Material
D-Ring
Bottom Edge 1/2 Inch
Green Marker
Cuff Tube
TITLE
8
BATTERY INSTALLATION/REPLACEMENT
1. Slide the battery cover off in
the direction of the arrow.
2. Install or replace 4 "AA" size
batteries so the + (positive)
and – (negative) polarities
match the polarities of the
battery compartment as
indicated.
3. Replace the battery cover.
Notes:
If the Low Battery Indicator
( ) appears on the display,
replace all four batteries.
Long-life alkaline batteries
are recommended.
Remove the batteries if the
monitor will not be used for
an extended period of time.

Omron HEM-711 Specifications

Display and Measurement

display type	LCD Digital Display
pressure measurement range	0 to 280 mmHg
pulse measurement range	40 to 180/minute

Accuracy and Calibration

pressure accuracy	±3 mmHg or 2% of reading
pulse accuracy	±5% of reading
measurement method	Oscillometric method

Power and Battery

power source	4 'AA' batteries or AC adapter
battery life	Approximately 300 uses
inflation method	Automatic by electric pump

Operating Environment

operating temperature range	50°F to 104°F (10°C to 40°C)
operating humidity range	30 to 85% RH maximum
storage temperature range	–4°F to 140°F (–20°C to 60°C)

Weight and Dimensions

main unit weight	Approximately 12.3 oz (350g)
main unit dimensions	Approximately 4 1/4" (l) x 6 2/3" (w) x 2 3/5" (h)
cuff dimensions	Approximately 5 1/2" x 19"
