Names and Functions of the Parts

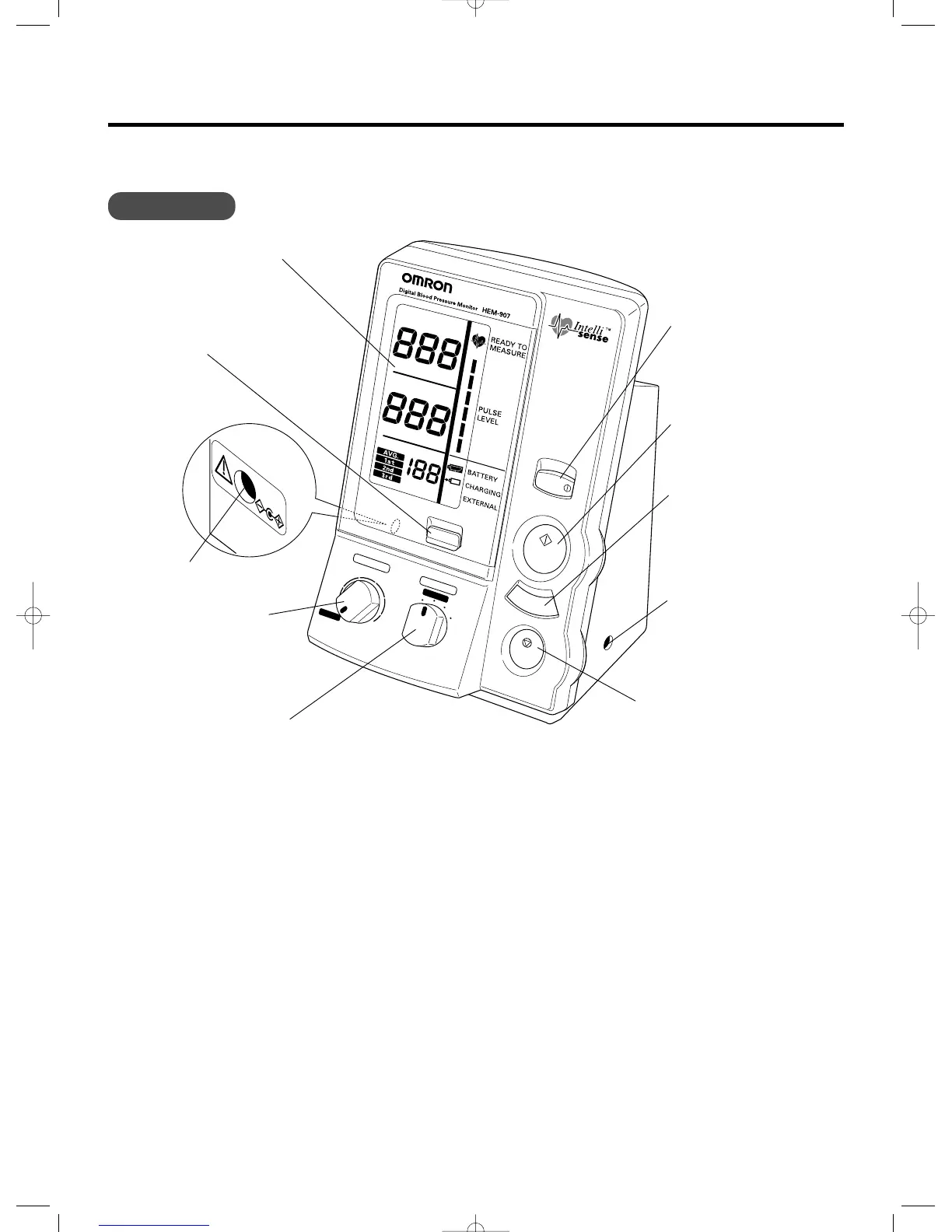

Main unit
1. Display: Displays blood pressure values, pulse rate, and pulse wave level.
2. HIDE Button: Switches between display and non-display of measured results.
3. DC jack: Connects the AC adapter.
4. P-SET (pressure setting) Knob: In the AUTO position, inflation pressure is automatically set.
Otherwise, inflation pressure can be set between 100 and 280 mmHg.
5. MODE Selector: Selects the mode of measurement.
• One-time Measurement Mode (SINGLE Mode): Measurement with automatic inflation
• Average Mode (AVG. Mode): Automatically measures two (or three) times consecutively.
• Auscultation Mode (MANU. Mode): Automatic inflation, automatic deflation, and pressure display (does not measure
blood pressure).
• Check Mode (CHECK Mode): Checks the accuracy of pressure display. Displays only pressure.
6. ON/OFF (power) Button: Turns on or off the power of the unit.
7. START Button : Starts the measurement.
8. DEFLATION (deflation control) /Display Switch Button:
• In the MANU. Mode; Deflates the cuff by approximately 5 to 10 mmHg with each push of the button.
• In the AVG. Mode; Switches the display of average values and the measurement results with each push.
9. Air Connector: Connects the air tube.
10. STOP Button: Stops the measurement and deflates air rapidly.
To Next Page
