MicroHAWK ID-40 Conguration
2 MicroHAWK ID-40 Conguration
2.1 Connect the power and Ethernet cables to ONLY ID-40 reader 1.
2.2. Using an internet browser type the IP address of the camera. (The factory default IP address is
192.168.188.2. If necessary, change the PC's IP address to 192.168.188.101, subnet 255.255.0.0, to be
on the same subnet.) This will allow you to use WebLink to congure the ID-40.
2.3. Use WebLink to congure the ID-40 for your application. Select Start > Load a Setup and load the le
“360_code_ID40_settings.wls” to load most of the desired parameters to the ID-40. Some of the
important parameters are:

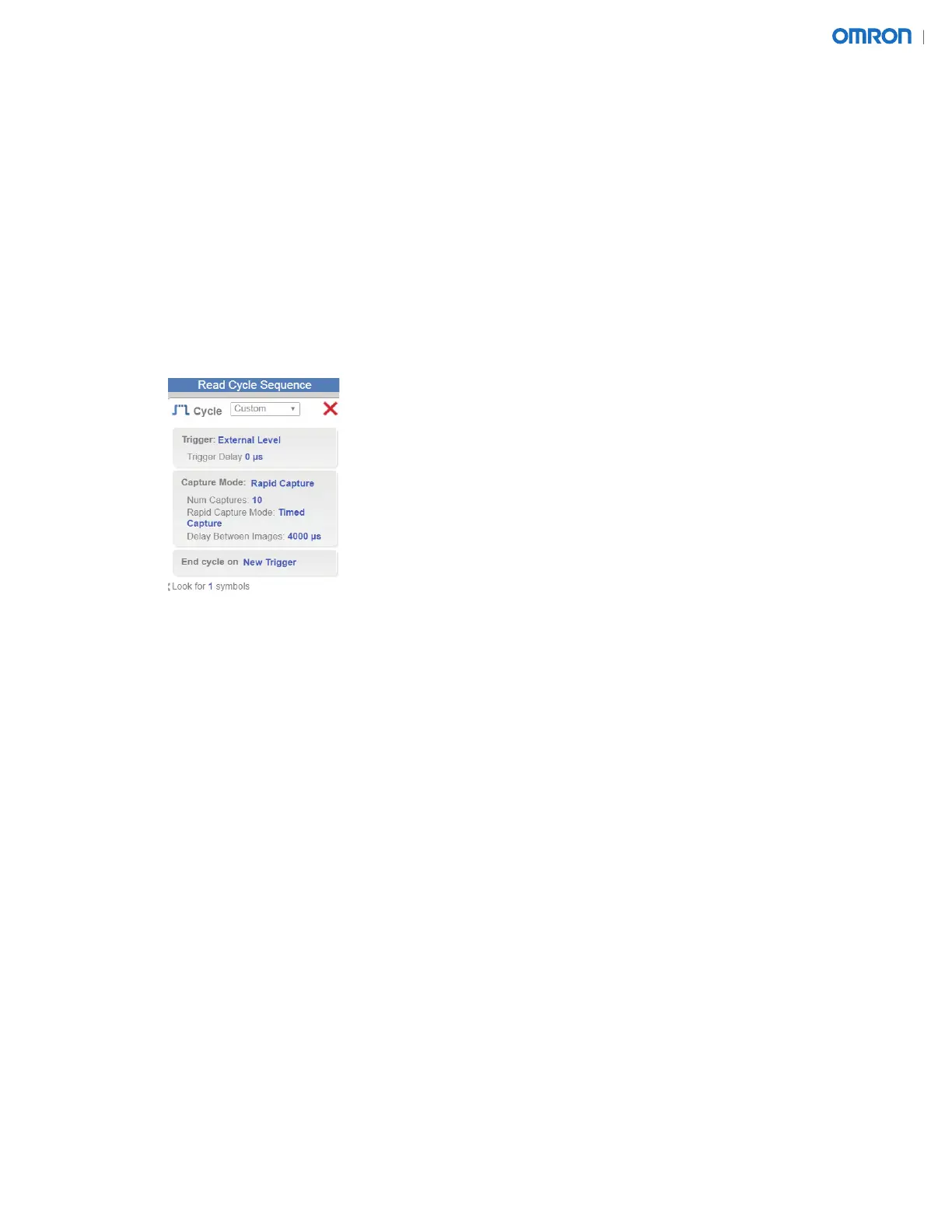

2.3.1. Read Cycle = Custom
2.3.1.1. Trigger = External Level
• External Level allows EIP trigger to control start and stop of read.
2.3.1.2. Capture Mode = Rapid Capture
2.3.1.3. Num Captures = 10
2.3.1.4. Rapid Capture Mode = Timed Capture
2.3.1.5. Delay Between Images = 4000 µs
• For parts moving at 100 FPM.
• Delay should be increased on slower moving conveyors or when Num Captures is reduced.
2.3.1.6. End cycle = New Trigger
2.3.2. Acquire
2.3.2.1. Set parameters to have focused image and freeze part movement.
2.3.2.2. Set Exposure to 1,000 µs or less to use Power Strobe (Extreme Illumination Brightness).
2.3.2.3. Learn best focus using the Spot Focus button (See the MicroHAWK ID User Manual for additional
information.)
2.3.3. Decode
2.3.3.1. Select barcode types to be read in this application. Disable unused barcode types.
