2.3.4. Gear icon > Advanced > Camera Setup
2.3.4.1. Illumination Brightness = Extreme (Power Strobe)
2.3.5. Gear icon > Advanced > Read Cycle
2.3.5.1. Image Processing Timeout = 150 ms
• This setting sets a limit on how long the MicroHAWK ID-40 will attempt to read the
barcode in the current image. You will need to determine the decode time for a good

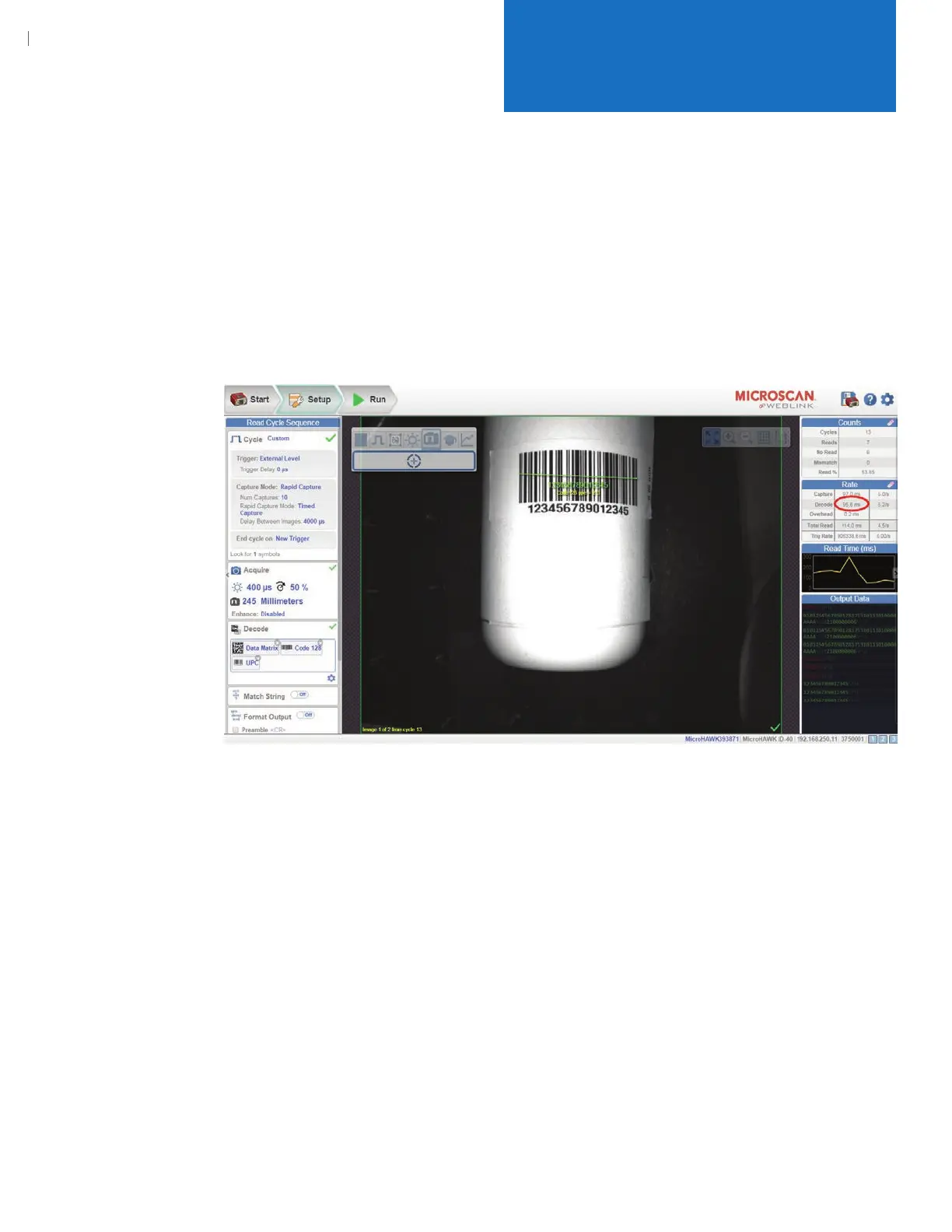

read (circled in the image below) and then set this value to slightly higher. Ideally, this
time should be set as low as possible so that an unreadable image will stop
reading quickly and start processing the next image in the Rapid Capture queue.
2.4. Click the Save button to save the changes to the reader.
2.5. Conrm that the ID-40 is reading.
2.5.1. Change Trigger to External Edge.
2.5.2. Click the Trigger button and conrm that the barcode is decodable.
2.5.3. When testing is nished, change Trigger to External Level.
2.6. Change the ID-40's IP address.
