3 Installation and Wiring
NB-series Programmable Terminals Startup Guide Manual(V109)
3-1 Installation
3
z Mounting NB Unit to Control Panel
Install the NB Unit by embedding it into the operation panel.
Use the panel mounting brackets and Phillips screwdriver installation.
Proceed the installation following the procedures below.
1

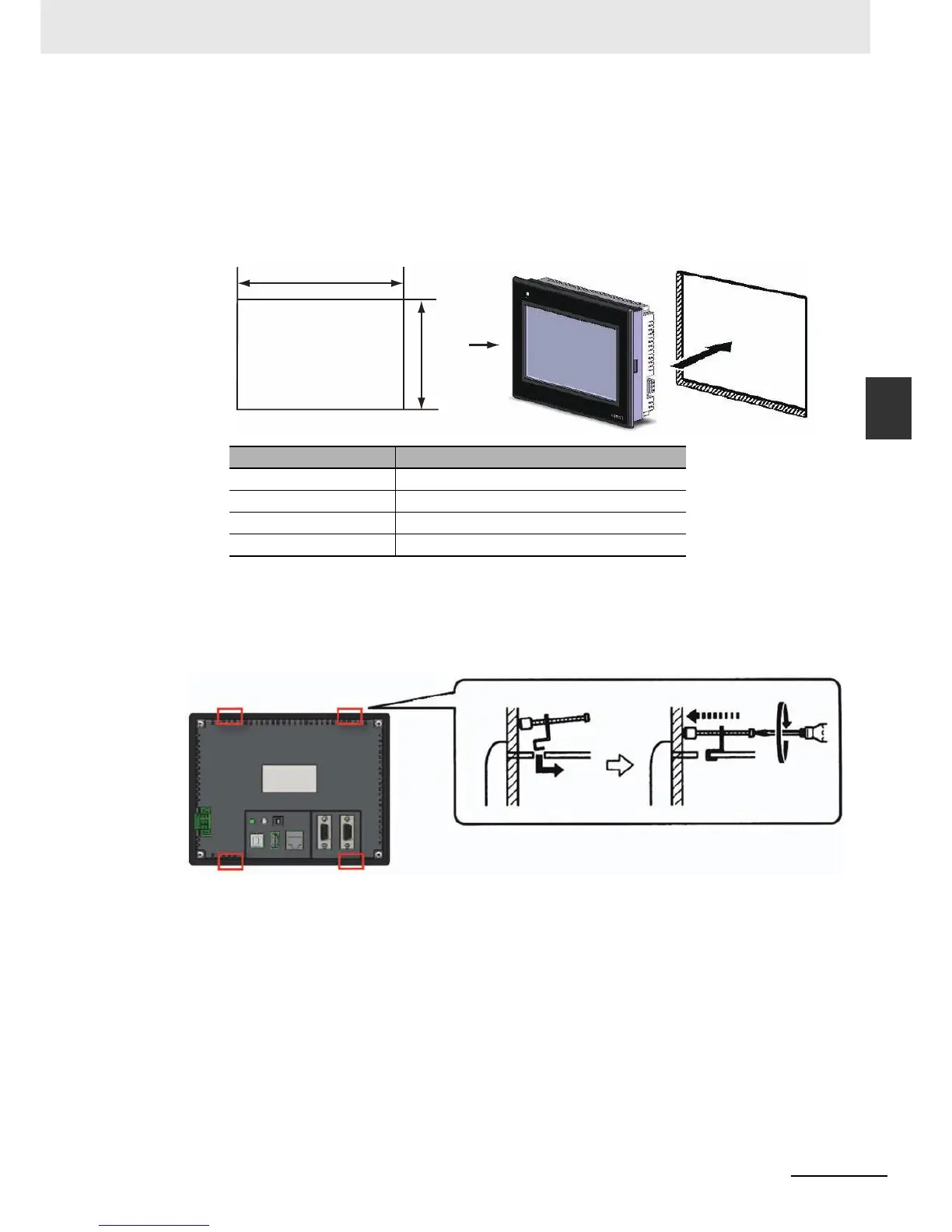

Panel cutout with dimensions is shown below. Fit the NB Unit into the panel from the front side.
2
As follows, insert the panel mounting brackets at the locations indicated by red box around the
back of the NB Unit. Insert the hooks of positioners into the square holes on the Unit to hold the
fixators properly, and tighten the screws firmly with the screwdriver.
z NB5Q/NB7W-TWB
Models Opening Dimension (W¯H mm)
NB3Q-TW00B/TW01B 119.0(+0.5/-0)¯93.0(+0.5/-0)
NB5Q-TW00B/TW01B 172.4(+0.5/-0)¯131.0(+0.5/-0)
NB7W-TW00B/TW01B 191.0(+0.5/-0)¯137.0(+0.5/-0)
NB10W-TW01B 258.0(+0.5/-0)¯200.0(+0.5/-0)
Width
Opening dimensions
Height
To Next Page
