3 Installation and Wiring
3-4
NB-series Programmable Terminals Startup Guide Manual(V109)

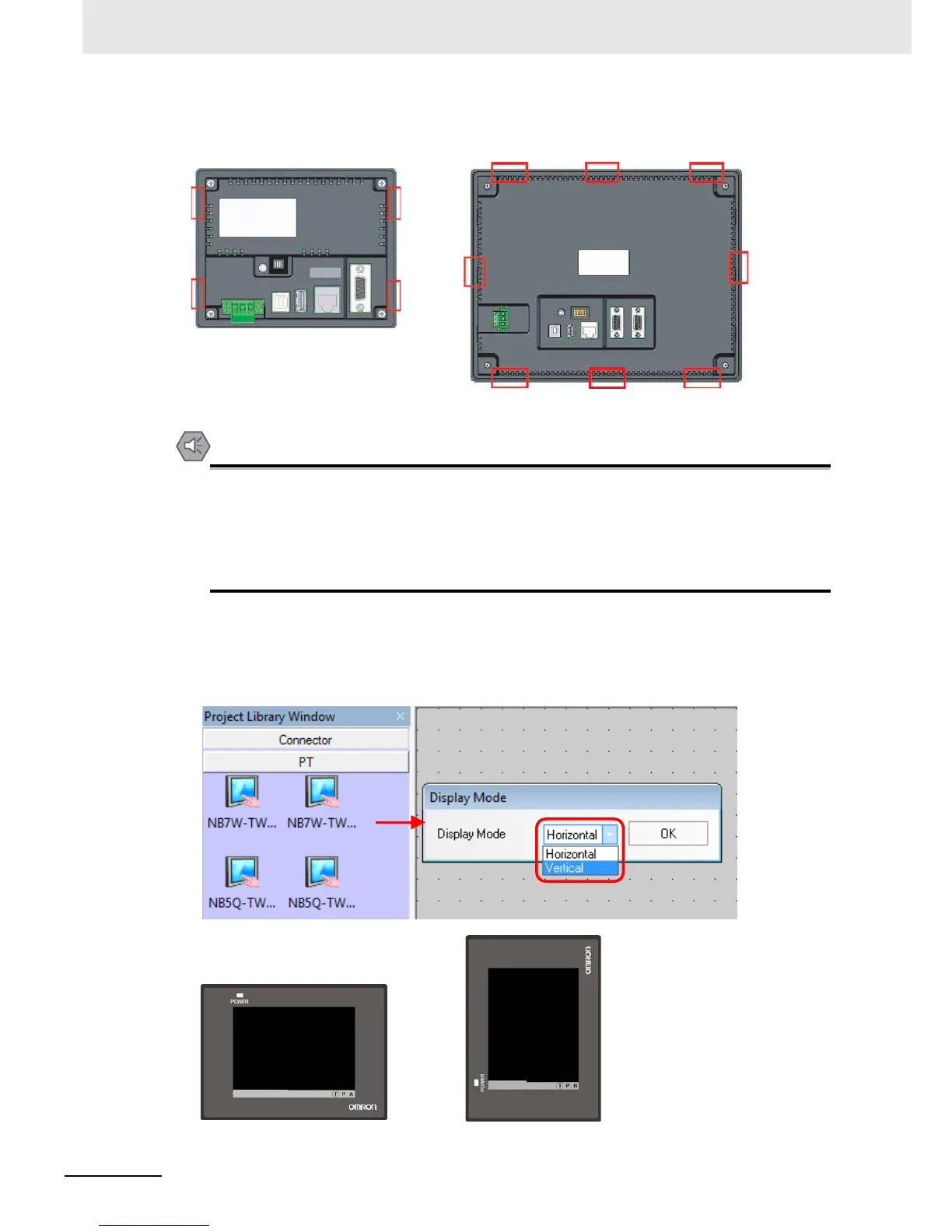

z The insert positions on the body of NB3Q-TWB/NB10W-TW01B (same
fixing method as above)
• Do not let metal particles enter the Units when preparing the panel.
• The mounting panel must be between 1.6 and 4.8 mm thick. Tighten the Mounting Brackets
evenly to a torque of between 0.5 and 0.6 N·m to maintain water and dust resistance. If the
appropriate torque is not used or the torque does not tighten the brackets evenly, the panel
may be deformed. What is more, make sure the panel is not dirty or warped and that it is
strong enough to hold the Units.
z Display Mode of NB Series touch panel
NB Series touch panel has 2 display modes: horizontal and vertical.
The display mode can be selected when dragging a PT from the Project library Window into the
Configuration and Setup Window.
To Next Page
