4 Screen Creation
4-10
NB-series Programmable Terminals Startup Guide Manual(V109)

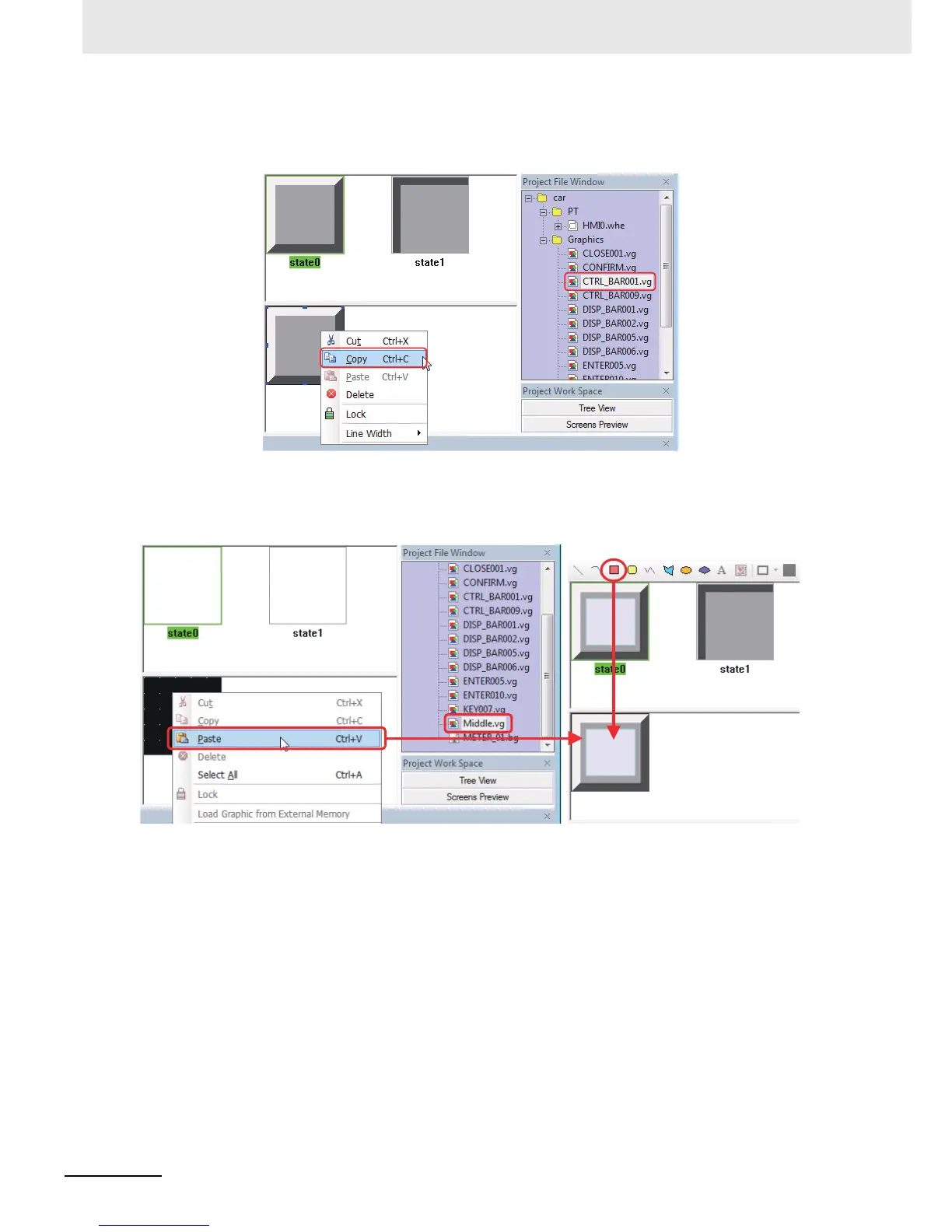

2 After create a new graphics, double click to select “CTRL_BAR001.vg” in the Project File
Window, select “state0” and right single click graph below and select “Copy”.
3 Then select “Middle.vg” graphics, and copy the graphics to be copied into it. Copy the “state1”
into the graphics by the same method, and then select “Rectangle” in the toolbar to draw it into
the graphics.
