4-25
4 Screen Creation
NB-series Programmable Terminals Startup Guide Manual(V109)
4-4 Screen Creation
4
In this project, the screen is controlled by PLC, to realize this function, the PLC Control component
should be used.
Using of PLC Control component allows to change screen from the PLC or to write a number of Current
Base Screen to the PLC . When Switch Screens is used, the default Word Length of the specified
memory is set to 2. When a value which is corresponds to the number of the Current Base Screen is
set, the screen is automatically changed to a screen which corresponds to the number. In this example,
the value D 0 is used as the corresponding screen number and the number of the Current Base Screen
indicated at D 11 is output.
z Switch Screens

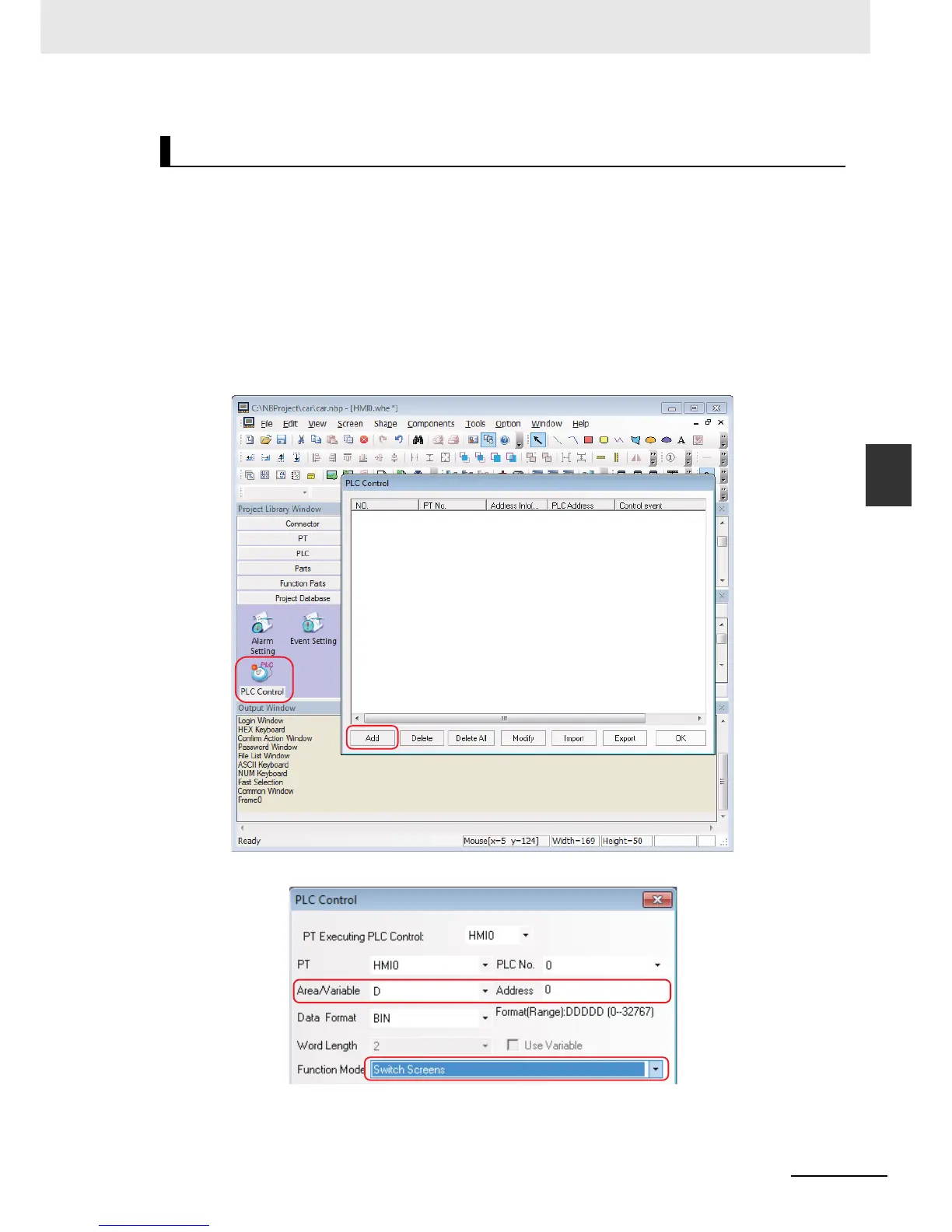

Select [PLC Control] from [Project Database].
After clicking the Add button, make the settings in the PLC Control dialog box as shown below.
PLC Control Setting
To Next Page
