4 Screen Creation
4-26
NB-series Programmable Terminals Startup Guide Manual(V109)

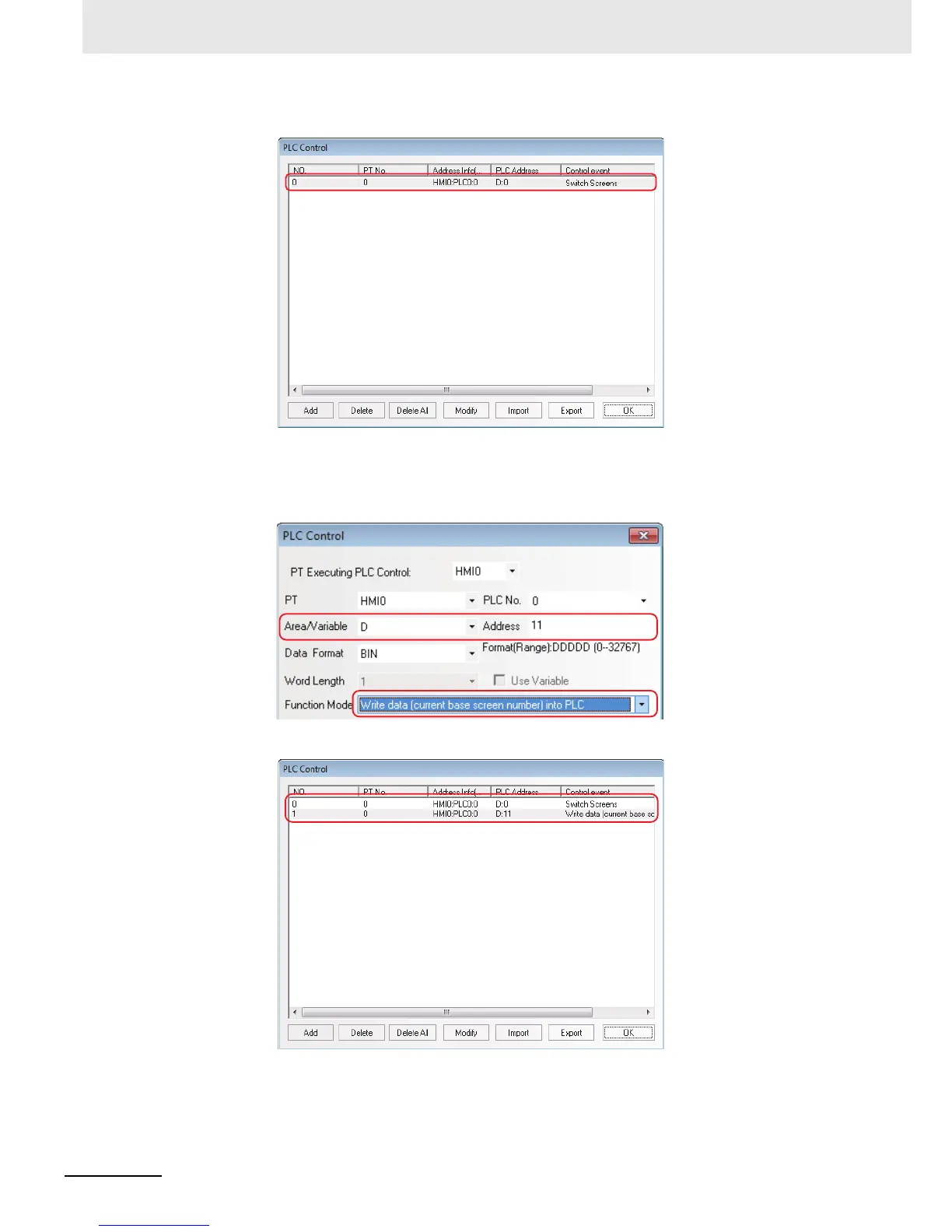

After click [OK], there is a new event added in the list.
z Write Data to PLC (Current Base Screen)
Add a control event which outputs the number of Current Base Screen from the PT to the PLC in the
same procedure.
Then the PLC control setting has been done.
Refer to the NB Series NB-Designer Operation Manual (V106) for the details on PLC Control.
