Omron NB7W-TW**B series User Manual

5 Modbus Connection
5-6
NB-series Programmable Terminals Host Connection Manual (V108)

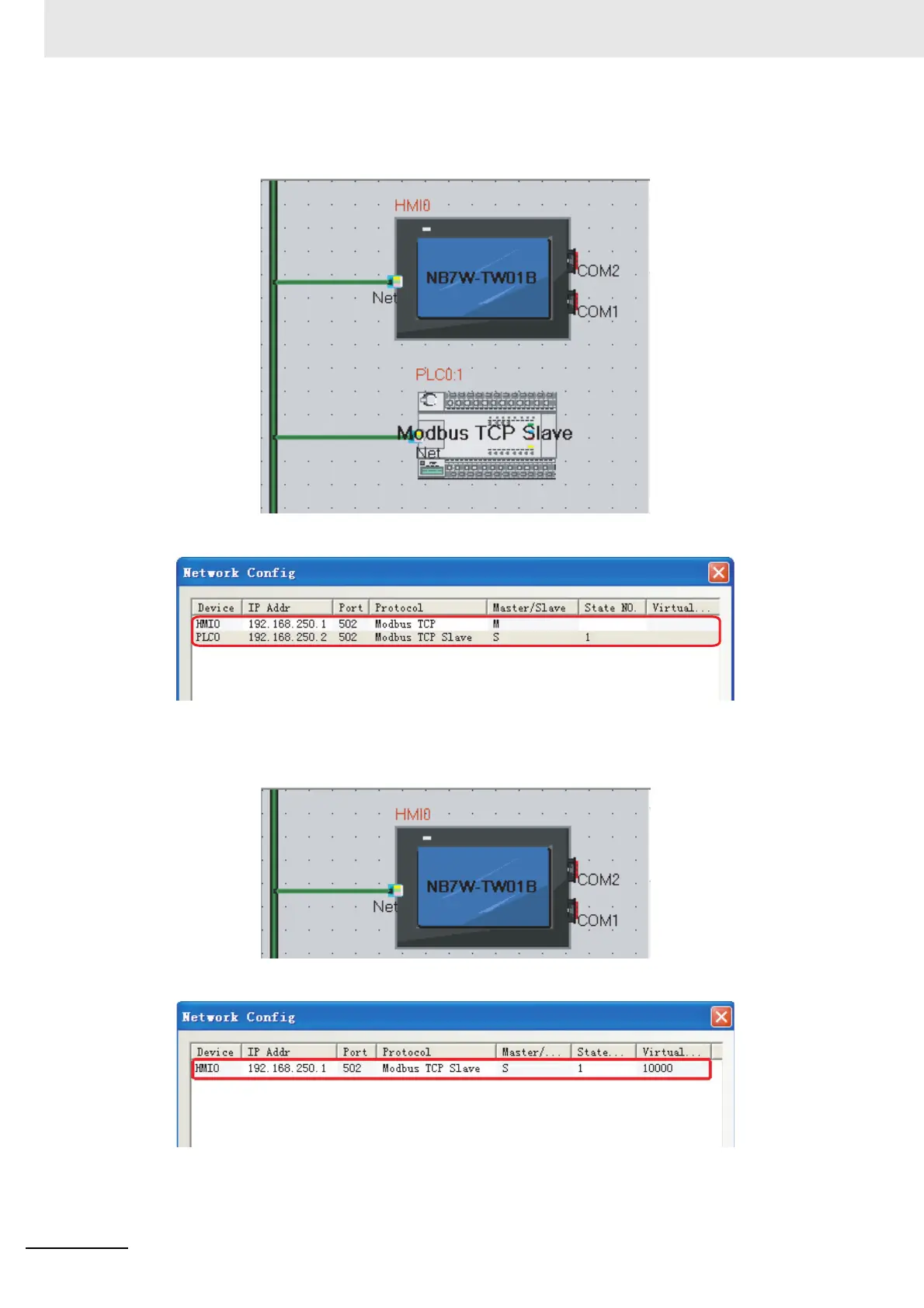

 When Using Modbus TCP Slave Protocol
PT serves as the master, the network configuration is as follows.
 When Using Modbus TCP Protocol
PT serves as the slave, the network configuration is as follows.
Refer to 5-7 Example of NB as Modbus Slave for example.
