10 Connecting to PLC of GE Fanuc Automation Inc.
NB-series Programmable Terminals Host Connection Manual (V108)
10-3 Serial Port Communication
Parameter Setting
10
Default communication parameters for GE SNP-X Protocol: 19200 (Baud Rate), 8 (Data Bit), odd (Parity),
1 (Stop Bit), 1 (Station No.).

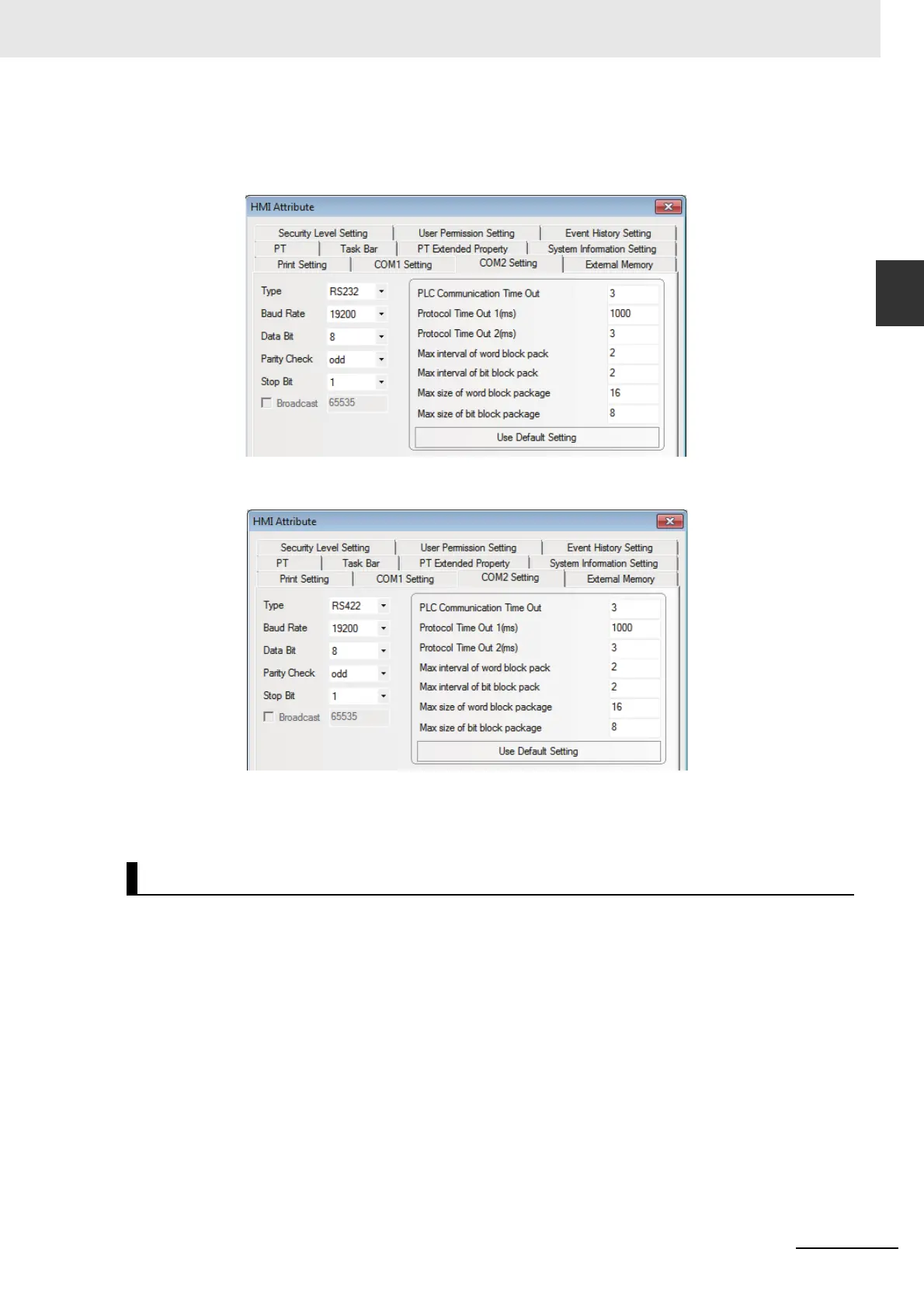

RS232 Communication
RS422 Communication
Note The maximum baud rate for the communication with serial port of GE Host is 19200 bps.
Take the settings of IC693CPU331 and IC693CMM311 as example:
Select the PLC and devices with the correct models in the Proficy Machine Edition window and you can
see the default settings here. There is no need to change the settings unless for some special condi-
tions. But please note the SNP settings. And it only needs to set the related parameters in the PT to be
the same as that herein.
