A-9
Appendices
NB-series Programmable Terminals Setup Manual(V107)
A-4 Fabrication of the Connection Cable
App

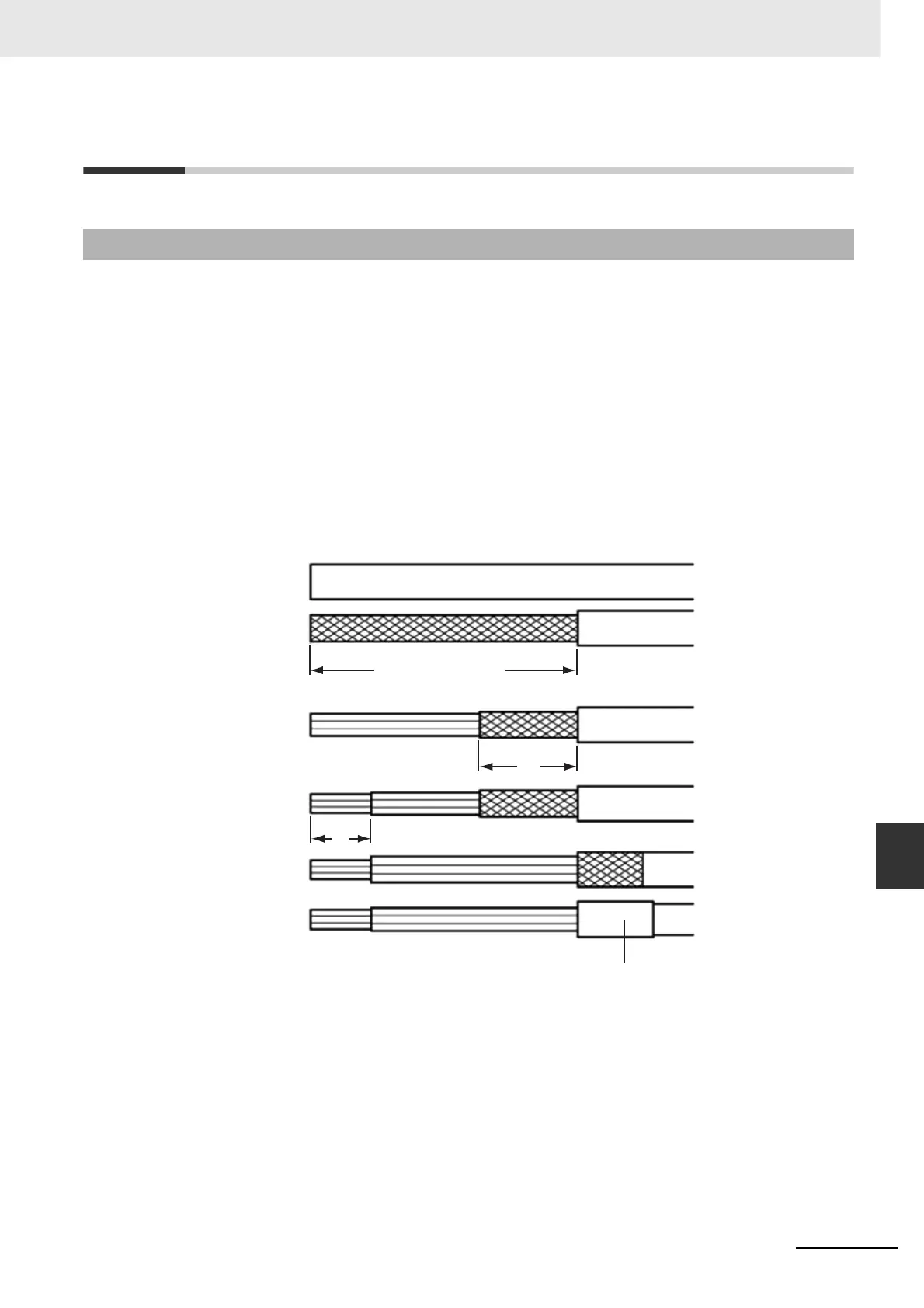

A-4-1 Cable Processing
A-4 Fabrication of the Connection Cable
Fabricate the connection cable following the procedures below.
1
Cut the cable to the required length.
2
Use a tool like a razor, etc. to cut off the ethylene peel of the cable. Be care not to damage the
shielding layer (for grouping purpose)
3
Use a pair of scissors to snip off the shielding layer.
4
Bring out the core of each wire using a wire stripper.
5
Fold back the shielding layer.
6
Wrap the folded part of the shielding layer with aluminum foil tape.
A-4-1 Cable Processing
40 (RS-232C)
25 (RS-422A/RS485)
Aluminum foil tape
(Unit mm)
5
10
