2-7

2 Error Troubleshooting Methods

NJ-series Troubleshooting Manual (W503)

2-3 Troubleshooting Non-fatal Errors

2-3-1 Identifying and Resetting Errors with the Sysmac Studio

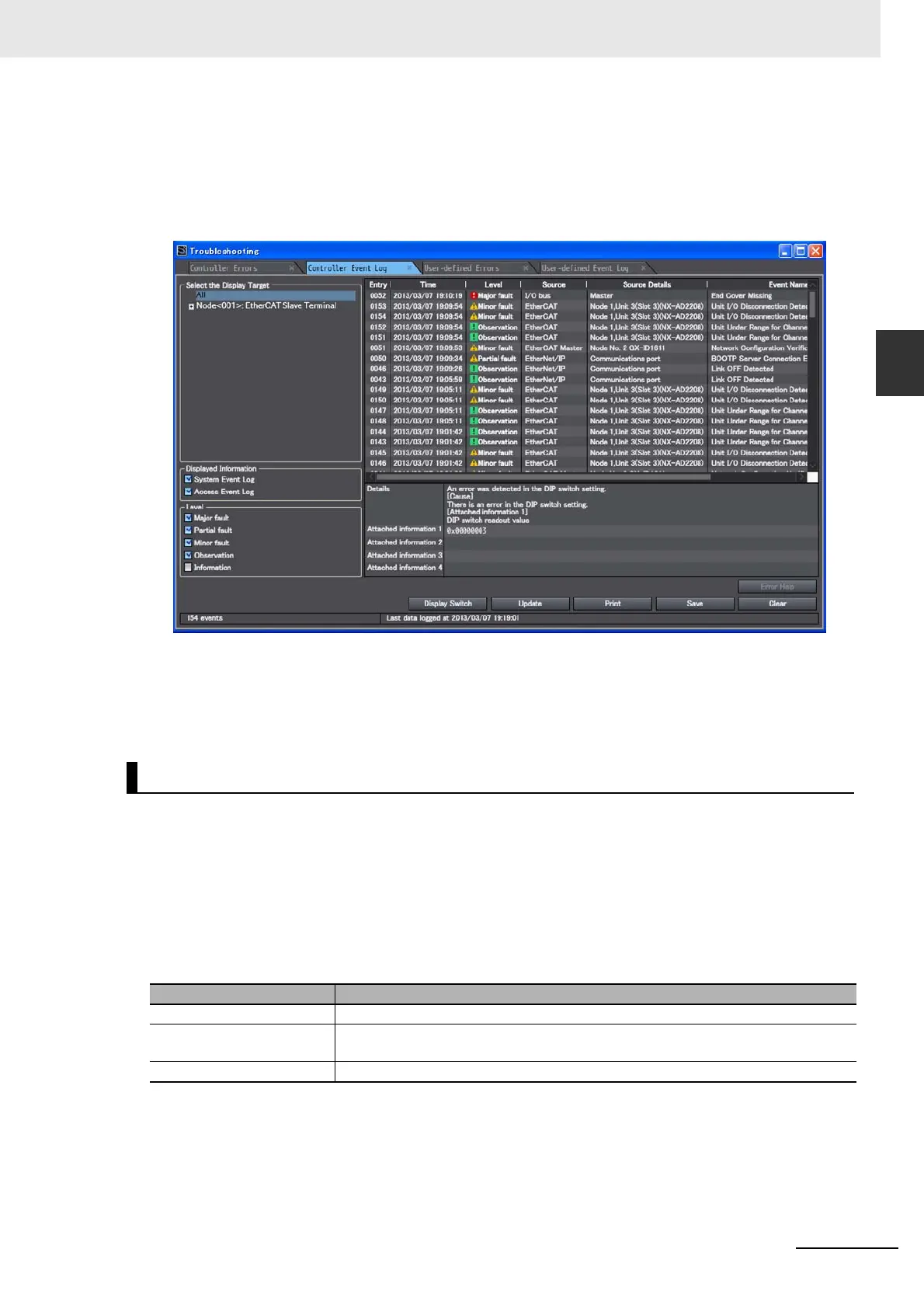

 Displaying Event Logs with the Sysmac Studio

With Sysmac Studio, you can check a log of the Controller events that previously occurred on the

Controller Event Log Tab Page.

You can select the event logs and levels to display in the Display Settings Area. Information on the

events that you specify are displayed in the detailed information area.

Error logs from CJ-series Special Units are displayed on the Controller Event Log Tab Page.

Detailed information is not displayed. To check detailed information, use the event codes that are

displayed and refer to the error codes that are given in the manual for the relevant Unit. The relation-

ship between error codes and event codes is described in Details on Controller Events (Errors and

Information) under 1-3-1 Types of Non-fatal Errors.

You can use the Sysmac Studio to reset errors that occur in a Controller. With a CPU Unit with unit ver-

sion 1.05 or later and Sysmac Studio version 1.06 or higher you can also reset errors for individual

Units.

Before you attempt to reset a Controller error, isolate and remove the cause of the error.

The Troubleshooting Dialog Box displays the cause, source, and corrections for the error. You can

select any of the items from the error list to display the following information about that error. Click the

Display Switch Button to switch between displaying details and attached information and displaying

actions and corrections.

After confirming the cause of the displayed error and the conditions in which it occurred, perform the

displayed error corrections to eliminate the cause of the error.

Resetting Errors with the Sysmac Studio

Display item Description

Details Detailed information on the error is displayed, such as the probable causes.

Attached information 1

through 4

Detailed information about the source of the error is displayed.

Action and Correction Methods to correct the probable causes of the error are displayed.
