Omron NJ Series Quick Start Guide

7
4. Overview
This document shows the basic steps for setting up a 3
rd
Party Drive in Sysmac Studio on an
EtherCAT network. In this application, an Omron NJ is used as the EtherCAT master.
5. Applicable Devices
The applicable devices are as follows.
Manufacture
Type
OMRON
NJ CPU Unit
NJ□□□-□□□□
OMRON
NX CPU Unit
NX□□□-□□□□

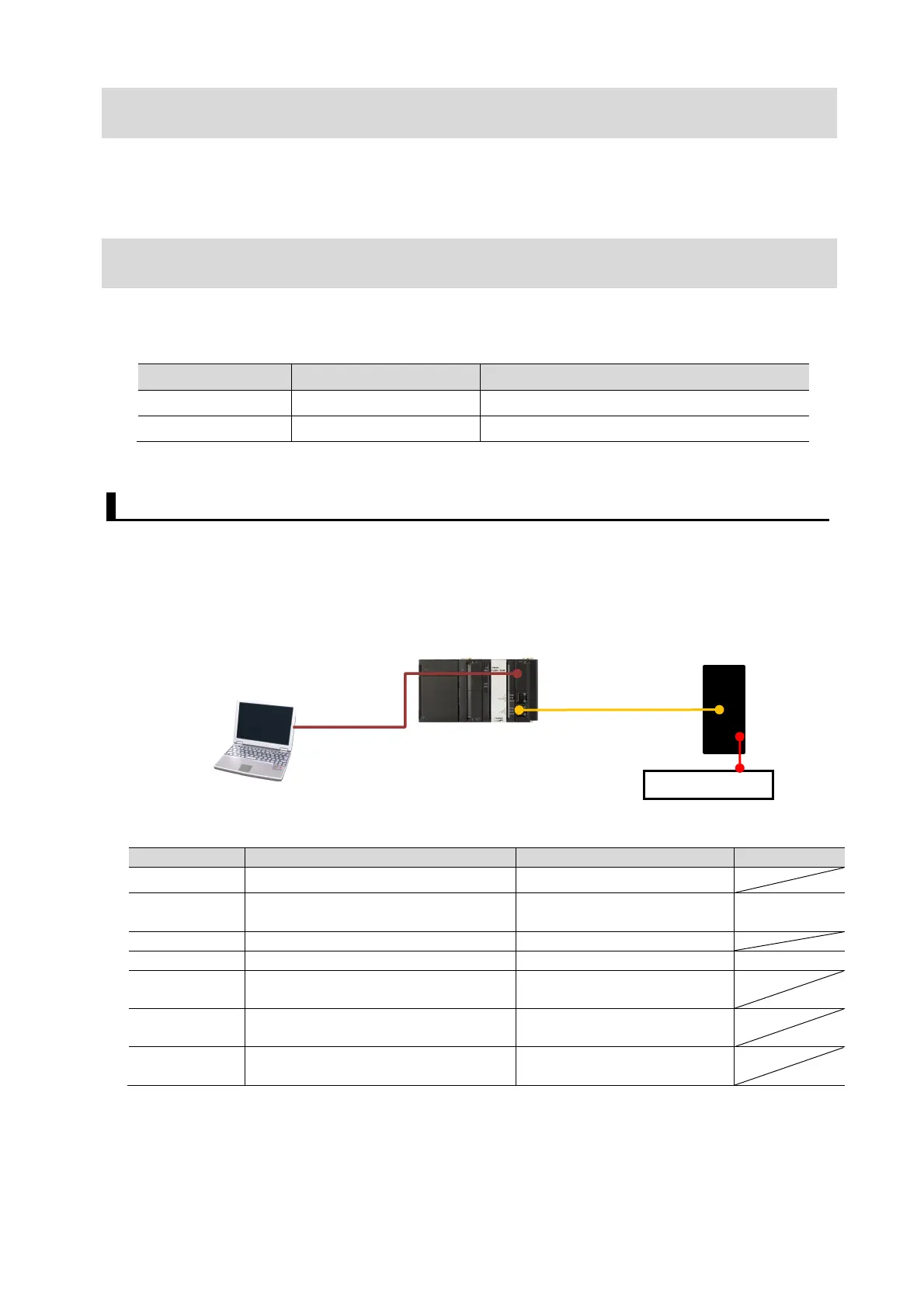

5.1. Device Configuration
The hardware components to reproduce the connection procedure of this document are as
follows:
Manufacturer
Name
Model
Version
OMRON
24 VDC power supply
-
OMRON
CPU Unit
(Built-in EtherCAT port)
NJ501-1500
Ver.1.10.02
OMRON
Power Supply Unit
NJ-PA3001
OMRON
Sysmac Studio
SYSMAC-SE2000
Ver.1.13
-
Personal computer
(OS: Windows 7 x64)
-
-
USB cable
(USB 2.0 type B connector)
-
OMRON
Ethernet cable (with industrial
Ethernet connector)
XS5W-T421-[]M[]-K
Ethernet cable
3
rd
Party Drive
USB cable
Personal computer
(Sysmac installed.
OS: Windows 7)
NJ501-1500
(Built-in EtherCAT port)
Power Supply

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
