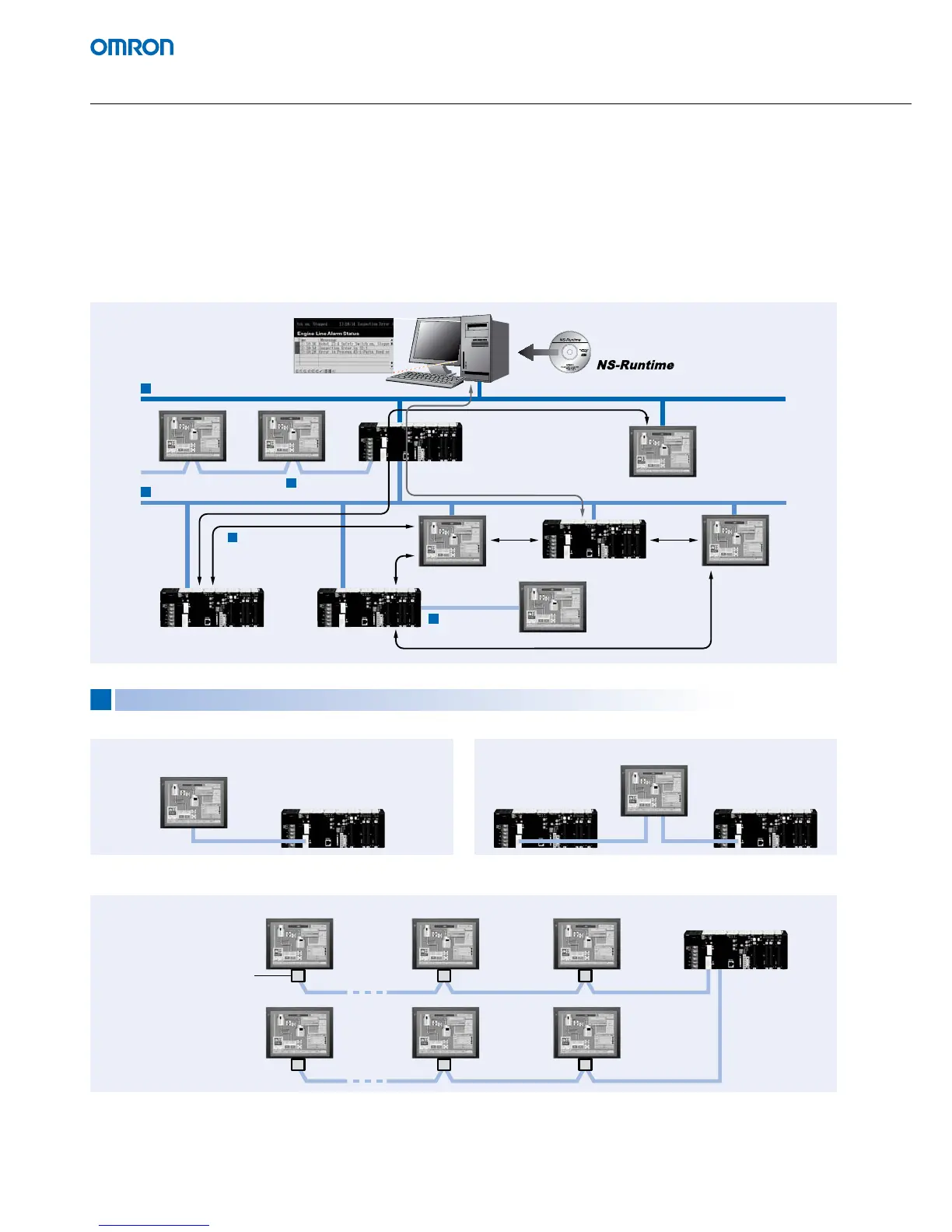

Diverse Network possibilities to fit any application
The NS-series provide very strong networking skills. With serial NT-Link communications supporting both 1:1 and 1:N connections you can connect
multiple HMI's to the PLC. The NS-series HMI can also support communications with multiple PLCs and multiple HMI's through Controller Link and
Ethernet connections, so the network can be configured freely to match the requirements and scale of the application. In addition, using the NS-
Runtime makes it possible to monitor machine status and log data from the host.
NS-seriesNS-series
CS/CJ-series PLC
NS-series
CS/CJ-series
PLC
CS/CJ-series
PLC
NS-series
CS/CJ-series
PLC
Personal computer
3
Ethernet
2
Controller Link
1
Serial connection
1
Serial
connection
4
Connections
across network
levels
Software for Machine Monitoring and
Data Logging
(sold separately)
1
NS:PLC = 1:1
Connecting with the PLC through port A or port B
1:1 NT Link or Host Link
PLC
NS-series
NS-series
PLCPLC
Serial connection
NS:PLC = 1:2
Up to 8 NS-series can be connected to each of the PLC's RS-232C/RS-422A ports.
NS-series NS-series NS-series
NS-AL002 Converter
(Converts between
RS-232C and RS-422A.)
NS-series NS-series NS-series
PLC
1:N NT Link
NS:PLC ratio = 8:1 max.
