SW4-7/8/9 Baud Rate Sets the PT Baud Rate
Set to the maximum baud rate supported by both the PT and the host computer.
However, the baud rate must be set to the same value on both devices.
19,200 bps 9,600 bps 4,800 bps 2,400 bps 1,200 bps 600 bps 300 bps
SW4-7: ON
SW4-8: ON
SW4-9: OFF
SW4-7: ON
SW4-8: OFF
SW4-9: ON
SW4-7: ON
SW4-8: OFF
SW4-9: OFF
SW4-7: OFF
SW4-8: ON
SW4-9: ON
SW4-7: OFF
SW4-8: ON
SW4-9: OFF
SW4-7: OFF
SW4-8: OFF
SW4-9: ON
SW4-7: OFF
SW4-8: OFF
SW4-9: OFF
SW4-10 Not Used
Note Set the data, stop, parity, flow control, and baud rate bits to match one of the
combinations as shown in the following.
7 data bits, Even parity, 2 stop bits 8databits,Noparity,2stopbits
7 data bits, Odd parity, 2 stop bits 8databits,Noparity,1stopbit
7 data bits, Even parity, 1 stop bit 8 data bits, Even parity, 1 stop bit
7 data bits, Odd parity, 1 stop bit 8 data bits, Odd parity, 1 stop bit
Caution Turn off the power supply before setting the DIP switches.

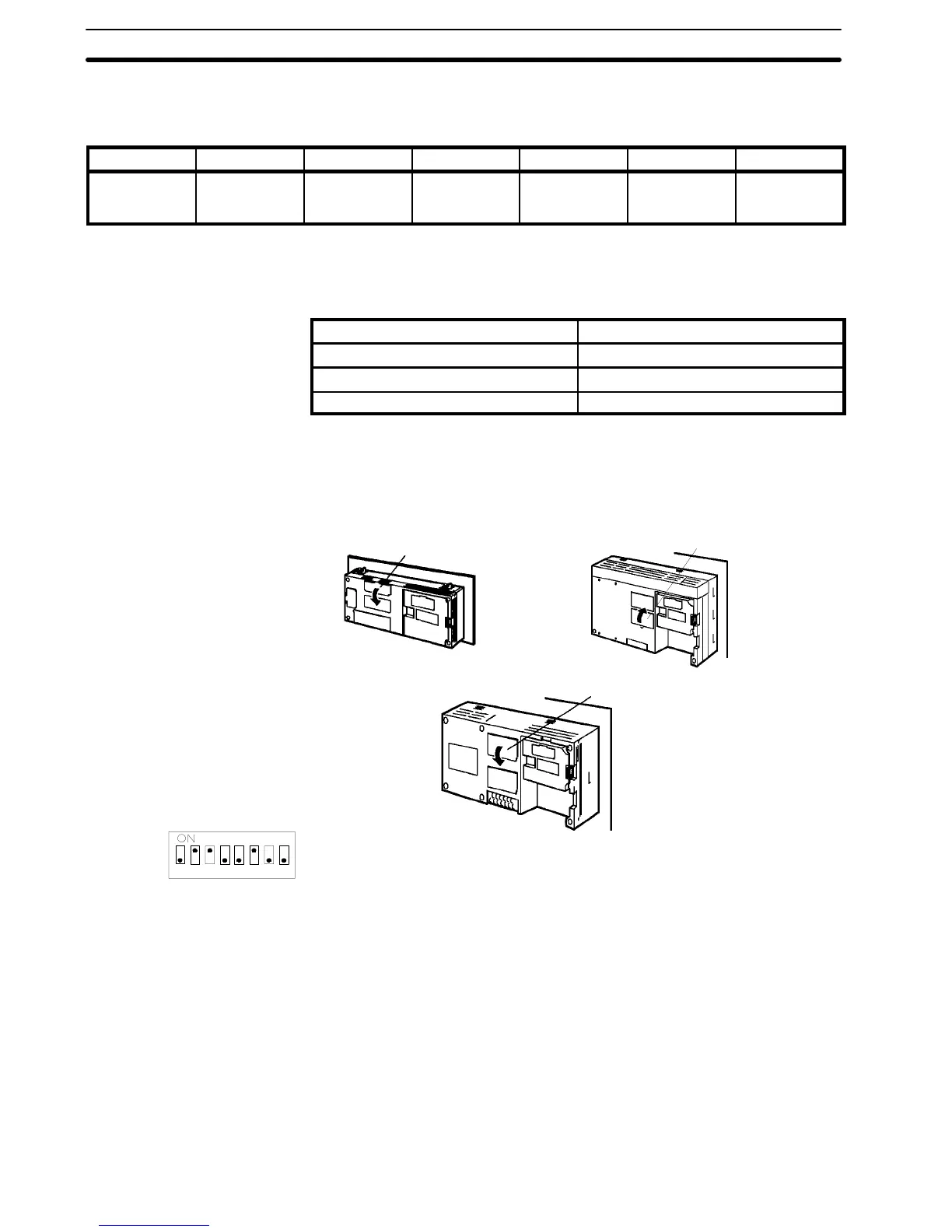

2-2-3 PT Switch Settings
NT20M
Switch cover
Rear face
Rear face
NT600M
The DIP switches are under the switch
cover on the rear of the PT.
12345678
NT2000M
Switch cover
Switch cover
SW1-1 Automatic release after communication error.
ON: No automatic release
OFF: Automatic release
SW1-2 Enable/Disable host RUN
ON: Disable
OFF: Enable
SW1-3 Reserved for system use. Always set ON.
SW1-4/5 Not used
SW1-6 Mode change Enable/Disable (NT20M/NT2000M/NT600M)
ON: Enable
OFF: Disable
    
Section 2-2
