Omron NT User Manual



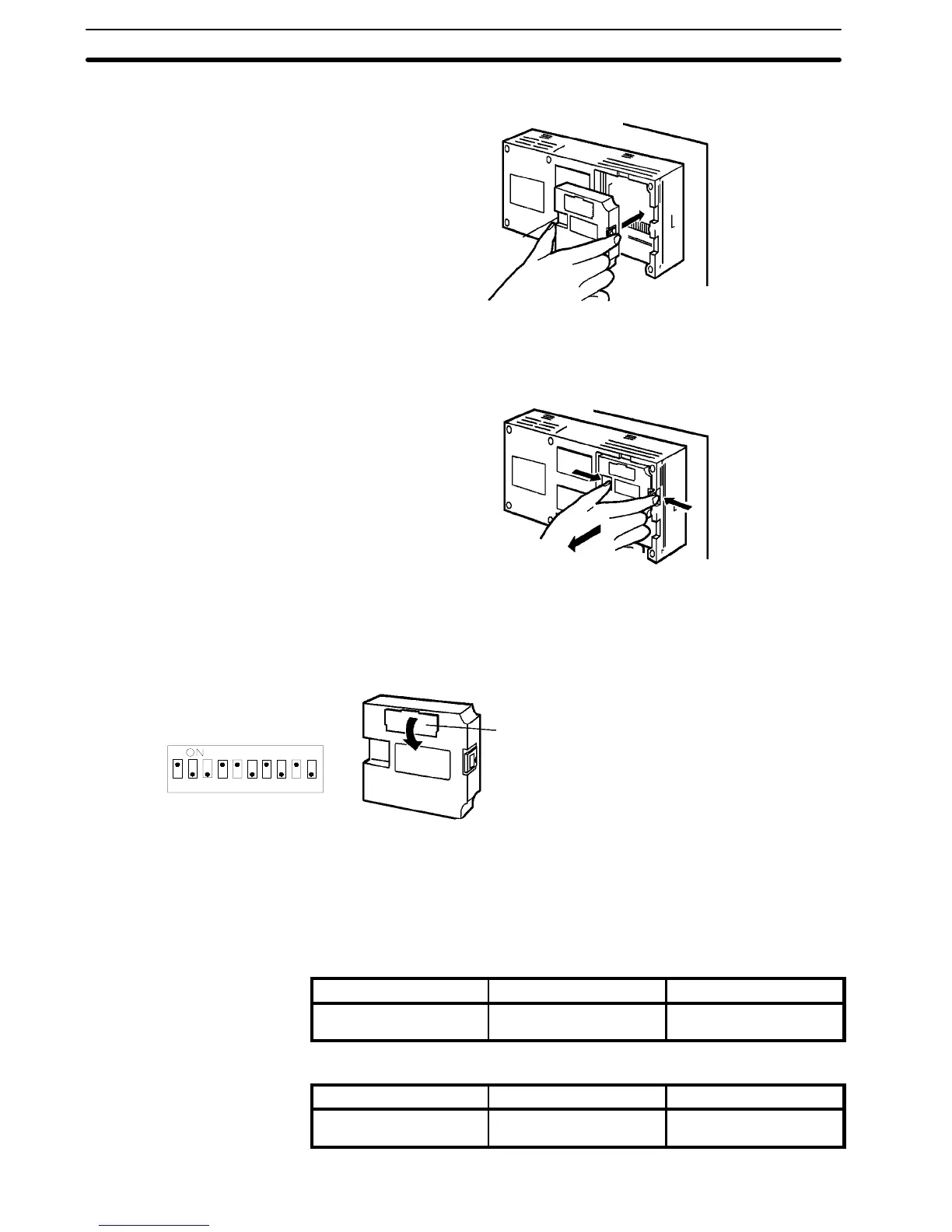

Installation in the NT600M
NT600M
Cut-out
Rear face
Removal from the NT600M
Hold the RS-232C/RS-422Interface Unit by theindentations at each side, press
inwards and pull out the Unit.
Rear face
NT600M
Rear face
2-2-2 RS-232C Interface Unit Switch Settings
Setthecommunicationconditions with the RS-232C Interface Unit DIP switches
(SW4).
Switch cover
The DIP switches are under
the switch cover on the front
of the Interface Unit.
1234567890
SW4-1 Data Bits
Data bits (see note following the switch settings)
ON:8bits,OFF:7bits
SW4-2 Stop Bits
Stop bits (see note following the switch settings)
ON: 1 bit, OFF: 2 bits
SW4-3/4 Parity Check
Also see note following the switch settings.
None Even Odd
SW4-3: ON
SW4-4: ON
SW4-3: OFF
SW4-4: ON
SW4-3: OFF
SW4-4: OFF
SW4-5/6 Flow Control
None RS/CS control XON/XOFF control
SW4-5: ON
SW4-6: OFF
SW4-5: OFF
SW4-6: ON
SW4-5: OFF
SW4-6: OFF
    
Section 2-2
