Appendices
A - 52
NX-series Digital I/O Unit User’s Manual (W521)

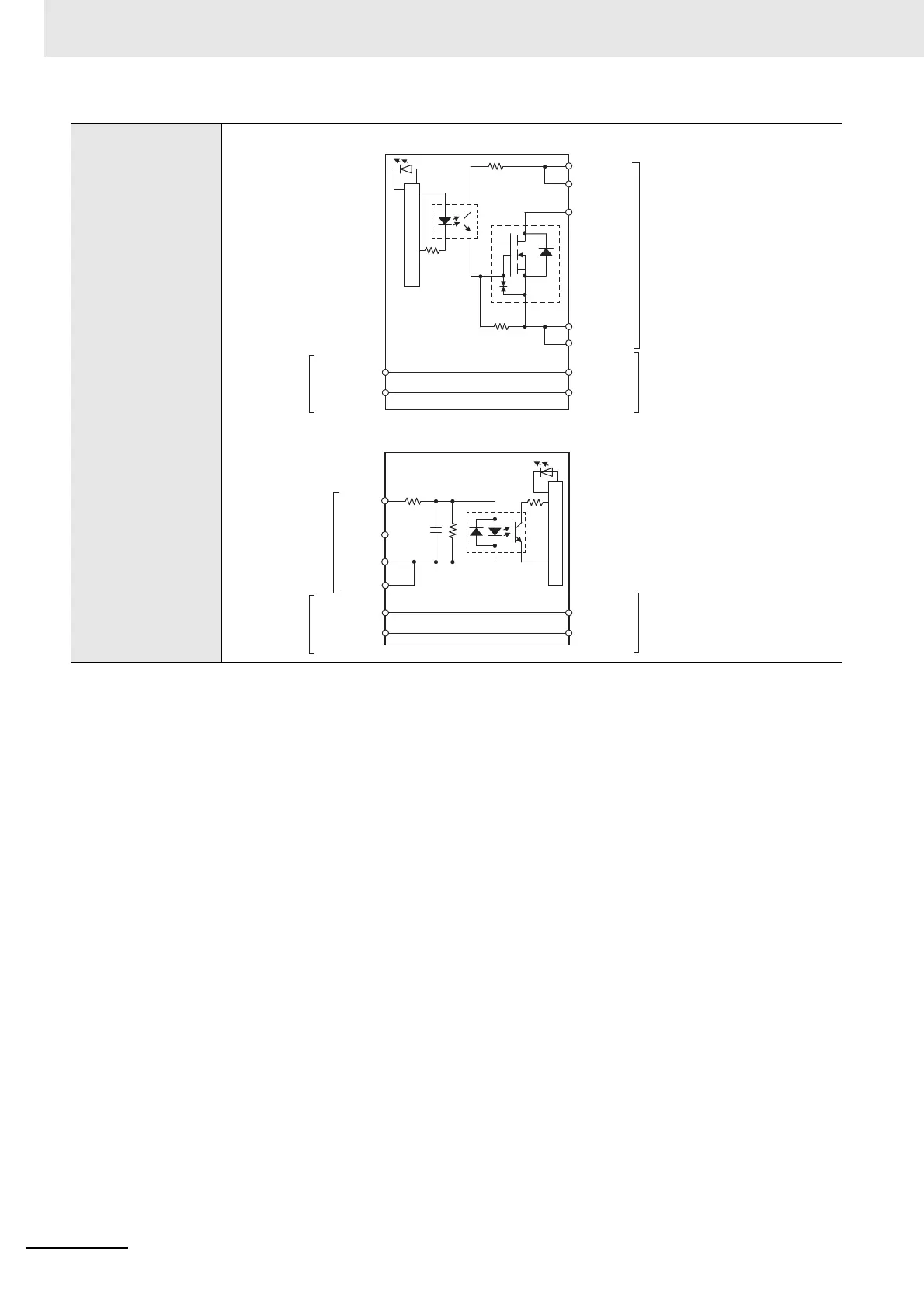

Circuit layout
OUT0
to OUT15
COM0
+V0
CN1 (left) output circuit
+V0
COM0
IN0
to
IN15
COM1
COM1
Input indicator
3.3 k
Ω
CN2 (right) input circuit
I/O power
supply +
NX bus
connector
(left)
I/O power
supply
−
NX bus
connector
(right)
I/O power
supply +
I/O power
supply
−
Internal circuits
Internal circuits
Connector
Connector
I/O power
supply +
NX bus
connector
(left)
I/O power
supply
−
NX bus
connector
(right)
I/O power
supply +
I/O power
supply
−
281
