4-3 Wiring Conforming to EMC Directives
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
4
System Design

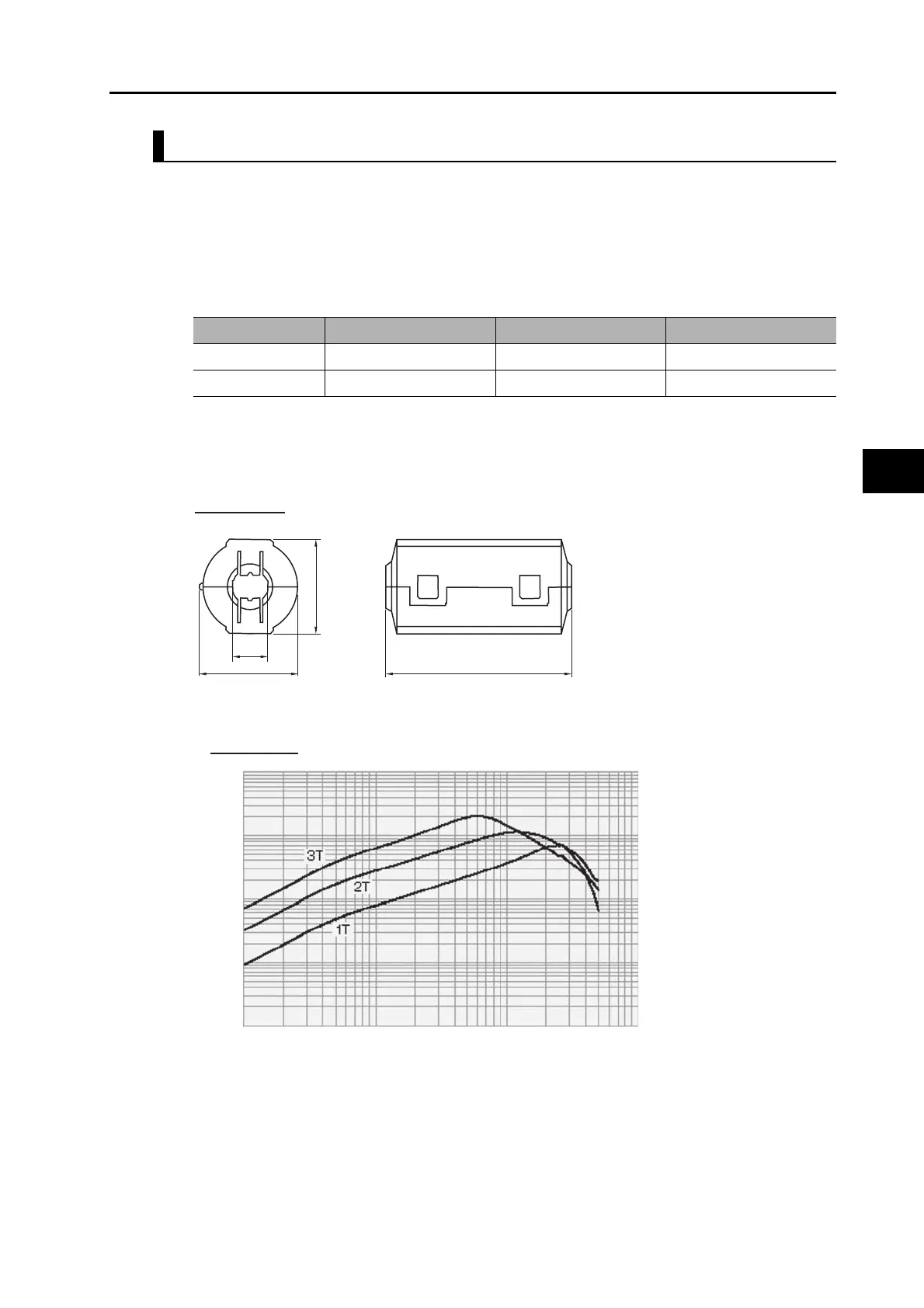

Improving Encoder Cable Noise Resistance
Take the following steps during wiring and installation to improve the encoder's noise
resistance.
 Always use the specified encoder cables.
 Do not roll cables. If cables are long and are rolled, mutual induction and inductance will increase
and cause malfunctions. Always use cables fully extended.
 When installing noise filters for encoder cables, use clamp filters.
 The following table shows the recommended clamp filters.
 Do not place the encoder cable with the following cables in the same duct.
Control cables for brakes, solenoids, clutches, and valves.
External Dimensions
Impedance Characteristics
Manufacturer Product name Model Specifications
NEC TOKIN Clamp filters ESD-SR-250 13 mm dia. max.
TDK Clamp filters ZCAT3035-1330 13 mm dia. max.
31.5
to φ 13
31.6
38.0
ESD-SR-250
10000
1000
100
10
1
Impedance (Ω)
10 100
Frequency (MHz)
1 1000
ESD-SR-250
