Omron S82K-05024 User Manual

New S82K
New S82K

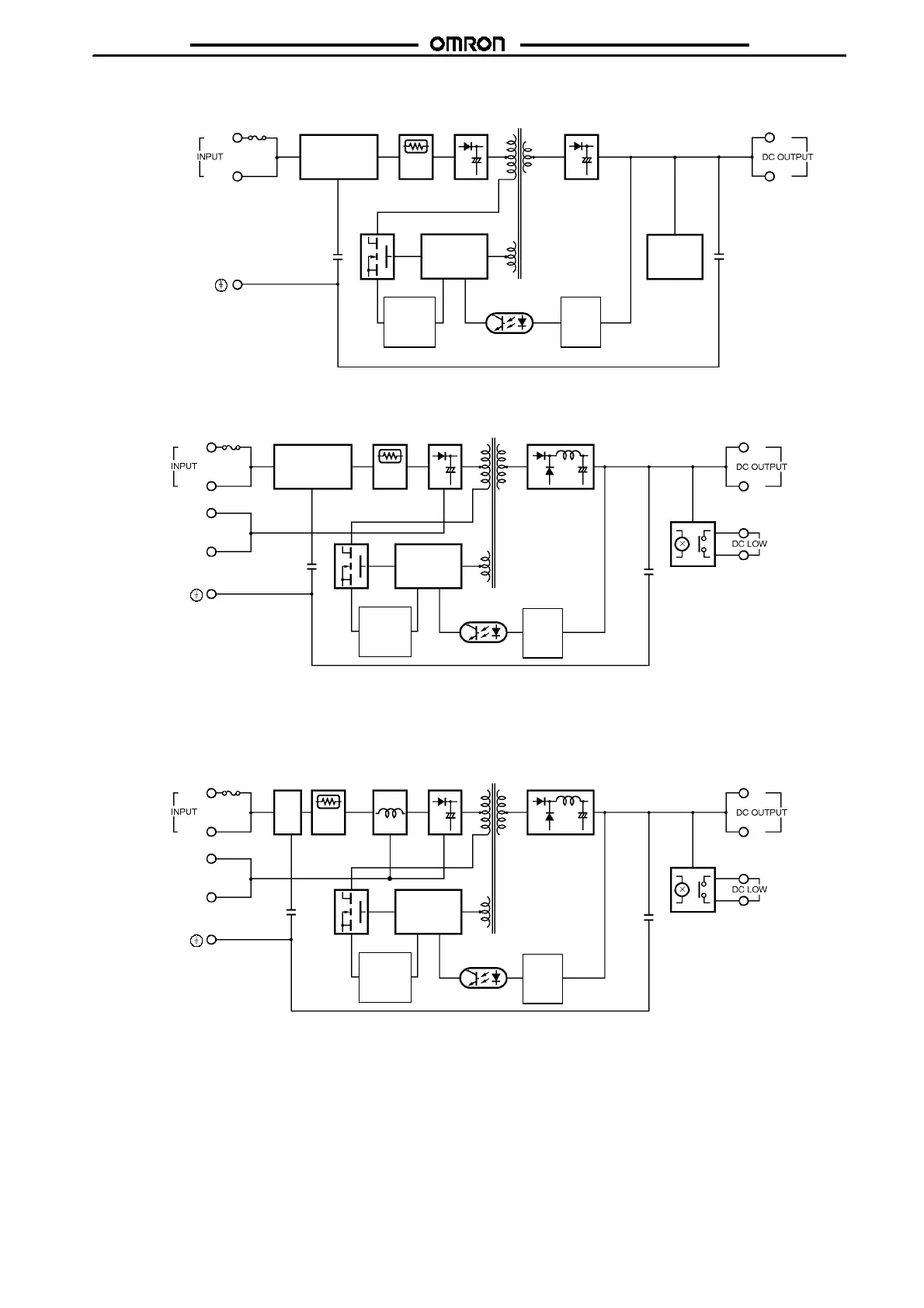

15
S82K-015
jj
(15 W)
S82K-030
jj
(30 W)
S82K-05024 (50 W)
Fuse (3 A)
Noise filter
Inrush current
protection circuit
Rectifier
Drive c ontrol
circuit
Photocoupler
AC (L)
AC (N)
Rectifier
-- V
+V
Undervoltage
alarm
indicator
Overload
alarm
circuit
Detector
S82K-09024 (90 W)
S82K-10024 (100 W)
Fuse (5 A)
Noise filter
Inrush current
protection circuit
Rectifier
Drive c ontrol
circuit
Photocoupler
AC (L)
AC (N)
Rectifier
-- V
+V
Undervoltage
alarm indicator
Overload
alarm
circuit
Detector
100 or 200 V
Selectable
terminals
(see note)
Note:
Use the short bar to short-circuit terminals 7 and 8 to select 100 to 120 VAC and
remove the short bar to select 200 to 240 V AC.
S82K-P09024 (90 W)
S82K-P10024 (100 W)
Fuse (5 A)
Noise
filter
Rectifier
Drive c ontrol
circuit
Photocoupler
AC (L)
AC (N)
Rectifier
-- V
+V
Undervoltage
alarm indicator
Overload
alarm
circuit
Detector
100 or 200 V
Selectable
terminals
(see note)
Note:
Use the short bar to short-circuit terminals 7 and 8 to select 100 to 120 VAC and
remove the short bar to select 200 to 240 V AC.
Inrush current
protection circuit
Harmonic c urrent
emiss ion control
(100-V input only)
