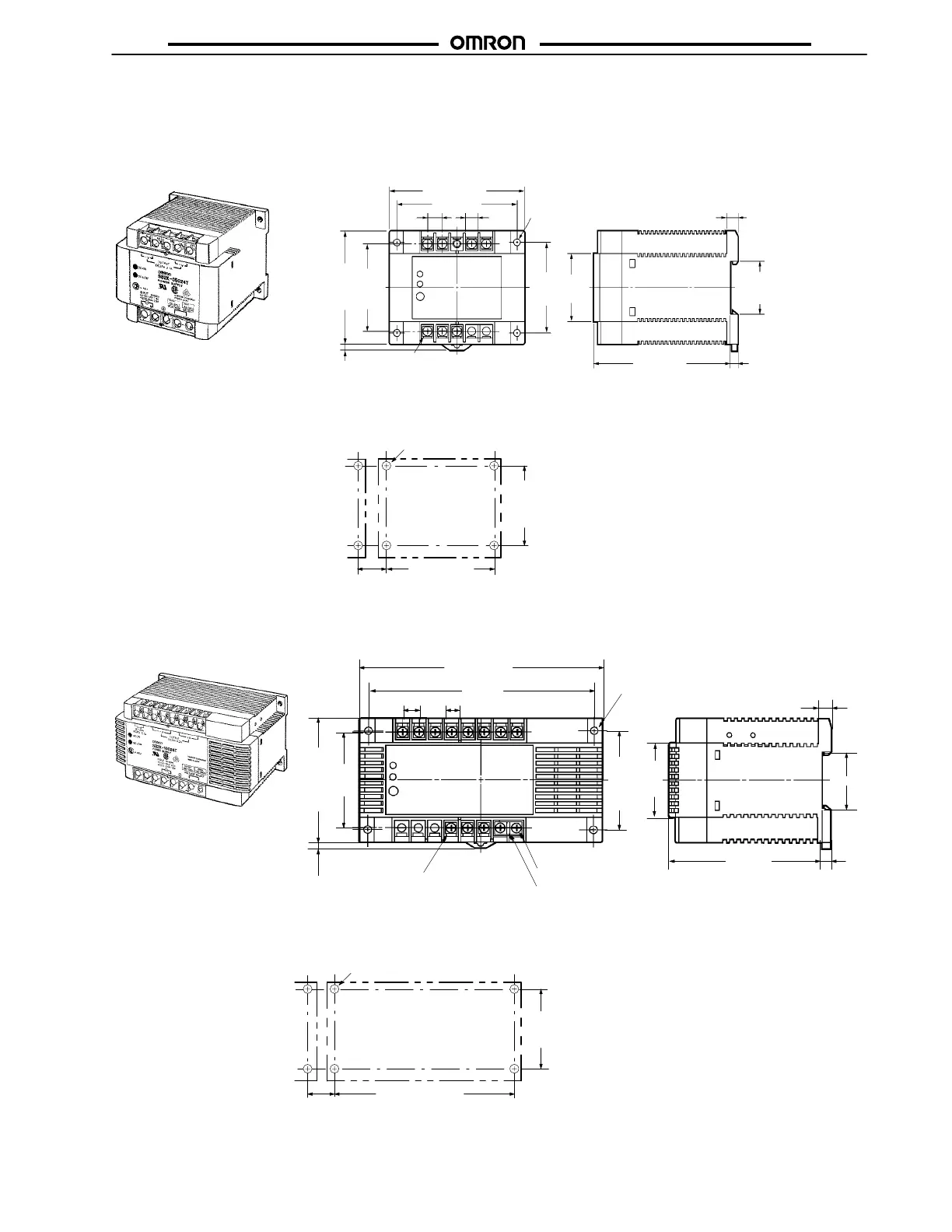

Unit: mm (inch)
 S82K-030 (30 W)
S82K-05024 (50 W)
4
(sliding
7 max.)
M3.5 with square washer
Four, M4 or 4.5-dia. mounting holes
60
(2.36)
80 (3.15)
L
(See Note.)
Four, 4.5 dia.
Mounting Holes
Note: If more than one Power Supply is installed in a
row, keep a distance of 20 mm min. (L = 20 mm
min.) between each adjacent Power Supply.
91 (3.58)
90 (3.54)
80
58.1
75
(2.95)
60
45
35.2
7.5
5
 S82K-09024 (90 W)
S82K-10024 (100 W)
60
(2.36)
135 (5.31)
L
(See
Note.)
Four, M4 or 4.5-dia. mounting holes
58.1
75
(2.95)
4
(sliding
7 max.)
M3.5 with square washer
Short bar
M3.5 terminal screw
60
145 (5.71)
135
Four, 4.5 dia.
91 (3.58)
35.2
7.5
5
Mounting Holes
Note: If more than one Power Supply is installed
in a row, keep a distance of 20 mm min. (L
= 20 mm min.) between each adjacent
Power Supply.
