Omron S82K

S82K
S82K
16

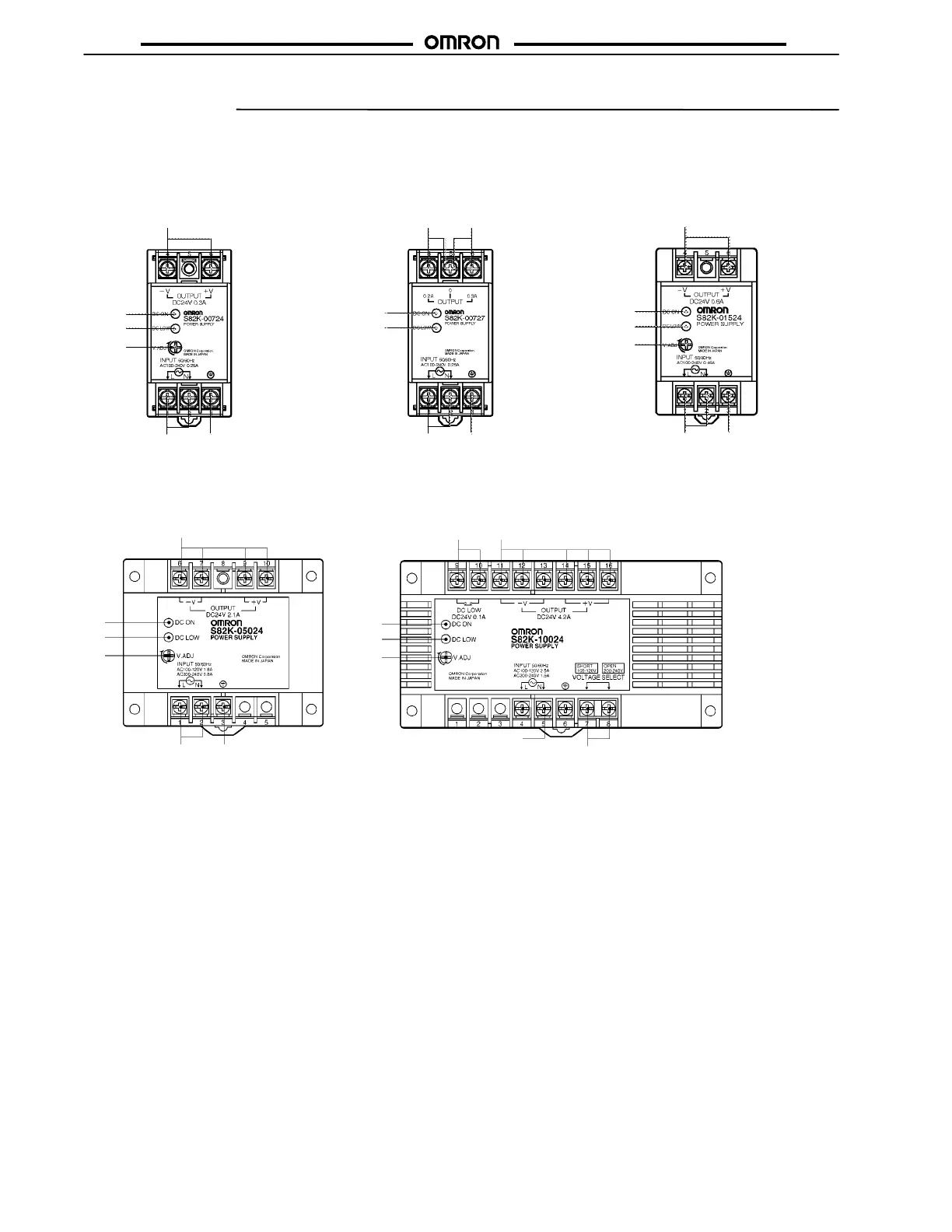

Installation
 S82K-015
 S82K-030/
S82K-05024
 S82K-09024/
S82K-10024
 S82K-003/
S82K-007
(Single Output)
6
7
5
1
23
DC–12V DC+12V
1 1
23
7
5
6
7
5
1
23
S82K-007
(Dual outputs)
1
5
7
6
23
18
5
7
6
234
1. DC Output Terminals: Connect the load lines to these terminals.
2. Input Terminals: Connect the input lines to these terminals.
3. Ground Terminal (GR): Connect a ground line to this terminal.
4. Input Voltage Selector Terminals: Selects a 100 V or 200 V input voltage.
5. Output Indicator (DC ON): Lights while a Direct Current (DC) output is ON.
6. Output Voltage Adjuster(V.ADJ): It is possible to increase or decrease the output volt-
age.
7. Undervoltage Alarm Indicator (DC LOW): All models except S82K-24024 and
S82K-P24024.
8. Undervoltage Alarm Output (DC LOW): S82K-09024/S82K-10024/S82K-24024T
models only.
9. Parallel/Single Operation Selector: Set to “PARALLEL” for parallel operation.
