S82K
S82K
17

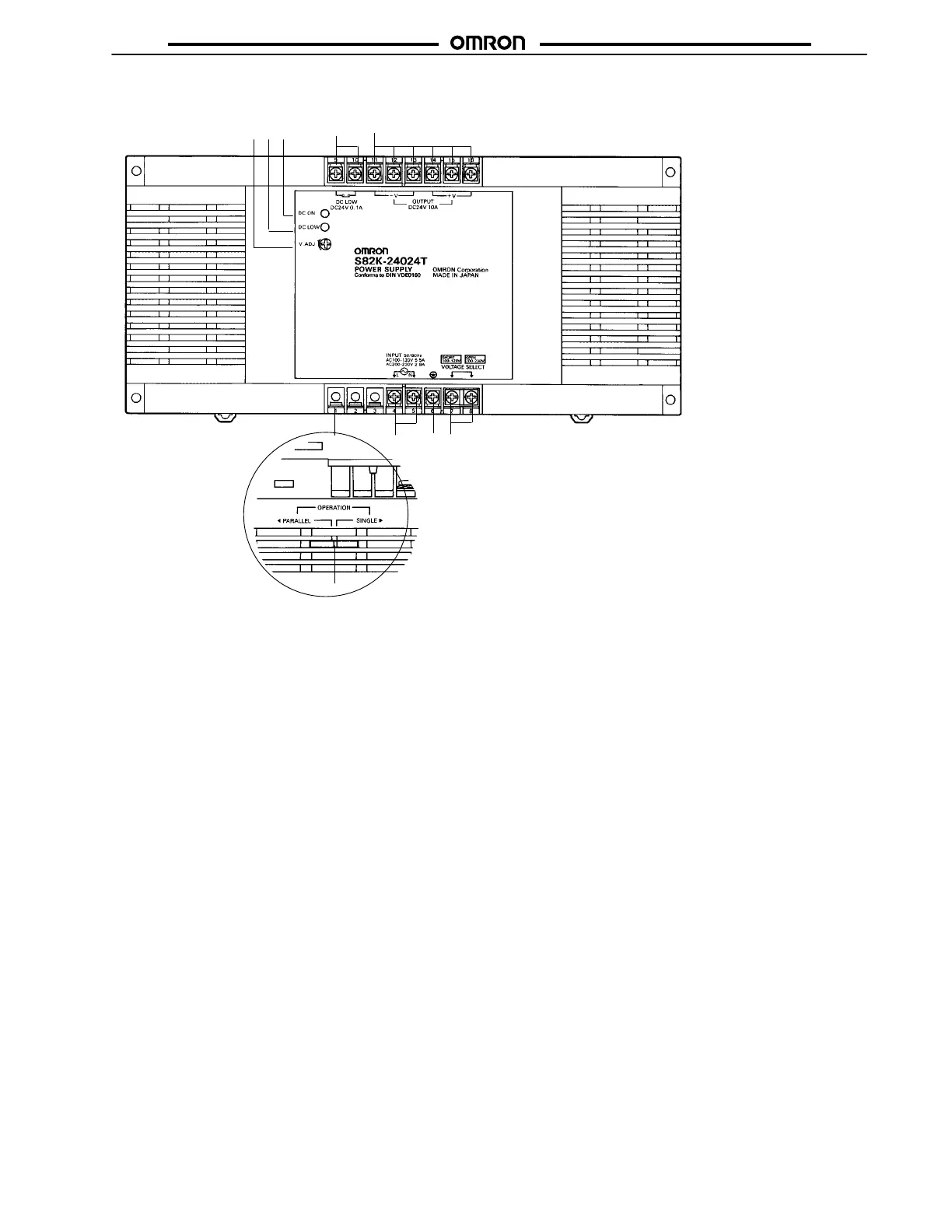

1. DC Output Terminals: Connect the load lines to these terminals.
2. Input Terminals: Connect the input lines to these terminals.
3. Ground Terminal (GR): Connect a ground line to this terminal.
4. Input Voltage Selector Terminals: Selects a 100 V or 200 V
input voltage.
5. Output Indicator (DC ON): Lights while a Direct Current (DC)
output is ON.
6. Output Voltage Adjuster(V.ADJ): It is possible to increase or
decrease the output voltage.
7. Undervoltage Alarm Indicator (DC LOW): All models except
S82K-24024 and S82K-P24024.
8. Undervoltage Alarm Output (DC LOW):
S82K-09024/S82K-10024/S82K-24024T models only.
9. Parallel/Single Operation Selector: Set to “PARALLEL” for par-
allel operation.
S82K-24024
8
2
3
4
9
Bottom view
675 1
