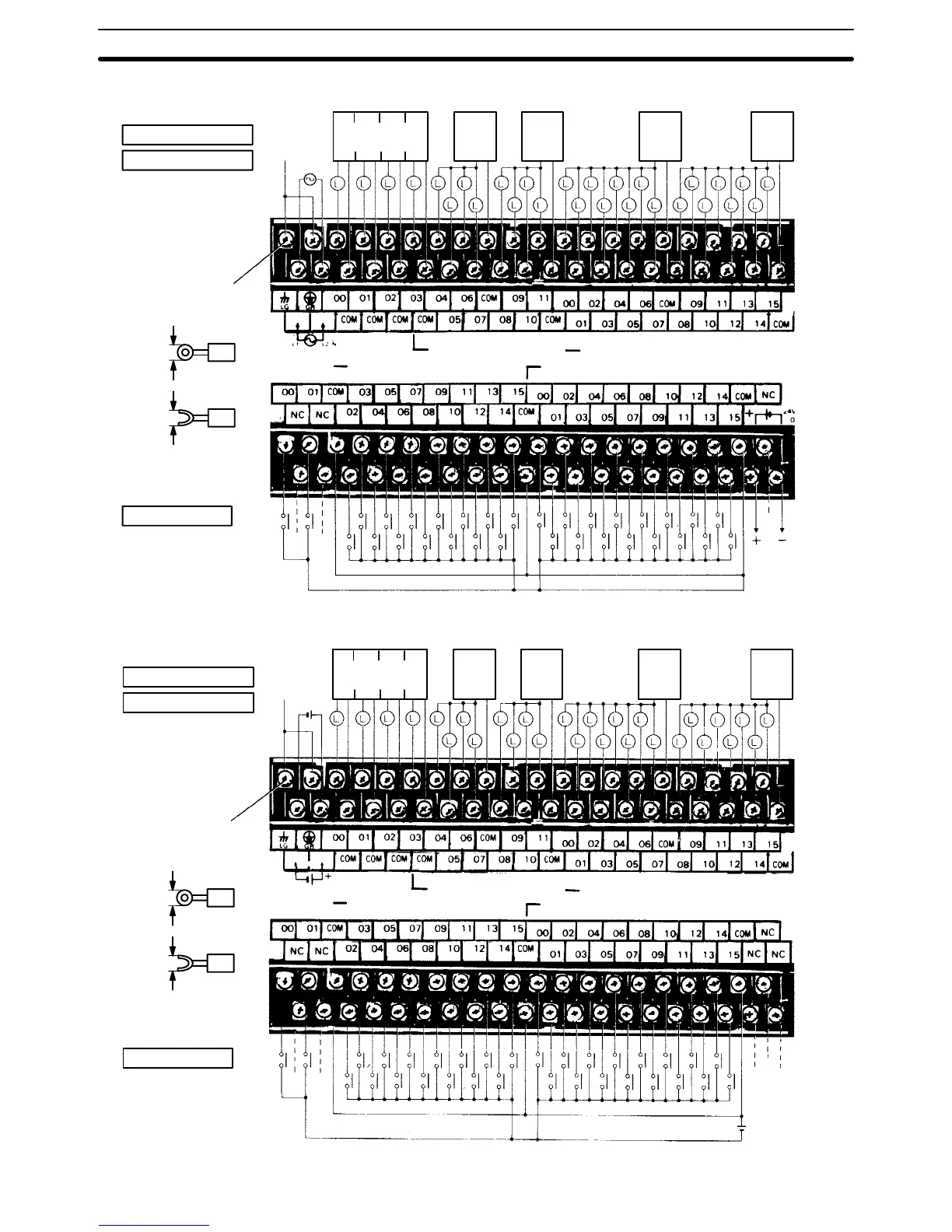

I/O Unit C60P (EA_–A)
Relay contact outputs
Triac outputs
Power
supply
(100 to
240
VAC)
Ground
Upper terminal
block
Lower terminal
block
Inputs (100 VAC)
24_VDC
output
(0.3 A
max.)
M3.5 screws
7.5 max.
7.5 max.
Load
power
supply
Load
power
supply
Load
power
supply
Load
power
supply
Load power
supply
100 240VAC
CH(00 15) CH(00 15)
CH(00 15)
CH(00 11)
INPUT
COM
NC NC
NC
I/O Unit C60P (ED_–D) A separate power supply must be used for the DC inputs.
Relay contact outputs
Transistor outputs
Power
supply
(24
VDC)
Ground
Upper terminal
block
Lower terminal
block
Inputs (24 VDC)
M3.5 screws
7.5 max.
7.5 max.
Load
power
supply
Load
power
supply
Load
power
supply
Load
power
supply
Load power
supply
Load power
supply
100 240VAC
CH(00 15) CH(00 15)
CH(00 15)
CH(00 11)
INPUT
NC NC
NC
NC
NC
