Appendix BSpecifications
67

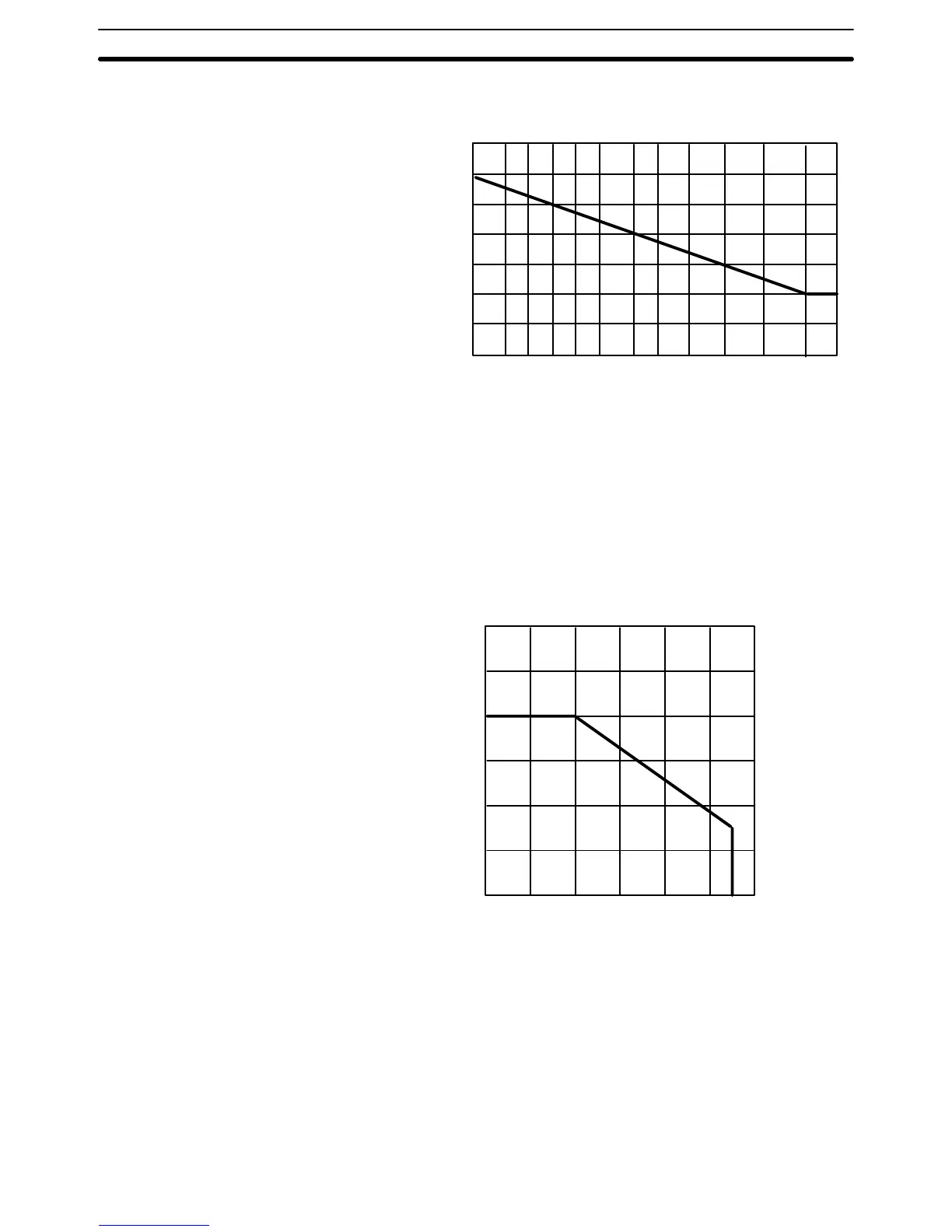

Transistor Inrush
Current
10 30 50 100 200 500 1000 5000
Current–carrying time (ms)
Inrush Current (A)
3
2
1
0
Transistor and Triac
Maximum Load Current
The maximum load current for the four common circuits varies with the ambi-
ent temperature and is 4 to 1.6 A within a range of 20° to 55°C as shown be-
low. Do not exceed the current value indicated in the chart at any given tem-
perature.
Max. total current
of 4 circuits
6
5
4
3
2
1
0
20 40 55
Ambient temperature (
°C)
4 A
1.6 A
Ambient Temperature vs. Total Load Current of Each Common Circuit
