13
3. The
operation of Completion Flags for timers has been changed so that the
Completion Flag for a timer turns ON only when the timer instruction is
executed
with a PV of 0000
and not when the timer
’
s PV is refreshed to a PV
value of 0000, as was previously done.
Only
the timing of the activation of the Completion Flag
has been changed,
and
the
timer
’
s PV is still refreshed at the same times (i.e., when the timer
instruction is executed, at the end of user program execution, and every
80 ms if the cycle time exceeds 80 ms).
4. The
READ(190) (I/O READ) and WRIT(191) (I/O WRITE) instructions have
been improved so that they can be used for Special I/O Units on Slave
Racks under the following conditions.
a) The
lot number of the Remote I/O Master Unit and Remote I/O Slave Unit
must be the same as or latter than the following.

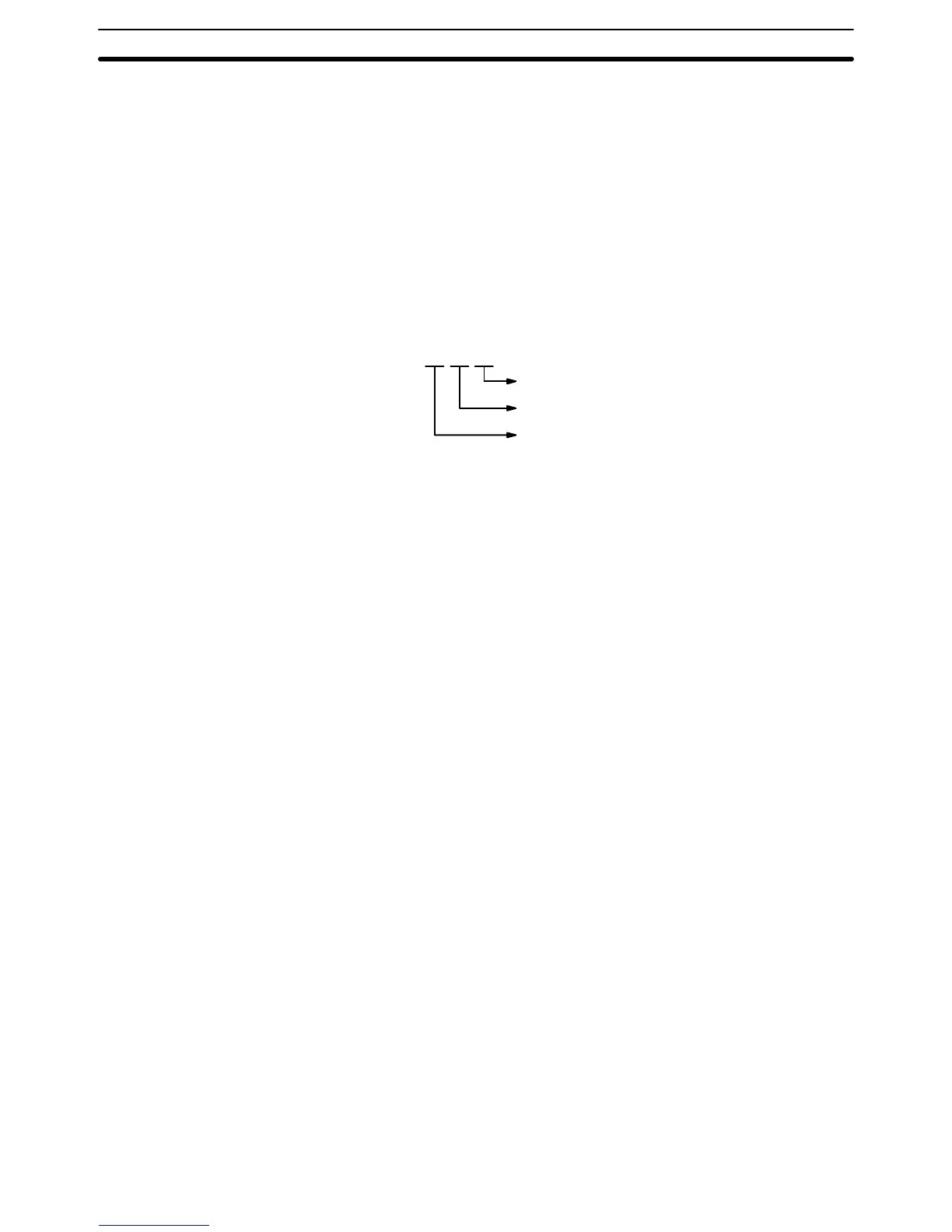

1992
October (Y
: November; Z: December)
1st
01 X 2
b) The DIP switch on the Remote I/O Slave Unit must be set to “54MH.”
c) The Special I/O Unit must be one of the following: AD101, CT012,
CT021,
CT041, ASC04, IDS01-V1, IDS02, IDS21, IDS22, or LDP01-V1.
(The
NC221-E, NC222, CP131, and FZ001 cannot be mounted to Slave
Racks.)
1-9-2 Version-1 CPUs
CV-series CPUs were changed to version 1 from December 1993. The new
model numbers are as follows: CVM1-CPU01-EV1, CVM1-CPU11-EV1,
CV500-CPU-EV1, CV1000-CPU-EV1, and CV2000-CPU-EV1. (Of these, all
CVM1
CPUs were changed to version 2 from December 1994; refer to the next
sections for details.)
The following additions and improvements were made to create the version-1
CPUs.
PT Link Function The
host
link interface on the CPU can be used to connect directly to Program
-
mable
T
erminals (PT
s) to create high-speed data links. T
o use the PT links,
turn
ON
pin 3 of the DIP switch on the CPU. Pin 3 must be turned OFF for host link
connections.
EEPROM Writes With
the new CPUs, you can write to EEPROM Memory Cards mounted to the
CPU
by using the file write operation from a
Peripheral Device. A Memory Card
Writer
is no longer required for this write operation. W
riting is possible in PRO
-
GRAM mode only.
New Command A
new I/O REGISTER command (QQ) has been added so that words from dif
fer-
ent data areas can be read at the same time.
Faster Host Links The
communications response time for the built-in host link interface
on the CPU
has been improved by a factor of approximately 1.2.
Faster Searches The search speed from Peripheral Devices for instructions and operands has
been nearly doubled.
1-9-3 Version-2 CVM1 PCs
CVM1 CPUs were changed to version 2 and a new CPU was added from De-
cember 1994. The new model numbers are as follows: CVM1-CPU01-EV2,
CVM1-CPU11-EV2, and CVM1-CPU21-EV2.
Improved Specifications Section 1-9
