Omron SYSMAC Series - TOP Setup and Configuration; TOP Designer Setup; TOP Serial Setup

13
< TOP Setup >

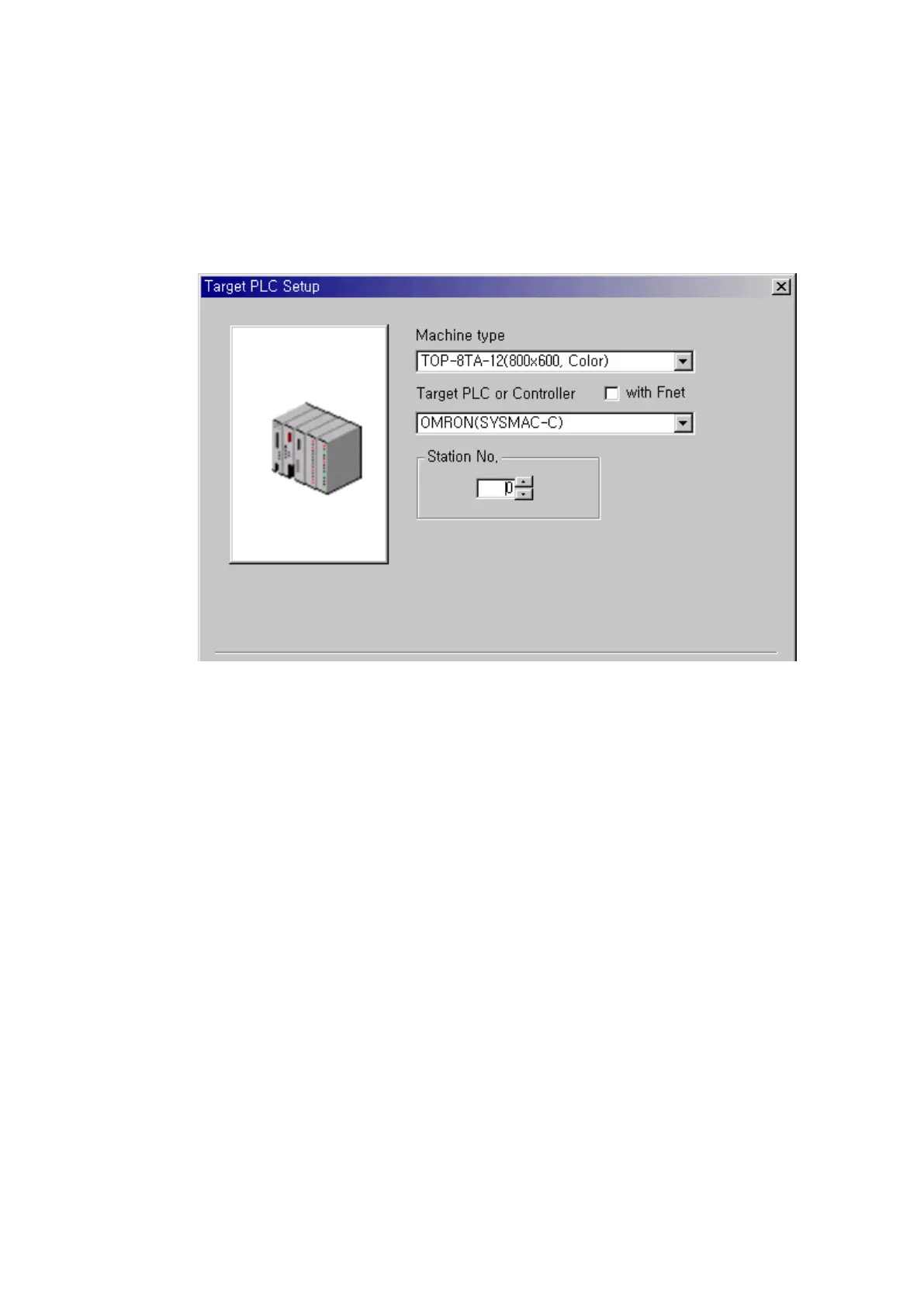

(1) TOP Designer Setup
Select “OMRON(SYSMAC-C)”of “OMRON Series” in PLC Type.
(2) TOP Serial Setup
Serial Settings are as follows.
 Serial Baud Rate : Same as controller‟s setting.
 Serial Data Bit : Same as controller‟s setting.
 Serial Stop Bit : Same as controller‟s setting.
 Serial Parity Bit : Same as controller‟s setting.
 Serial Signal Level : Same as controller‟s setting.
 Controller‟s Station No. at Comm. Diagnosis(0~31)
: Same as controller‟s setting
