General-purpose Basic Switch Z F-159
Limit
Switches

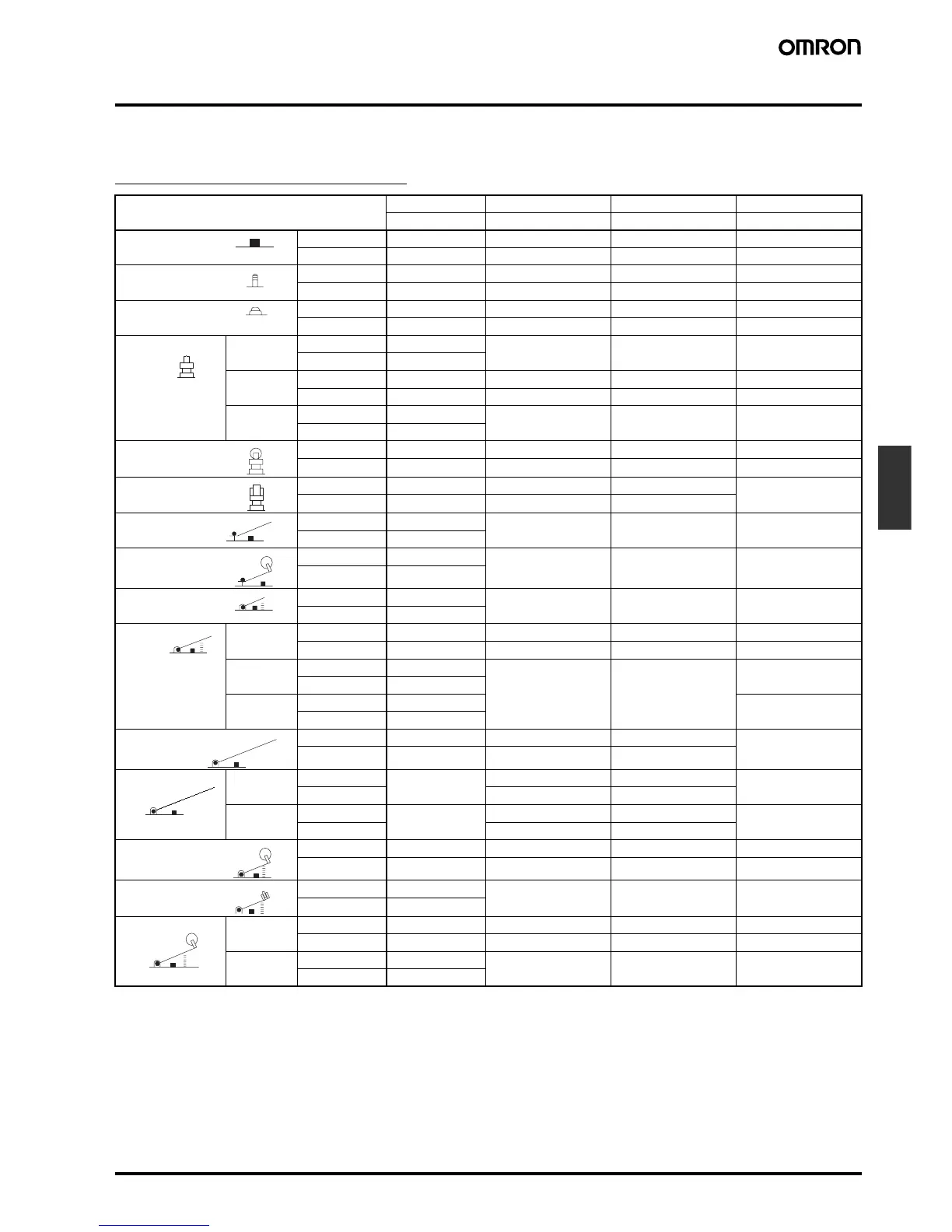

Ordering Information
■ List of Models
Basic Models (General-purpose)
Actuator Standard High-sensitivity High-capacity Micro load
G (0.5 mm) H (0.25 mm) E (1.8 mm) H (0.25 mm)
Solder terminal Z-15G Z-15H Z-15E Z-01H
Screw terminal Z-15G-B Z-15H-B Z-15E-B Z-01H-B
Solder terminal Z-15GS Z-15HS --- Z-01HS
Screw terminal Z-15GS-B Z-15HS-B --- Z-01HS-B
Solder terminal Z-15GD Z-15HD Z-15ED Z-01HD
Screw terminal Z-15GD-B Z-15HD-B Z-15ED-B Z-01HD-B
Low OP Solder terminal Z-15GQ3 --- --- ---
Screw terminal Z-15GQ3-B
Medium OP Solder terminal Z-15GQ Z-15HQ Z-15EQ Z-01HQ
Screw terminal Z-15GQ-B Z-15HQ-B Z-15EQ-B Z-01HQ-B
High OP Solder terminal Z-15GQ8 --- --- ---
Screw terminal Z-15GQ8-B
Solder terminal Z-15GQ22 Z-15HQ22 Z-15EQ22 ---
Screw terminal Z-15GQ22-B Z-15HQ22-B Z-15EQ22-B ---
Solder terminal Z-15GQ21 Z-15HQ21 Z-15EQ21 ---
Screw terminal Z-15GQ21-B Z-15HQ21-B Z-15EQ21-B
Solder terminal Z-15GL --- --- ---
Screw terminal Z-15GL-B
Solder terminal Z-15GL2 --- --- ---
Screw terminal Z-15GL2-B
Solder terminal Z-15GW21 --- --- ---
Screw terminal Z-15GW21-B
Low OF Solder terminal Z-15GW Z-15HW --- ---
Screw terminal Z-15GW-B Z-15HW-B --- ---
Medium OF Solder terminal Z-15GW3 --- --- ---
Screw terminal Z-15GW3-B
High OF Solder terminal Z-15GW32 ---
Screw terminal Z-15GW32-B
Solder terminal Z-15GW4 Z-15HW24 --- ---
Screw terminal Z-15GW4-B Z-15HW24-B ---
Low OF Solder terminal --- Z-15HW78 --- ---
Screw terminal Z-15HW78-B ---
High OF Solder terminal --- Z-15HW52 --- ---
Screw terminal Z-15HW52-B ---
Solder terminal Z-15GW22 Z-15HW22 Z-15EW22 Z-01HW22
Screw terminal Z-15GW22-B Z-15HW22-B Z-15EW22-B Z-01HW22-B
Solder terminal Z-15GW49 --- --- ---
Screw terminal Z-15GW49-B
Parallel Solder terminal Z-15GW2 Z-15HW2 --- ---
Screw terminal Z-15GW2-B Z-15HW2-B --- ---
Large roller Solder terminal Z-15GW25 --- --- ---
Screw terminal Z-15GW25-B
Pin plunger
Slim spring plunger
Short spring
plunger
Panel mount
plunger
Panel mount roller
plunger
Panel mount cross
roller plunger
Leaf spring
Roller leaf spring
Short hinge lever
Hinge lever
Low-force hinge lever
Low-force wire
hinge lever
Short hinge roller lever
Short hinge cross
roller lever
Hinge roller lever
