(3) 10, 1, 0.1 Buttons
These buttons are used to adjust laser’s power in increments of 10%, 1%, and % respectively. As
expected, + increases the power by the appropriate increment. – decreases the power by the appropriate
increment.
(4) Laser Power Display
This displays the current power of the laser as a percent of its maximum intensity. Adjust this setting
according to the material being processed. For most materials, an intensity between 20% and 60% is
optimal. When aligning the laser beam, you should use a setting lower than 30% for safety reasons.

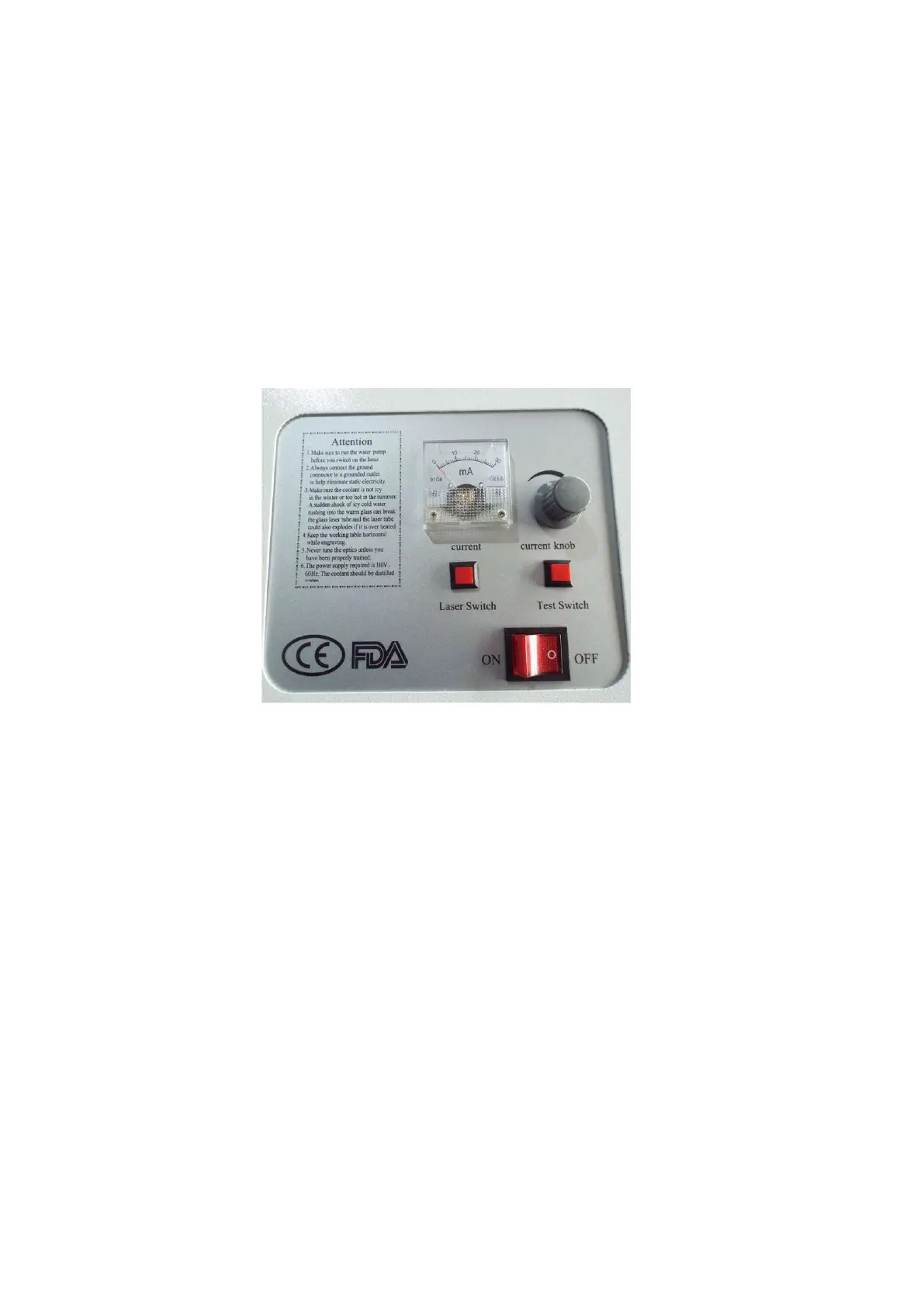

Fig. 3–2. A Type-B control panel.
Type-B Control Panel: This control panel features an analog power display, showing the strength of
the laser as a reading in milliamperes (mA). The laser’s power is djusted by turning the current knob.
(1) On/Off Switch
This switch is the main power switch. When switched to ON, the laser will move to the top left corner.
(2) Laser Switch
This button is the master control for the laser. Press it down to activate the laser.
