Chapter 1: Overview

1.1 Appearance (Varies slightly by model)

From left to right, the front and top of the laser engraver includes the main bay and the control panel.

(See 3.1 for details & variants).

From left to right, the back of the laser engraver includes the connection port for the power cord, the

terminal for the engraver’s electrical grounding (See 2.4), the exhaust fan (See 2.3), and the water tubes

for the cooling system (See 2.2).

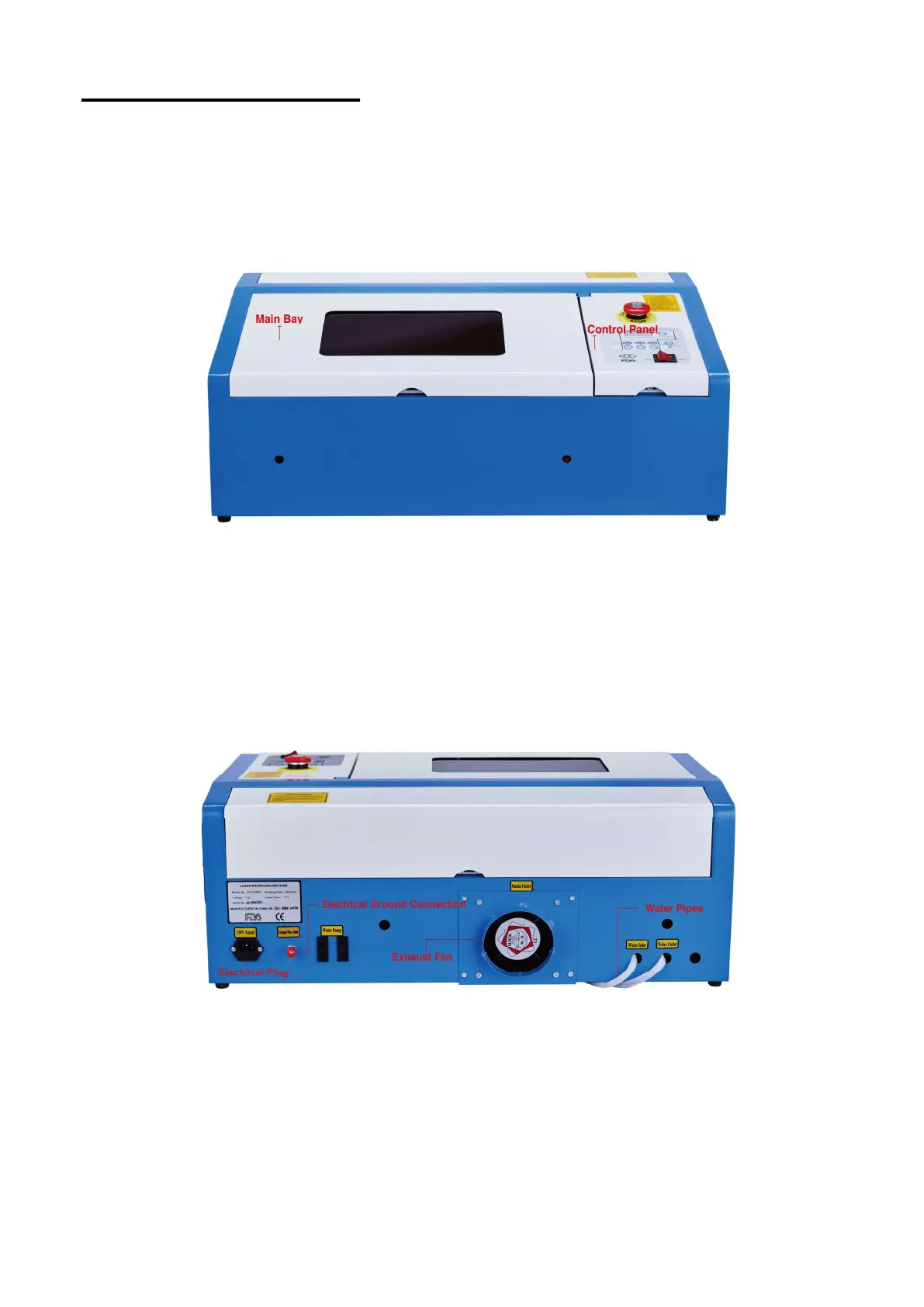

Fig. 1–1. Front & top sides (exterior).

Fig. 1–2. Back side (exterior).
