on stage LPT6000 - Table Top Assembly; Table C-Clamp Assembly; DJ Coffin C-Clamp Assembly

© 2008 TMP, Inc.
www.musicpeopleinc.com
www.onstagestands.com
®
ASSEMBLY INSTRUCTIONS (continued)
LPT6000
Table Top Assembly
1. Attach flat foot bar to Lower Support with
four (4) A-screws and washers (see Figure C).
2. Repeat above with the other Lower Support
for the opposite side of the stand.
Table C-Clamp Assembly
1. Turn clamp with knobs facing down and
attach to Lower Support with two (2) B-screws
and B-washers (see Figure D).
2. Repeat above with the other Lower Support
for the opposite side of the stand.
DJ Coffin C-Clamp Assembly
1. Turn clamp with knobs facing back of stand and
attach to Lower Support with two (2) B-screws
and B-washers (see Figure E).
2. Repeat above with the other Lower Support for
the opposite side of the stand.

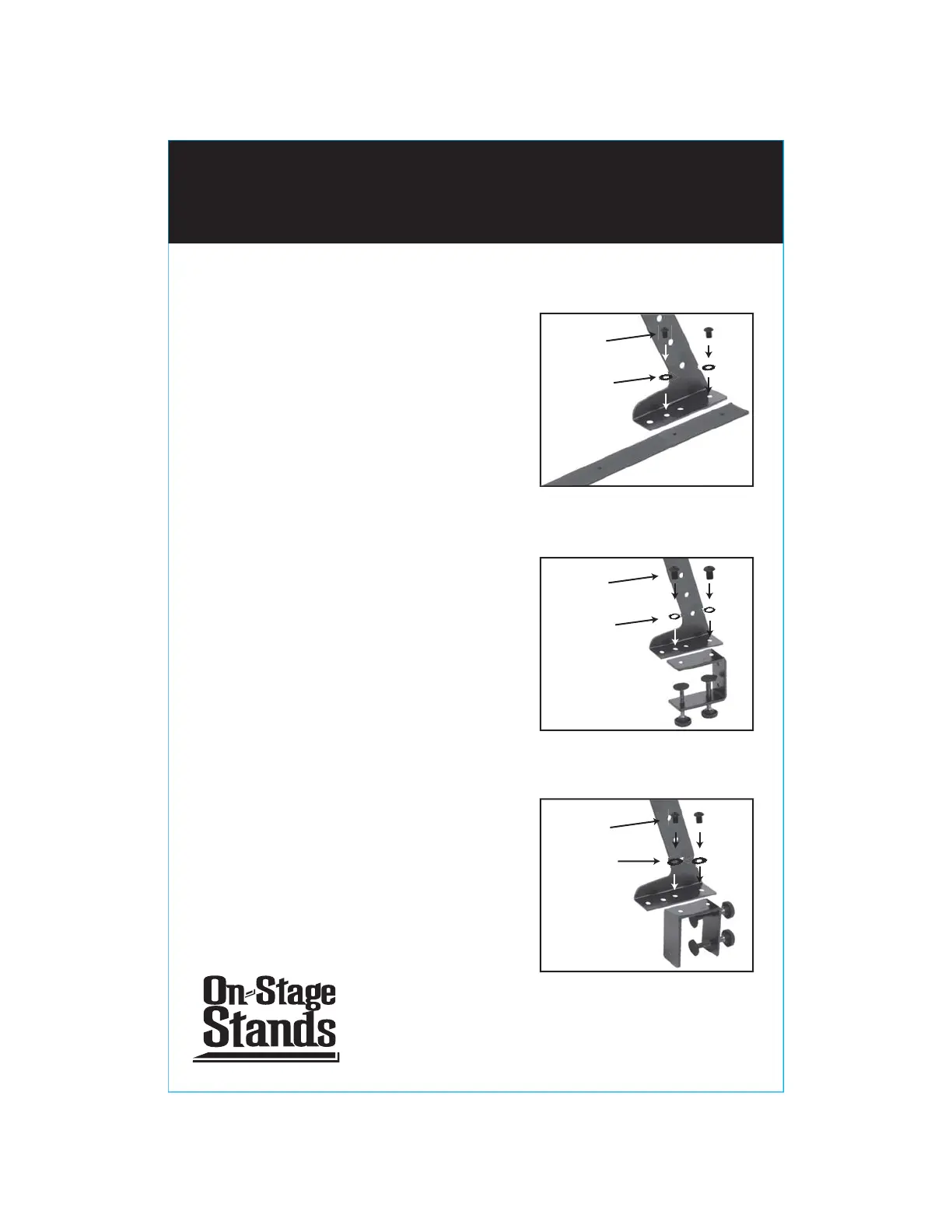

Figure C
Figure D
Figure E
A-Washer
A-Screw
B-Washer
B-Screw
B-Washer
B-Screw
