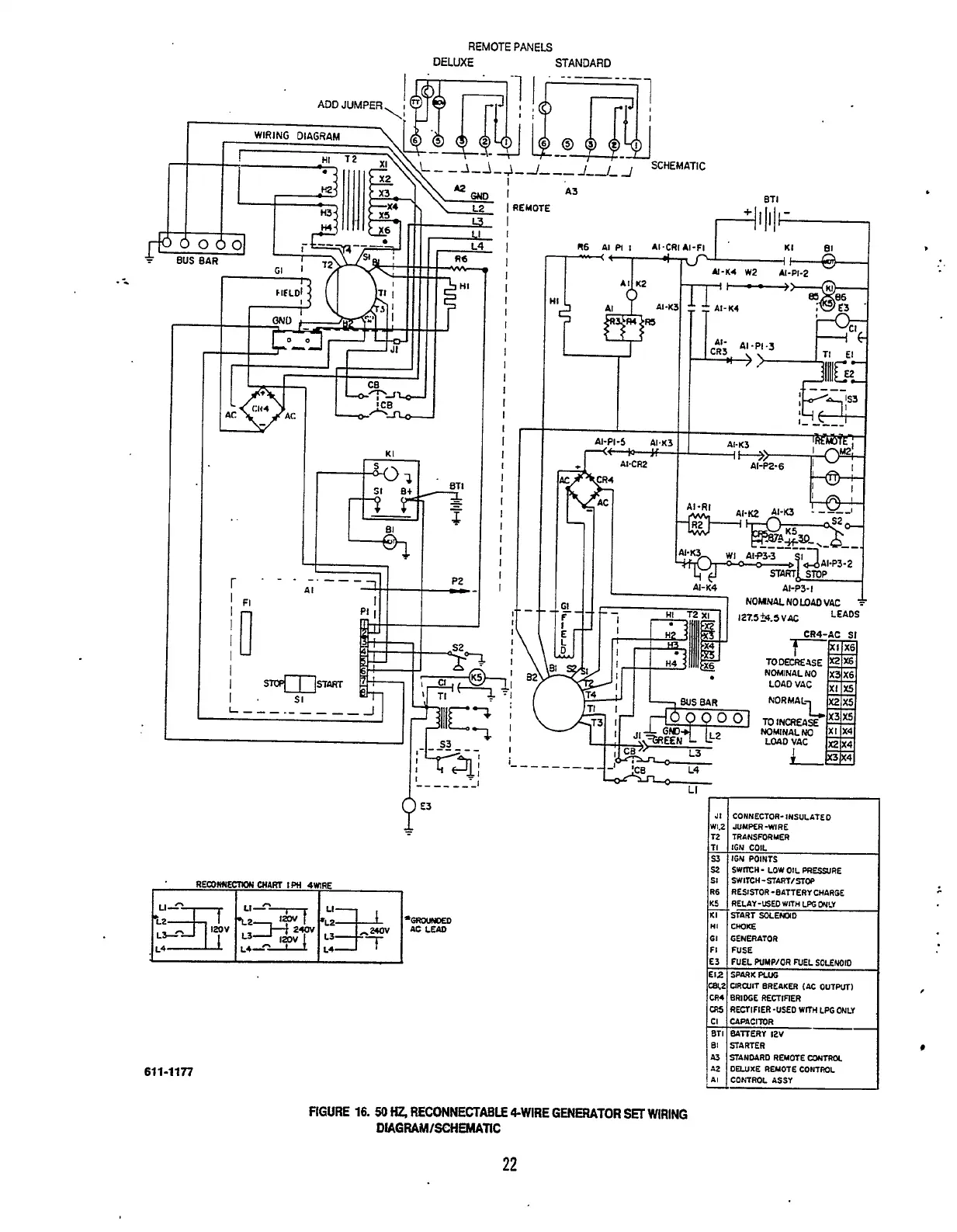

Onan BGE - Page 24

REMOTE PANELS
DELUXE STANDARD
‘CROUHKD
Ac LEAD
W1.2 JUMPER-WIRE
T2 TRANSFORMER
TI IGN COIL
U IGN POINTS
SZ SWITCH- LOW OIL PRESSURE
SI SWITCH-STMISTOP
R6 RESISTOR-BATTERY CHARGE
KS RELAY-USE0 WITH Lffi WLY
KI STARTSOLEWD
HI CHOKE
GI GENERATOR
FI
FUSE
E3 FUEL PUMP/OR FUEL SOLENOID
E12 SPARKPWG
fB.2 WRWlT BREAKER (AC OUTPUT)
CR4 BRIDGE RECTIFIER
CRS RECTIFIER -USED WITH LPG ONLY
CI CAPACITOR
BTI
EATERY 12V
A3 STANDARD REMOTE CONTROL
A2 DUX€ REYOTE CONTROL
AI CONTROL ASSY
,
_I
e1 STARTER
611-1177
..
