Onan CCK Series Operator's Manual And Parts Catalog

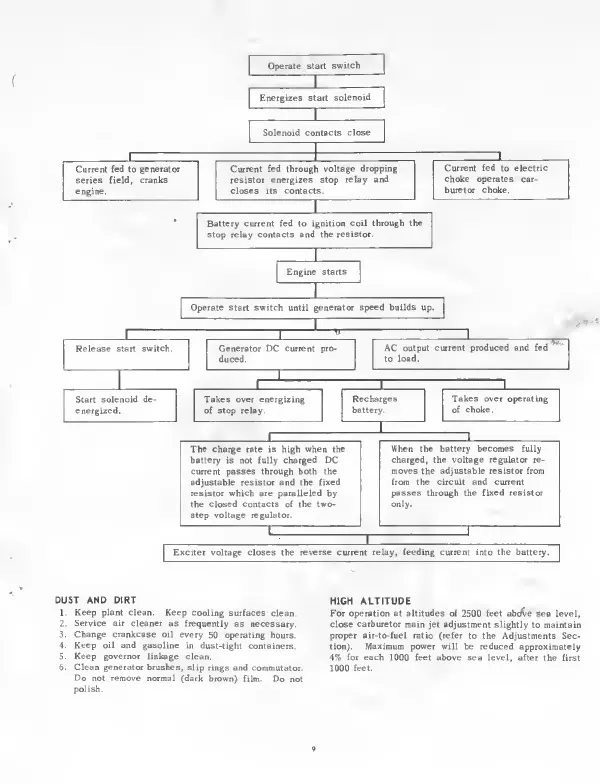

operate start switch
Energizes start solenoid
Solenoid contacts close
Current fed to generator Current fed through voltage dropping
Current
fed to electric
series field, cranks
resistor energizes stop relay and
choke operates car-
engine.
closes its contacts.
buretor choke.
I
Battery current fed to ignition coil through the
stop relay contacts and the resistor.
Engine starts
I Operate start switch until generator speed builds up.
Release start switch.
j
Generator DC current pro¬
duced.
AC output current produced and fed
to load.
1 ■ ‘ J_ 1^:_ j _
Start solenoid de- Takes over energizing
Recharges Takes over operating
energized. of stop relay.
battery.
of choke.
1
The charge rate is high when the When the battery becomes fully
battery is not fully charged DC
charged, the voltage regulator re-
current passes through both the
moves the adjustable resistor from
adjustable resistor and the fixed
from the circuit and current
resistor which are paralleled by
passes through the fixed resistor
the closed contacts of the two-
step voltage regulator.
only.
1
^ L
1 Exciter voltage closes the reverse current relay, feeding current into the battery.
DUST AND DIRT
1. Keep plant clean. Keep cooling surfaces clean.
2. Service air cleaner as frequently as necessary.
3. Change crankcase oil every 50 operating hours.
4. Keep oil and gasoline in dust-tight containers.
5. Keep governor linkage clean.
6. Clean generator brushes, slip rings and commutator.
Do not remove normal (dark brown) film. Do not
polish.
HIGH ALTITUDE
For operation at altitudes of 2500 feet abc^e sea level,
close carburetor main jet adjustment slightly to maintain
proper air-to-fuel ratio (refer to the Adjustments Sec¬
tion). Maximum power will be reduced approximately
4% for each 1000 feet above sea level, after the first
1000 feet.
