Onan CCK Series Operator's Manual And Parts Catalog

30rpm for a 4 pole generator). If the rise in frequency
is more than 2 hertz, lessen the internal spring tension.
If there is a drop in the frequency, increase the booster
internal sprite tension. To increase the tension, pull
out on the spring bracket and more the pin to a different
hole.
With the booster disconnected, a maximum drop of
3 hertz from no load to full load is normal. With the
booster in operation, a maximum increase of 2 hertz
from no load to full load is normal. A drop of 1 hertz
at 1/4 load is permissible, giving an overall spread
of 3hertz, maximum.
The effect of the booster is limited by the general
condition of the engine. The booster cannot compen¬
sate for a loss in engine vacuum caused by leaky
valves, worn piston rings, etc.

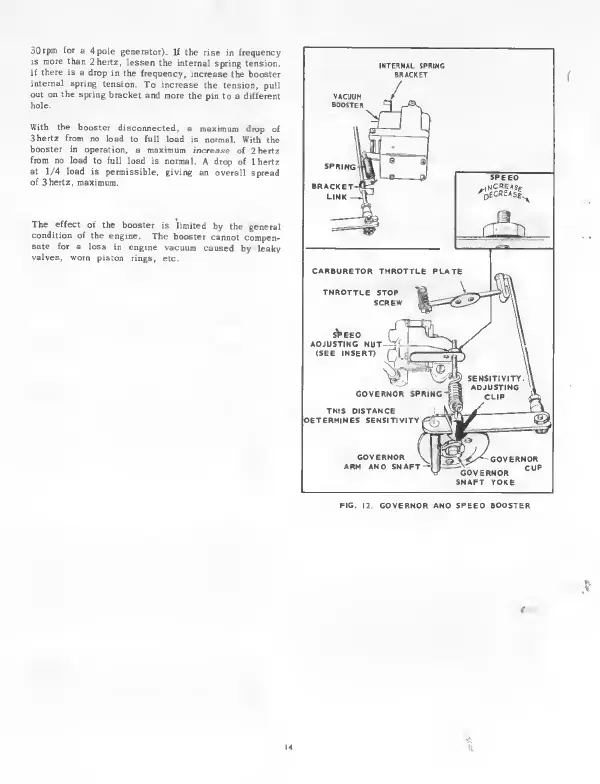

FIG. 12. GOVERNOR AND SPEED BOOSTER

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
