Onan CCK Series Operator's Manual And Parts Catalog

This catalog applies to the standard CCK Mobile Plants as listed below. Parts are arranged in groups of related
items. Each illustrated part is identified by a reference number corresponding to the same reference number below
the illustration. Parts illustrations are typical. Using the Model and Spec No. from the plant nameplate, select
the Parts Key No. (1, 2, etc. in the last column) that applies to your plant Model and Spec No. This Parts Key
No. represents parts that differ between models. Unless otherwise mentioned in the description, parts are inter¬
changeable between models. Right and left plant sides are determined by facing the engine end (front)(rf the plant.

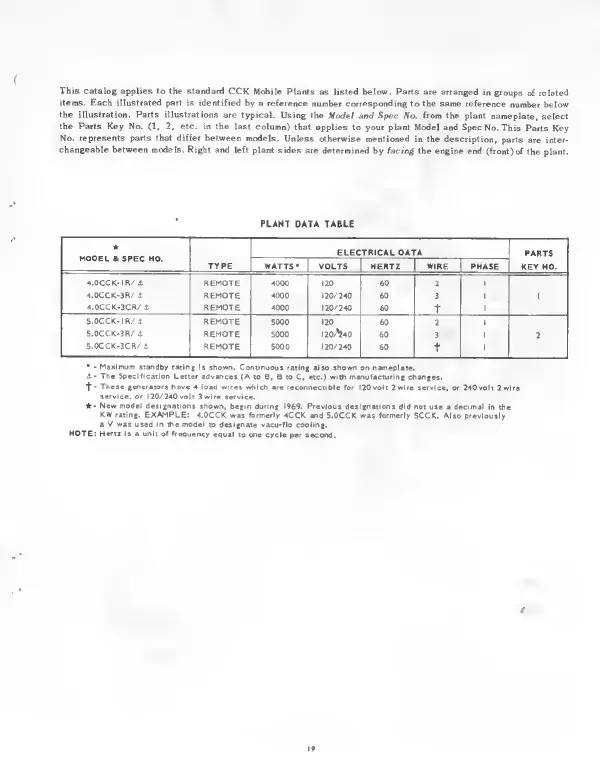

PLANT DATA TABLE
ELECTRICAL DATA
WATTS* WIRE PHASE
4.0CCK-IR/1
REMOTE 4000 120 60 1
4.0CCK-3R/ 1 REMOTE 4000
120/240
60
1
1
4.0CCK-3CR/' t REMOTE
4000 120/240 60
t
1
5.0CCK-IR/4
REMOTE
sooo 120
60 2 1
5.0CCK-3R/ i
REMOTE sooo l20/^f40 60
3
1
2
5.0CCK-3CR/ i
REMOTE sooo 120/240 60
t
1
* • Maximum standby ratint is shown. Continuous rating also shown on nameplate.
1- The Specification Letter advances (A to B, B to C. etc.) with manufacturing changes,
f - These generators have 4 load wires which are reconnectible for 120 volt 2wlre service, or 240 volt 2wlre
service, or 120/240volt 3wire service.
*- New model designations shown, begin during 1969. Previous designations did net use a decimal in the
KW rating. EXAMPLE: 4.0CCK was formerly 4CCK and 5.0CCK was formerly 5CCK. Also previously
a V was used in the model to designate vaeu-flo cooling.
NOTE: Harts is a unit of frequency equal to orw cycle per second.

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
