Onan CCK Series Operator's Manual And Parts Catalog

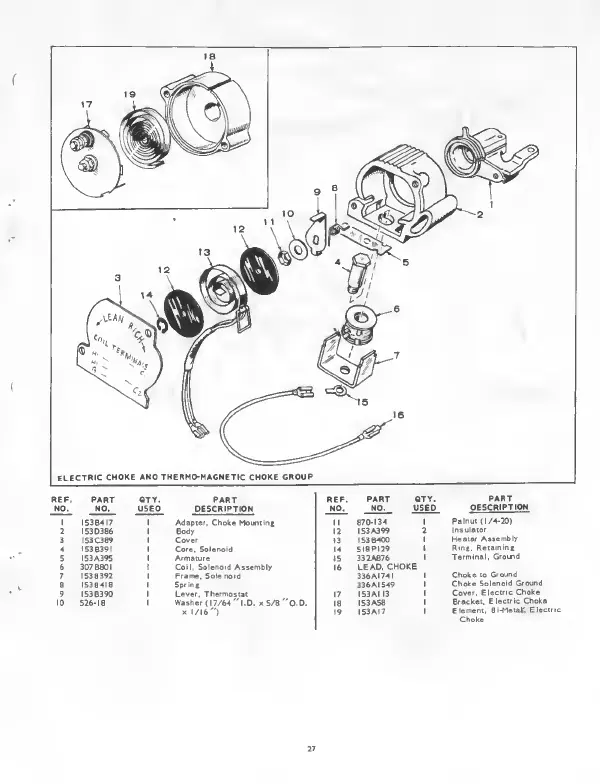

REF. PART QTY. PART
NO. NO. USED DESCRIPTION
1 IS364I7 I Adapter. Choke Mounting
2 IS30386 I Body
3 IS3C389 I Cover
d IS3B39I I Core. Solenoid
5 I53A395 I Armature
6 307 B80I I Coil. Solenoid Assembly
7 I53B392 I Frame. Solerteid
a ISSBdia I Spring
9 I53B390 I Lever. Thermostat
10 526-18 I Washer {l7/64"l.O. X S/8"O.D
X 1/16")
870-13^
IS3A399
I53BAOO
SI8PI29
332AB76
LEAD. CHOKE
336AI74I
336AI5d9
IS3AI 13
I53>^
IS3AI7
Palnut (l/A-20)
Insulator
Heater Assembly
Ring, Retaining
Terminal, Grotnd
Choke to Ground
Choke Solenoid Ground
Cover, Electric Choke
Bracket. Electric Choke
Element, Bi-Metai', Eiectr
Choke
27

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
