Onan CCK Series Operator's Manual And Parts Catalog

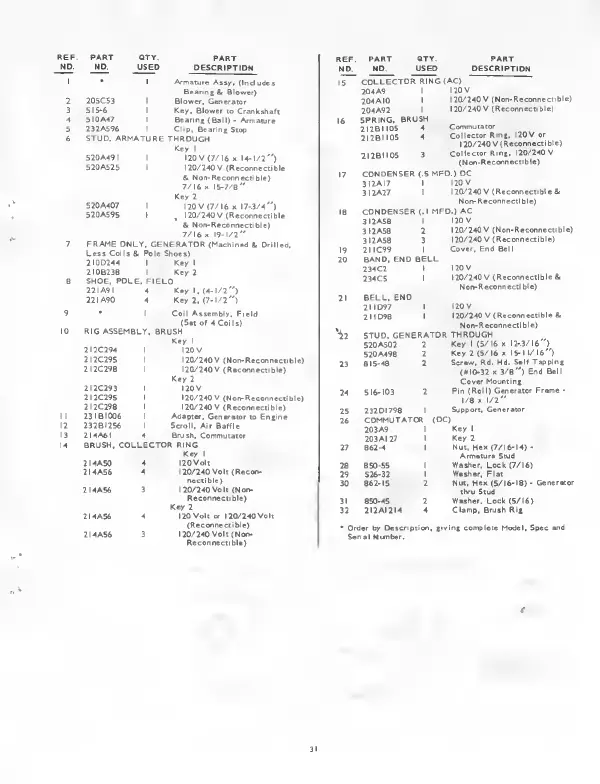

REF. PART QTY. PART
NO. NO. USED OESCRIPTtOH
1 * I Armature Assy. (Indudes
Bearing & Blower)
2 20SC53 I Blower. Generator
3 5IS-6 I Key. Blower to Crankshaft
4 5I0A47 I Bearing (Ball) • Armature
5 232A596 I Clip, Bearing Stop
6 STUD. ARMATURE THROUGH
Key I
520A49I I 120 V (7/16 X 14-1/2")
520AS25 I I20/240V (Reconnectible
& Non-Reconnectible)
7/16 X 15-7/8"
Key 2
S20A407 I 120 V (7/16 X I7-.3/4")
520AS95 I , I20/240V (Reconnectible
& Nort-Reconnectible)
7/16 X 19-1/2"
7 FRAME ONLY. GENERATOR (Machined & Drilled,
Less Cells & Pole Shoes)
2I0D244 I Key I
2I0B238 I Key 2
8 SHOE. POLE. FIELD
22IA9I 4 Key I. (4-1/2")
22I.A90 4 Key 2. (7-1/2")
9 * I Coil Assembly. Field
(Set of 4 Ceils)
10 RIG ASSEMBLY. BRUSH
Key I
2I2C294 I 120V
212C295 I I20/240V (Non-Reeonneetible)
2I2C296 I I2a/240V (Reconnectible)
Key 2
2I2C293 I 120V
2I2C29S I I20/240V (Nof^Reeonnectible)
2I2C298 I I20/240V (Reconnectible)
11 23IBI006 I Adapter. Generaar to Engine
12 232BI2S6 I Scroll. Air Baffle
13 2I4A6I 4 Brush. Commutator
14 BRUSH. COLLECTOR RING
Key I
2I4AS0 4 t20Volt
2I4AS6 4 l 20/240Volt (Recoiv
nectible)
2I4AS6 3 l20/240Volt (Non-
Reeonrtectible)
Key 2
2I4A56 4 120Volt or 120^240Volt
(ReconnectibI e)
2I4A56 3 120/240 Volt (Norv-
Reconnectible)
REF
PART QTY. PART
NO.
NO. USED
DESCRIPTION
IS
COLLECTOR RING (AC)
204A9
1
120 V
204AI0
1
120/240 V (Non-Reconnectible)
204A92
1
I20/240V (Reconnectible)
16
SPRING. BRUSH
2I2BI IDS
Commutator
2I2BI105
4
Collector Ring, 120V or
120/240 V (Reconnect i b 1 e)
2I2BII0S
3
Collector Ring, I20/240V
(Non-Reconnectible)
17
CONDENSER (.5 MFD.) DC
3I2AI7
1
120 V
3I2A27
1
120/240 V (Reconnectible &
Non-Reconnectible)
18
CONDENSER (.1 MFD.) AC
3I2AS8
1
120 V
3I2AS8 2
I2O/240V (Non-Reconnectible)
3I2A58 3
I20/240V (Reconnectible)
19
21IC99
1 Cover, End Bel
20
BAND. END
BELL
234C2
1
120 V
234C5
1
1 20/240 V (Reconnectible &
Non-Reconn ecti ble)
21
BELL. END
211097
1
120 V
21ID98
I 120/240 V (Reconnectible &
Non-Reconnectible)
^^2
STUD.GENERATOR THROUGH
S20A502
2
Key 1 (5/16 x I2-.3/I6 )
520A498
2
Key 2 (5/16 x 15-11/16")
23
8IS-48
2
Screw, Rd. Hd. Self Tapping
(#10-32 K 3/B") End Bell
Cover Mounting
24 516-103
2
Pin (Roll) Generator Frame •
1/8 X 1/2"
25
23201798
1 Support, Generator
26
COMMUTATOR (DC)
203A9
1
Key 1
203 A127
1 Key 2
27 862-4
1
Nut, Hex (7/16-14) -
Armature Stud
28
850-55
1
Washer, Lock (7/16)
29 526-32
1
Washer. Flat
30 862-15
2
Nut. Hex (5/16-18) - Generator
thru Stud
31 850-45
2
Washer. Lock (5/16)
32
2I2AI2I4 4
Clamp, Brush Rig
1 * Order by Description, giv ng complete Model, Spec and
t

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
