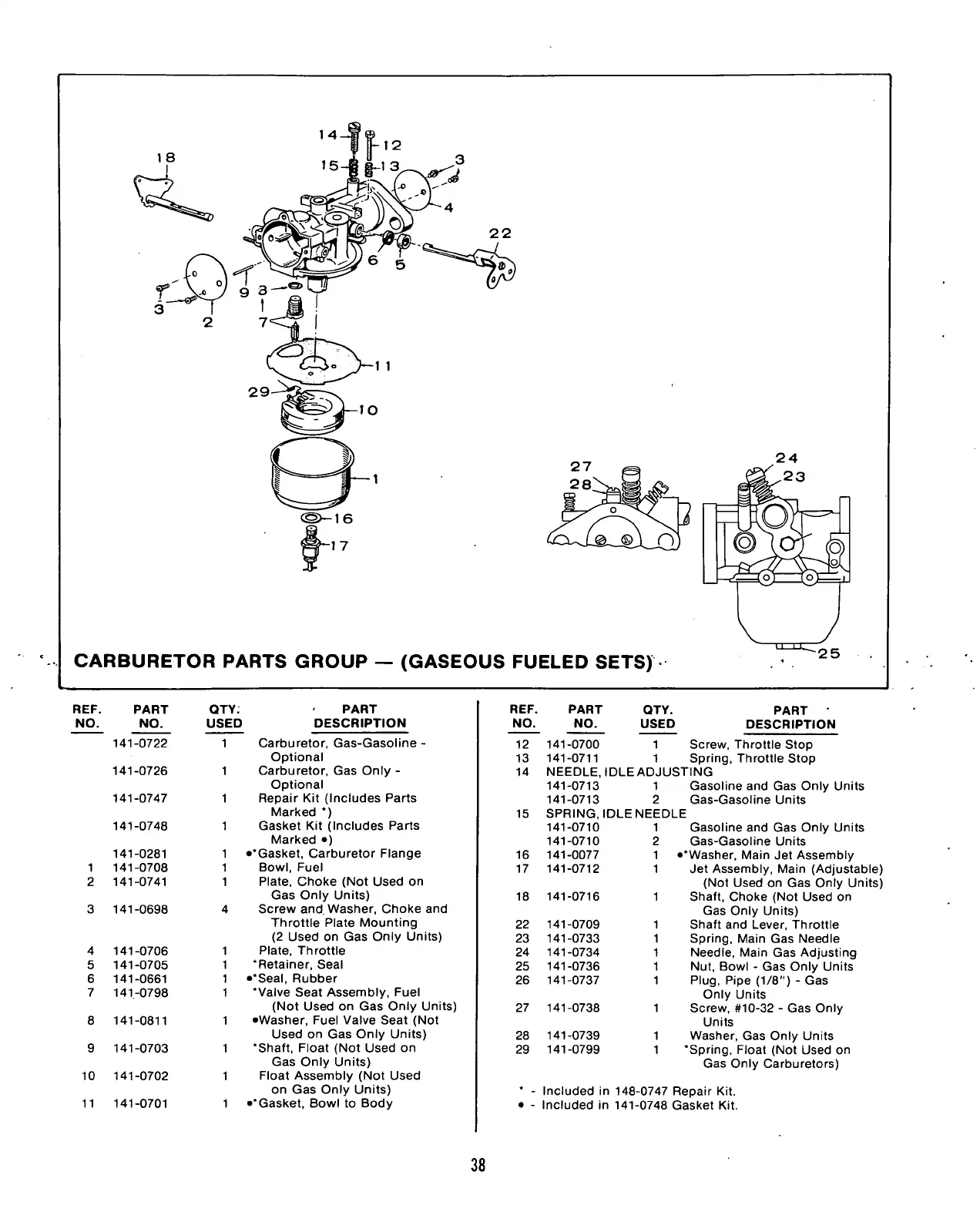

CARBURETOR PARTS GROUP — (GASEOUS FUELED SETS)
^25
REF.
PART
QTY: PART REF.
PART
QTY.
PART •
NO.
NO.
USED DESCRIPTION NO. NO.
USED
DESCRIPTION
141-0722 1 Carburetor, Gas-Gasoline -
12 141-0700
1 Screw, Throttle Stop
Optional
13 141-0711 1
Spring, Throttle Stop
141-0726 1 Carburetor, Gas Only -
14
NEEDLE, IDLE ADJUSTING
Optional
141-0713
1
Gasoline and Gas Only Units
141-0747 1 Repair Kit (Includes Parts
141-0713
2
Gas-Gasoline Units
Marked *)
15 SPRING, IDLE NEEDLE
141-0748 1 Gasket Kit (Includes Parts
Marked •)
141-0710
141-0710
1
2
Gasoline and Gas Only Units
Gas-Gasoline Units
141-0281
1 •'Gasket, Carburetor Flange
16
141-0077
1 •"Washer, Main Jet Assembly
1 141-0708 1 Bowl, Fuel
17 141-0712
1
Jet Assembly, Main (Adjustable)
2 141-0741 1 Plate, Choke (Not Used on
(Not Used on Gas Only Units)
Gas Only Units) 18
141-0716
1
Shaft, Choke (Not Used on
3 141-0698 4 Screw and. Washer, Choke and
Gas Only Units)
Throttle Plate Mounting
22
141-0709 1 Shaft and Lever, Throttle
(2 Used on Gas Only Units)
23 141-0733 1 Spring, Main Gas Needle
4 141-0706 1 Plate, Throttle 24
141-0734
1
Needle, Main Gas Adjusting
5 141-0705 1 •Retainer, Seal
25 141-0736
1
Nut, Bowl - Gas Only Units
6 141-0661 1 •*Seal, Rubber
26 141-0737 1
Plug, Pipe (1/8") - Gas
7 141-0798 1 •Valve Seat Assembly, Fuel
Only Units
(Not Used on Gas Only Units)
27 141-0738
1 Screw, #10-32 - Gas Only
8 141-0811 1 •Washer, Fuel Valve Seat (Not
Units
Used on Gas Only Units)
28 141-0739 1
Washer, Gas Only Units
9 141-0703 1 •Shaft, Float (Not Used on
Gas Only Units)
29 141-0799 1
"Spring, Float (Not Used on
Gas Only Carburetors)
10 141-0702 1 Float Assembly (Not Used
on Gas Only Units)
* .
Included in 148-0747 Repair Kit.
11 141-0701 1 •"Gasket, Bowl to Body
• -
Included in 141-0748 Gasket Kit.
